All diagrams for this model

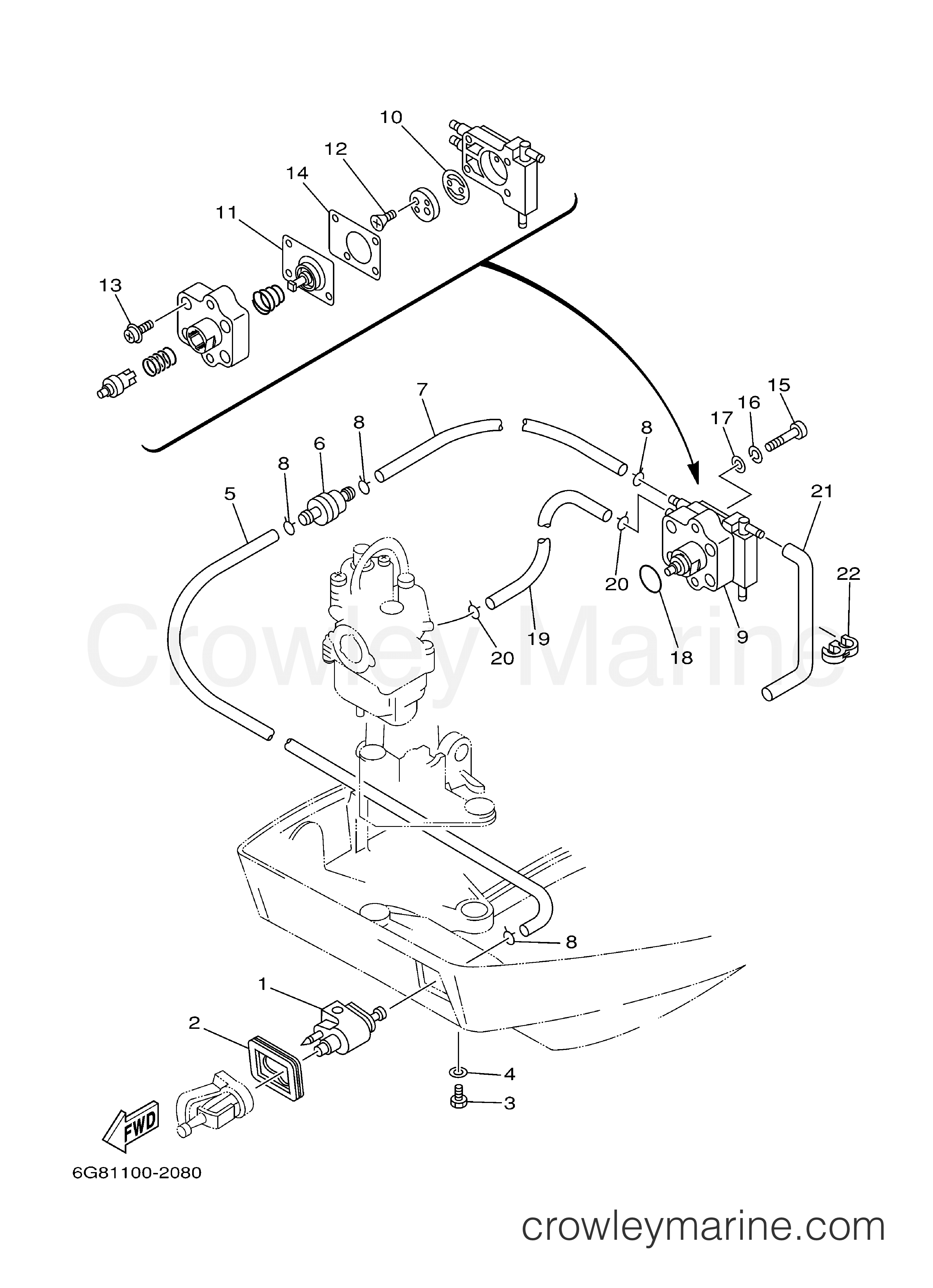

2003 Outboard 9.9hp - T9.9ELRB FUEL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T9.9ELRB - FUEL 1
Change View:
Seal
2
Yamaha Motors
Seal6G8-24329-00-00
Required: 1
SEAL
Cross Ship
Leaves in 2-5 days
$13.60
$11.56
You save $2.04
More details
Fuel Pipe
5
Yamaha Motors
Fuel Pipe6G8-24311-00-00
Required: 1
PIPE, FUEL 1
Cross Ship
Leaves in 2-5 days
$15.20
$12.92
You save $2.28
More details
Flat Head Screw
12
Yamaha Motors
Flat Head Screw98780-03008-00
Required: 2
.SCREW, FLAT HEAD
Cross Ship
Leaves in 2-5 days
$5.65
$4.80
You save $0.85
More details
.SCREW, PAN HEAD WITH WASHER
13
Yamaha Motors
.SCREW, PAN HEAD WITH WASHER97603-04218-00
Required: 4
.SCREW, PAN HEAD WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.75
$2.34
You save $0.41
More details
Diaphragm
14
Yamaha Motors
Diaphragm6G8-24471-00-00
Required: 1
.DIAPHRAGM
Cross Ship
Leaves in 2-5 days
$30.05
$25.54
You save $4.51
More details
Clamp
22
Yamaha Motors
Clamp90464-09M21-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$4.05
$3.44
You save $0.61
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
