2003 Outboard 2hp - F2.5MSHB CRANKSHAFT PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

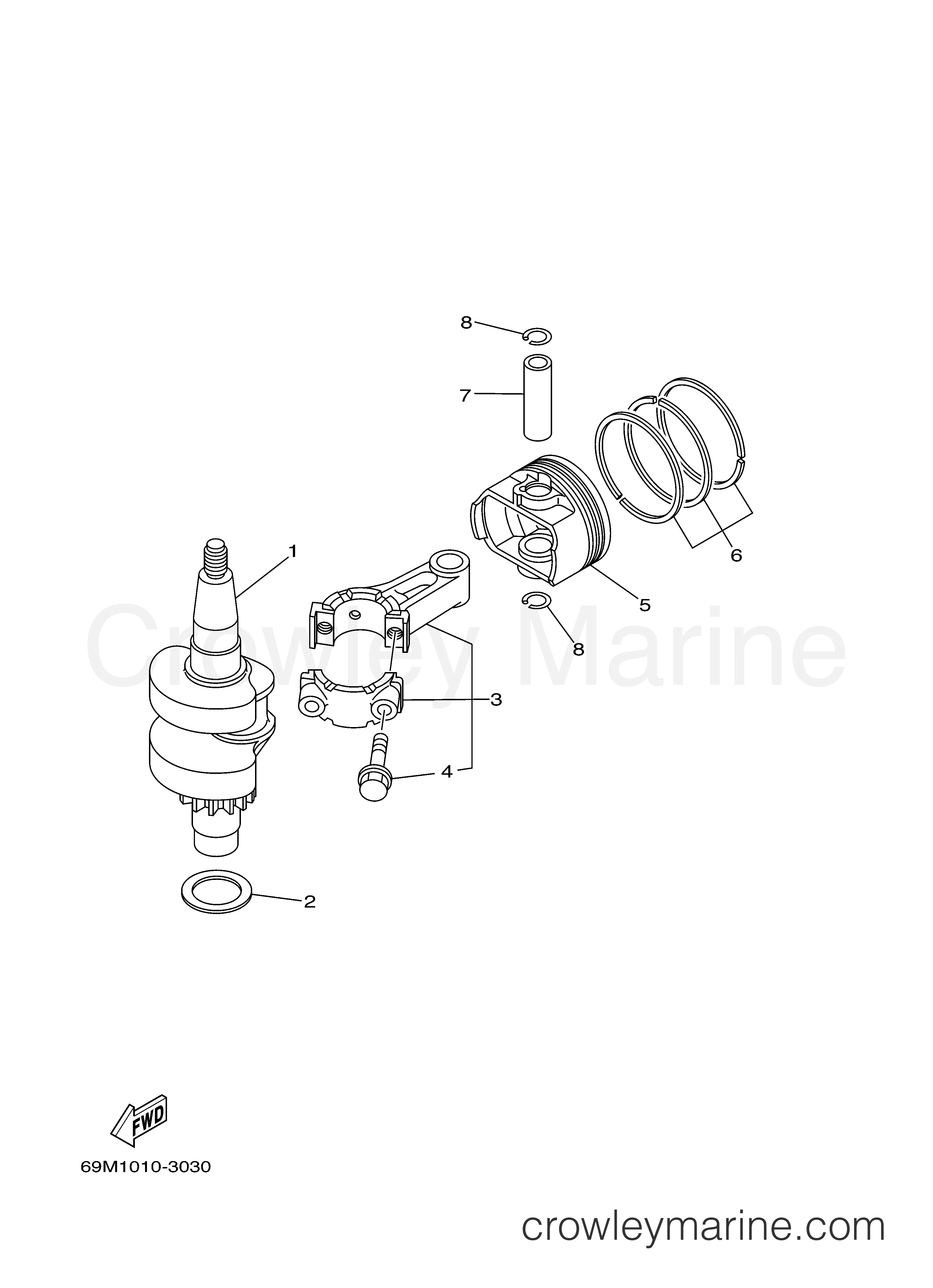

Yamaha Motors F2.5MSHB - CRANKSHAFT PISTON
Change View:
Crankshaft Assembly
1
Yamaha Motors
Crankshaft Assembly69M-11400-00-00
Required: 1
CRANKSHAFT ASSY
Cross Ship
Leaves in 2-5 days
$250.05
$212.54
You save $37.51
More details
Plate Washer
2
Yamaha Motors
Plate Washer90201-23008-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$2.50
$2.13
You save $0.38
More details
Connecting Rod Assembly
3
Yamaha Motors
Connecting Rod Assembly69M-11650-00-00
Required: 1
CONNECTING ROD ASSY
Cross Ship
Leaves in 2-5 days
$79.65
$67.70
You save $11.95
More details
Connecting Rod Bolt
4
Yamaha Motors
Connecting Rod Bolt7DX-E1654-00-00
Required: 2
.BOLT, CONNECTING ROD
Supersedes: 7FK-11654-00-00
Cross Ship
Leaves in 2-5 days
$4.35
$3.70
You save $0.65
More details
Piston (Standard)
5
Yamaha Motors
Piston (Standard)69M-E1631-01-96
Required: 1
PISTON (STD)
Supersedes: 69M-E1631-00-96
Cross Ship
Leaves in 2-5 days
$70.20
$59.67
You save $10.53
More details
Piston Ring Set (Standard)
6
Yamaha Motors
Piston Ring Set (Standard)69M-E1603-01-00
Required: 1
PISTON RING SET (STD)
Supersedes: 69M-E1603-00-00
Cross Ship
Leaves in 2-5 days
$47.65
$40.50
You save $7.15
More details
Piston Pin
7
Yamaha Motors
Piston Pin6EG-E1633-00-00
Required: 1
PIN, PISTON
Supersedes: 69M-E1633-00-00
Cross Ship
Leaves in 2-5 days
$10.80
$9.18
You save $1.62
More details
Circle Clip
8
Yamaha Motors
Circle Clip93450-13130-00
Required: 2
CIRCLIP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
