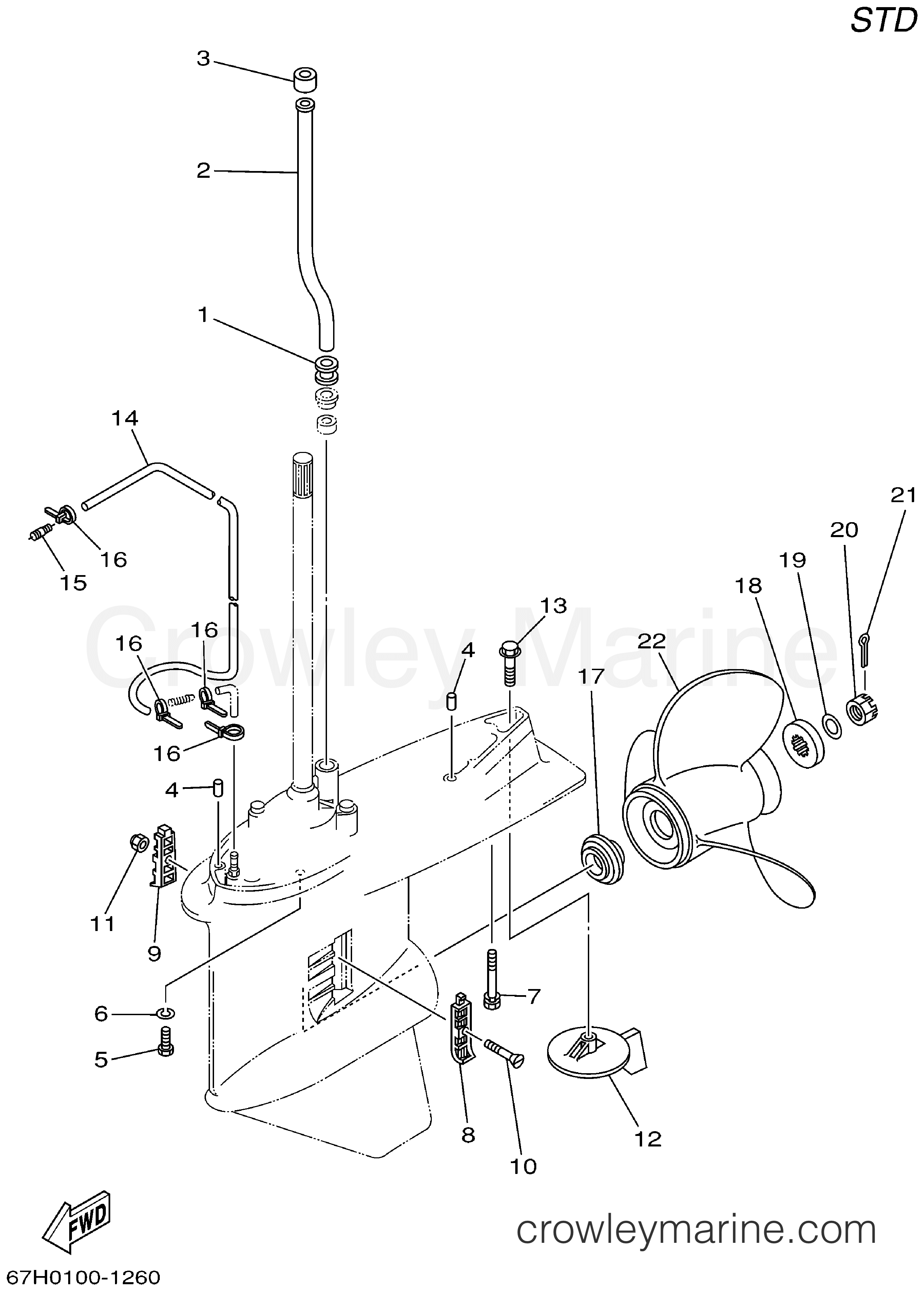

2002 Outboard 150hp - Z150TLRA LOWER CASING DRIVE 2 diagram
1
Yamaha Motors
Water Seal Damper6E5-44366-01-00
Required: 1
.DAMPER, WATER SEAL 2
Supersedes: 6E5-44366-00-00
In stock
5+ in stock
$1.19
You save $0.21
2
Yamaha Motors
Water Tube6E5-44361-20-00
Required: 1
TUBE, WATER 1
$50.36
You save $8.89
2
Yamaha Motors
Water Tube6E5-44361-00-00
Required: 1
TUBE, WATER 1
$40.76
You save $7.19
3
Yamaha Motors
Water Seal Damper6E5-44365-01-00
Required: 1
.DAMPER, WATER SEAL 1
Supersedes: 6E5-44365-00-00
In stock
5+ in stock
$1.70
You save $0.30
In stock
Only 2 remaining
$8.84
You save $1.56
$22.99
You save $4.06
6
Yamaha Motors
Spring Washer92990-10100-00
Required: 6
WASHER
Supersedes: 92995-10100-00
In stock
5+ in stock
$2.76
You save $0.49
7
Yamaha Motors
Bolt with Washer90119-10071-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-10M89-00
In stock
5+ in stock
$4.55
You save $0.80
8
Yamaha Motors
Water Inlet Cover6J9-45214-00-00
Required: 1
COVER, WATER INLET 1
In stock
5+ in stock
$12.54
You save $2.21
9
Yamaha Motors
Water Inlet Cover 26J9-45215-00-00
Required: 1
COVER, WATER INLET 2
In stock
5+ in stock
$12.54
You save $2.21
10
Yamaha Motors
Countersunk Screw90152-05M08-00
Required: 1
SCREW, COUNTERSUNK
In stock
5+ in stock
$4.04
You save $0.71
11
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.91
You save $0.34
In stock
5+ in stock
$26.22
You save $4.63
In stock
5+ in stock
$4.42
You save $0.78
14
Yamaha Motors
Hose (L1160)90445-07M21-00
Required: 1
HOSE (L1080)
Supersedes: 90445-07M33-00
$10.92
You save $1.93
In stock
Only 2 remaining
$9.69
You save $1.71
16
Yamaha Motors
Clamp90465-10098-00
Required: 4
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
17
Yamaha Motors
Spacer63P-45987-00-00
Required: 1
SPACER 1
Supersedes: 6E5-45987-01-00
In stock
Only 3 remaining
$47.90
You save $8.45
In stock
5+ in stock
$40.59
You save $7.16
In stock
Only 1 remaining
$2.17
You save $0.38
In stock
Only 3 remaining
$17.17
You save $3.03
In stock
5+ in stock
$3.82
You save $0.68
22
Yamaha Motors
Propeller (3X15-1/4"X15"-M)6G5-45941-00-98
Required: 1
PROPELLER (3X15-1/4"X15"-M)
$231.20
You save $40.80
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 15.25x17RH Stainless Steel6R4-45978-A0-00
Required: 1
PROPELLER (3X15-1/4"X17"-M)
Supersedes: 6R4-45978-A1-00
$633.42
You save $111.78
22
Yamaha Motors
Aluminum Prop - 3 Blade 13.5x23RH Aluminum6G5-45949-00-00
Required: 1
PROPELLER (3X13-1/2"X23"-M)
Supersedes: 6G5-45949-00-98
$231.20
You save $40.80
22
Yamaha Motors
Propeller (3X13-3/4"X21"-M)6G5-45972-02-98
Required: 1
PROPELLER (3X13-3/4"X21"-M)
$723.35
You save $127.65
22
Yamaha Motors
Propeller (3X13-3/8"X23"-M)6G5-45976-01-98
Required: 1
PROPELLER (3X13-3/8"X23"-M)
$723.35
You save $127.65
22
Yamaha Motors
Propeller (3X13-3/8"X25"-M)6G5-45930-00-98
Required: 1
PROPELLER (3X13-3/8"X25"-M)
$539.20
You save $95.15
22
Yamaha Motors
Aluminum Prop - 3 Blade 14.63x16RH Aluminum6G5-45952-00-00
Required: 1
PROPELLER (3X14-5/8"X16"-M)
Supersedes: 6G5-45952-00-98
$231.20
You save $40.80
22
Yamaha Motors
Aluminum Prop - 3 Blade 14.5x17RH Aluminum6G5-45947-01-00
Required: 1
PROPELLER (3X14-1/2"X17"-M)
Supersedes: 6G5-45947-01-98
$231.20
You save $40.80
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 15.25x15RH Stainless Steel6G5-45970-02-00
Required: 1
PROPELLER (3X15-1/4"X15"-M)
Supersedes: 6G5-45970-02-98
$723.35
You save $127.65
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 15.75x13RH Stainless Steel6G5-45932-00-00
Required: 1
PROPELLER (3X15-3/4"X13"-M)
Supersedes: 6G5-45932-00-98
$723.35
You save $127.65
22
Yamaha Motors
Propeller (3X13-3/4"X19"-M2)6G5-45974-03-98
Required: 1
PROPELLER (3X13-3/4"X19"-M2)
$723.35
You save $127.65
22
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.75x17RH Stainless Steel6G5-45978-03-00
Required: 1
PROPELLER (3X13-3/4"X17"-M2)
Supersedes: 6G5-45978-03-98
$723.35
You save $127.65
22
Yamaha Motors
Aluminum Prop - 3 Blade 13.75x21RH Aluminum6G5-45943-01-00
Required: 1
PROPELLER (3X13-3/4"X21"-M)
Supersedes: 6G5-45943-01-98
$231.20
You save $40.80
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 15.25x19RH Stainless Steel6R4-45970-A1-00
Required: 1
PROPELLER (3X15-1/4"X19"-M)
$633.42
You save $111.78
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 14.88x21RH Stainless Steel6R4-45972-A0-00
Required: 1
PROPELLER (3X14-7/8"X21"-M)
Supersedes: 6R4-45972-A1-00
$633.42
You save $111.78
22
Yamaha Motors
Propeller (3X14-1/2"X23"-M)6R4-45974-A1-00
Required: 1
PROPELLER (3X14-1/2"X23"-M)
$725.90
You save $128.10
22
Yamaha Motors
Saltwater Series Prop - 3 Blade 14.5x15RH Stainless Steel6R4-45976-A0-00
Required: 1
PROPELLER (3X15-1/4"X15"-M)
Supersedes: 6R4-45976-A1-00
$633.42
You save $111.78
22
Yamaha Motors
Aluminum Prop - 3 Blade 14x19RH Aluminum6G5-45945-01-00
Required: 1
PROPELLER (3X14"X19"-M)
Supersedes: 6G5-45945-01-98
$231.20
You save $40.80
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
