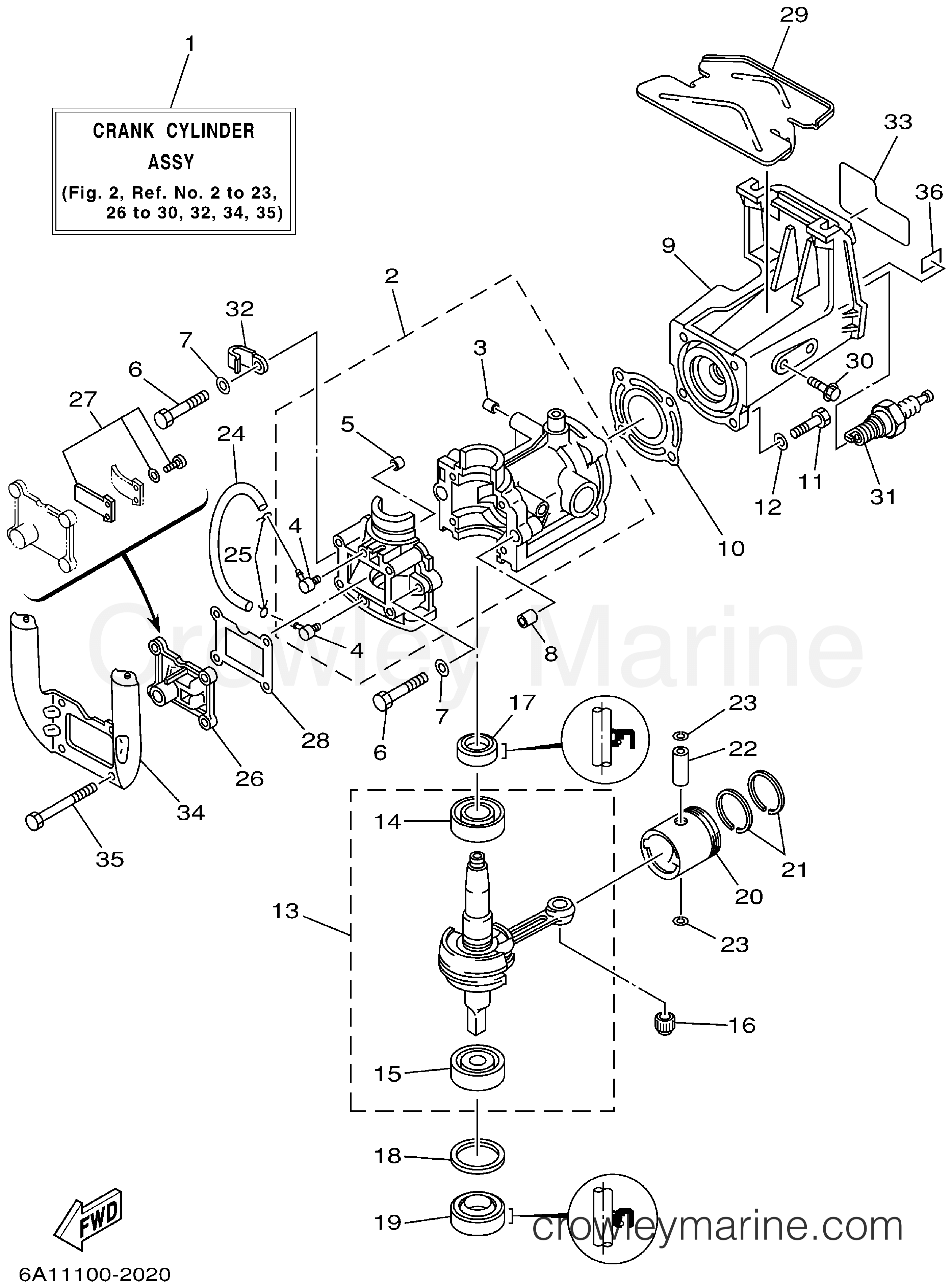

2002 Outboard 2hp - 2MSHA CYLINDER CRANKCASE diagram
1
Yamaha Motors
Crank Cylinder Assembly6A1-W0090-13-1S
Required: 1
CRANK CYLINDER ASSY
$524.41
You save $92.54
2
Yamaha Motors
CRANKCASE ASSY6A1-15100-61-00
Required: 1
CRANKCASE ASSY
Supersedes: 6A1-15100-61-1S
$247.48
You save $43.67
In stock
Only 1 remaining
$5.06
You save $0.89
4
Yamaha Motors
Joint Pipe650-14485-03-00
Required: 2
.PIPE, JOINT
Supersedes: 650-14485-02-00
In stock
Only 1 remaining
$6.54
You save $1.16
5
Yamaha Motors
Check Valve624-11379-00-00
Required: 1
.VALVE, CHECK
$10.84
You save $1.91
In stock
5+ in stock
$1.87
You save $0.33
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
Supersedes: 92903-06600-00
In stock
5+ in stock
$2.42
You save $0.43
8
Yamaha Motors
Dowel Pin99530-10114-00
Required: 2
.PIN, DOWEL
Supersedes: 99530-10014-00
In stock
Only 1 remaining
$2.25
You save $0.40
9
Yamaha Motors
Cylinder Head6A1-11111-02-1S
Required: 1
HEAD, CYLINDER 1
$86.15
You save $15.20
10
Yamaha Motors
Cylinder Head Gasket6A1-11181-A1-00
Required: 1
GASKET, CYLINDER HEAD 1
$17.21
You save $3.04
$2.85
You save $0.50
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER
Supersedes: 92995-06600-00
In stock
5+ in stock
$2.42
You save $0.43
13
Yamaha Motors
Crankshaft Assembly6GD-E1400-00-00
Required: 1
CRANKSHAFT ASSY
Supersedes: 6A1-11400-00-00
$234.94
You save $41.46
In stock
Only 1 remaining
$27.19
You save $4.80
$29.74
You save $5.25
16
Yamaha Motors
Bearing93310-210M0-00
Required: 1
BEARING
Supersedes: 93310-210V1-00
$31.44
You save $5.55
17
Yamaha Motors
Oil Seal93102-20108-00
Required: 1
OIL SEAL
Supersedes: 93102-20070-00
In stock
Only 1 remaining
$10.62
You save $1.87
18
Yamaha Motors
Plate Washer90201-352L0-00
Required: 1
WASHER, PLATE
Supersedes: 90201-35300-00
$5.09
You save $0.90
$6.63
You save $1.17
20
Yamaha Motors
Piston (Standard)646-11631-01-97
Required: 1
PISTON (STD)
Supersedes: 646-11631-01-98
$51.47
You save $9.08
20
Yamaha Motors
Piston (0.50MM O/S)646-11636-01-00
Required: 1
PISTON (0.50MM O/S)
$49.89
You save $8.80
20
Yamaha Motors
Piston (0.25MM O/S)646-11635-01-00
Required: 1
PISTON (0.25MM O/S)
$19.11
You save $3.37
21
Yamaha Motors
Piston Ring Set646-11601-11-00
Required: 1
PISTON RING SET (0.25MM O/S)
$11.26
You save $1.99
21
Yamaha Motors
Piston Ring Set (0.50Mm O/S)646-11601-21-00
Required: 1
PISTON RING SET (0.50MM O/S)
$17.21
You save $3.04
21
Yamaha Motors
Piston Ring Set (Standard)646-11601-01-00
Required: 1
PISTON RING SET (STD)
$18.83
You save $3.32
$10.84
You save $1.91
In stock
Only 5 remaining
$2.46
You save $0.44
24
Yamaha Motors
Hose (L200)90445-07MA3-00
Required: 1
HOSE (L118)
Supersedes: 90445-07254-00
In stock
5+ in stock
$6.29
You save $1.11
In stock
Only 3 remaining
$2.72
You save $0.48
26
Yamaha Motors
REED VALVE ASSY6GD-E3610-00-00
Required: 1
REED VALVE ASSY
Supersedes: 6A1-13610-00-00
$67.87
You save $11.98
$18.83
You save $3.32
28
Yamaha Motors
VALVE SEAT GASKET6GD-E3621-00-00
Required: 1
GASKET, VALVE SEAT
Supersedes: 6A1-13621-A0-00
In stock
Only 1 remaining
$3.19
You save $0.56
29
Yamaha Motors
PROTECTOR, FUEL TANK6GD-F4141-00-00
Required: 1
PROTECTOR, FUEL TANK
Supersedes: 6A1-24141-00-00
$36.34
You save $6.41
30
Yamaha Motors
DEEP FLANGE BOLT95D95-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95895-06010-00
$0.68
You save $0.12
31
Yamaha Motors
B5HS NGKB5H-S0000-00-00
Required: 1
PLUG, SPARK (NGK B5HS)
Supersedes: NGK-B5HS0-00-00
$3.65
You save $0.65
$6.08
You save $1.07
$7.31
You save $1.29
$23.93
You save $4.22
In stock
Only 5 remaining
$2.89
You save $0.51
$2.46
You save $0.44
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
