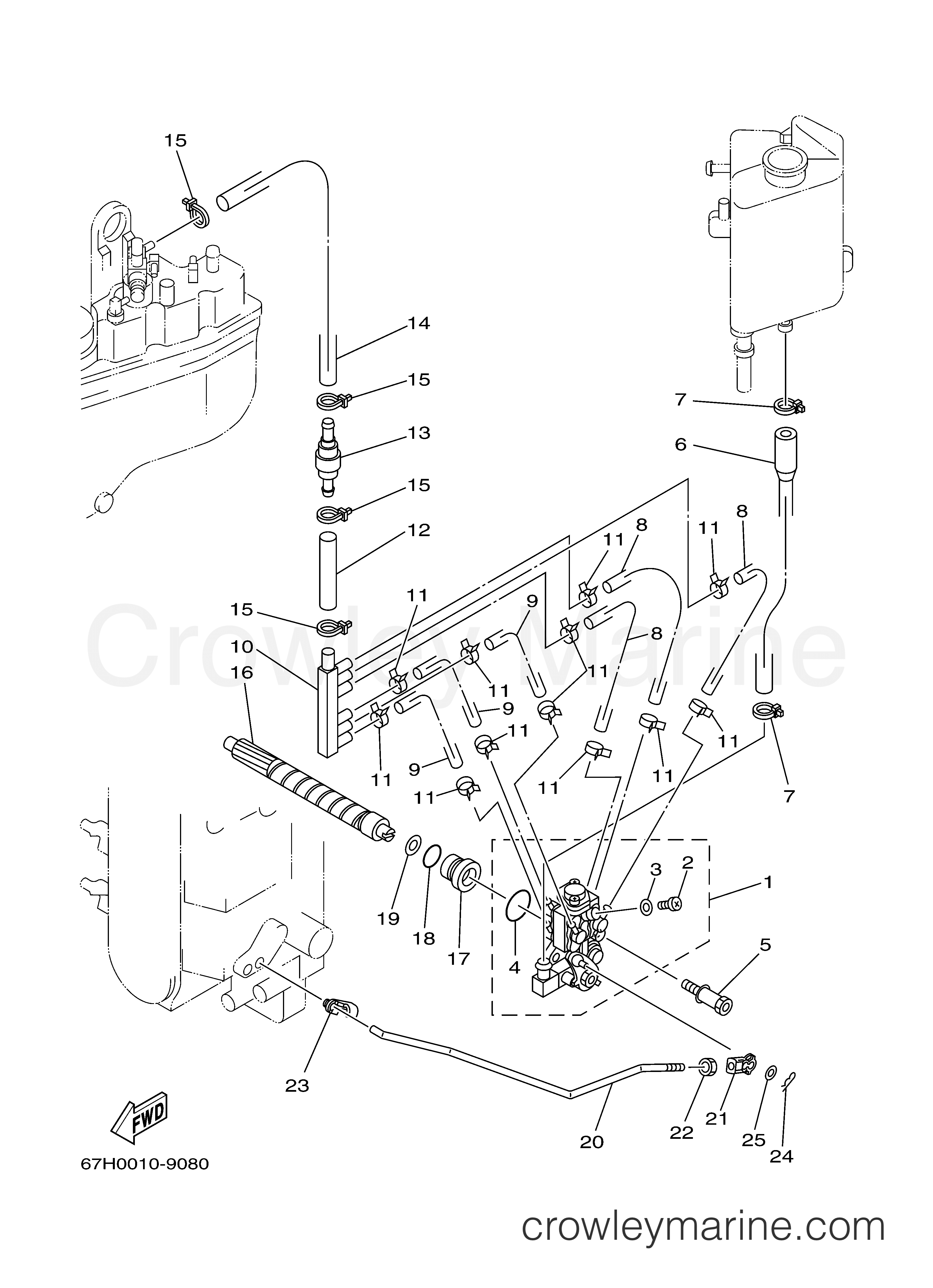

2000 Outboard 250hp - SX250TXRY OIL PUMP diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Obsolete Yamaha Part65L-13200-02-00

Required: 1

OIL INJECTION PUMP ASSY

Supersedes: 65L-13200-00-00

In stock

Only 1 remaining

~~$346.35~~

$294.40

You save $51.95

More details

Yamaha Motors

Pan Head Screw98580-04006-00

Required: 1

..PLUG, DRAIN

Supersedes: 6R3-13471-00-00

~~$3.20~~

$2.72

You save $0.48

..O-RING

~~$8.85~~

$7.52

You save $1.33

More details

Yamaha Motors

Breather Bolt Gasket1YU-13187-00-00

Required: 1

.GASKET

Supersedes: 6L2-13475-00-00

~~$8.49~~

$7.22

You save $1.27

BOLT

~~$2.30~~

$1.96

You save $0.35

More details

Yamaha Motors

Oil Pipe61A-13416-00-00

Required: 1

PIPE, OIL 1

~~$16.30~~

$13.86

You save $2.45

CLAMP

Supersedes: 90465-11M10-00

In stock

5+ in stock

~~$2.70~~

$2.29

You save $0.41

More details

Yamaha Motors

Check Valve65L-13183-00-00

Required: 1

VALVE, CHECK

~~$57.90~~

$49.21

You save $8.69

More details

Yamaha Motors

Joint Pipe65L-24378-00-00

Required: 1

PIPE, JOINT 4

~~$34.55~~

$29.37

You save $5.18

More details

Yamaha Motors

Pipe 55RB-24315-00-00

Required: 1

HOSE (L30)

Supersedes: 90445-09220-00

~~$8.49~~

$7.22

You save $1.27

HOSE

~~$6.25~~

$5.31

You save $0.94

CLAMP

Supersedes: 90465-11M10-00

In stock

5+ in stock

~~$2.70~~

$2.29

You save $0.41

More details

Yamaha Motors

Hose (L200)90445-07MA3-00

Required: 3

HOSE (L167)

Supersedes: 90445-07M02-00

In stock

5+ in stock

~~$7.40~~

$6.29

You save $1.11

More details

Yamaha Motors

Hose (L200)90445-07MA3-00

Required: 3

.HOSE (L34)

Supersedes: 90445-07M03-00

In stock

5+ in stock

~~$7.40~~

$6.29

You save $1.11

CLIP

In stock

5+ in stock

~~$5.95~~

$5.06

You save $0.89

More details

Yamaha Motors

Driven Gear61A-11537-00-00

Required: 1

GEAR, DRIVEN

In stock

Only 1 remaining

~~$56.40~~

$47.94

You save $8.46

More details

Yamaha Motors

Plate Washer90201-09M01-00

Required: 1

WASHER, PLATE

~~$5.35~~

$4.55

You save $0.80

More details

Yamaha Motors

Distance Collar61A-13117-00-00

Required: 1

COLLAR, DISTANCE

~~$24.75~~

$21.04

You save $3.71

.O-RING

In stock

Only 2 remaining

~~$3.55~~

$3.02

You save $0.53

More details

Yamaha Motors

Link Rod65L-41241-10-00

Required: 1

ROD, LINK

Supersedes: 65L-41241-00-00

~~$24.15~~

$20.53

You save $3.62

More details

Yamaha Motors

Link Joint6H1-41237-00-00

Required: 1

JOINT, LINK

In stock

5+ in stock

~~$20.65~~

$17.55

You save $3.10

NUT

In stock

Only 5 remaining

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Link Joint6R5-41237-00-00

Required: 1

JOINT, LINK

In stock

5+ in stock

~~$10.65~~

$9.05

You save $1.60

More details

Yamaha Motors

Cotter Pin91490-12012-00

Required: 1

PIN. COTTER

~~$3.20~~

$2.72

You save $0.48

More details

Yamaha Motors

Plate Washer90202-05088-00

Required: 1

WASHER, PLATE

In stock

Only 2 remaining

~~$7.70~~

$6.54

You save $1.16

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

2000 Outboard 250hp - SX250TXRY OIL PUMP diagram
