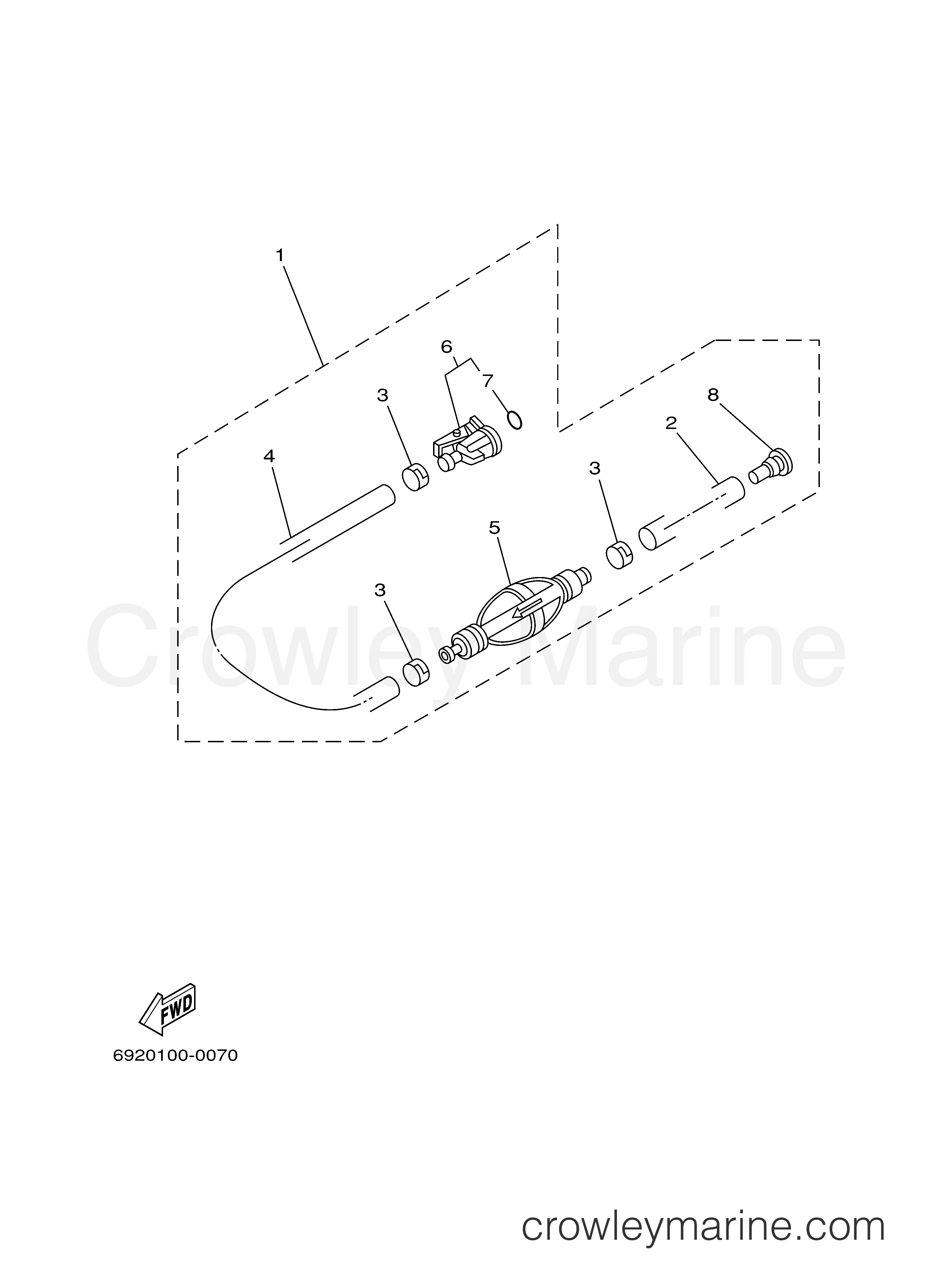

2000 Outboard 75hp - E75MLHY FUEL 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Obsolete Yamaha Part6Y1-24306-44-00

Required: 1

FUEL PIPE COMP. 1

Supersedes: 6Y1-24306-41-00

~~$82.40~~

$70.04

You save $12.36

More details

Yamaha Motors

.HOSE (L3000)90445-11M81-00

Required: 1

.HOSE (L2050)

Supersedes: 90445-11M06-00

In stock

Only 2 remaining

~~$40.50~~

$34.42

You save $6.08

.BAND 1

~~$2.70~~

$2.29

You save $0.41

More details

Yamaha Motors

Hose (L800)90445-11M78-00

Required: 1

.HOSE (L850)

Supersedes: 90445-11M05-00

~~$8.90~~

$7.57

You save $1.33

More details

Yamaha Motors

PRIMER PUMP ASSY.6Y1-24360-51-00

Required: 1

.PRIMER PUMP ASSY

~~$44.45~~

$37.78

You save $6.67

More details

Yamaha Motors

Fuel Pipe Joint Comp6Y1-24305-06-00

Required: 1

.FUEL PIPE JOINT COMP 2

Supersedes: 6Y1-24305-03-00

In stock

Only 2 remaining

~~$25.10~~

$21.34

You save $3.77

..O-RING

In stock

Only 4 remaining

~~$5.35~~

$4.55

You save $0.80

More details

Yamaha Motors

DAMPER 2689-85547-01-00

Required: 1

.DAMPER

Supersedes: 689-85547-00-00

~~$5.65~~

$4.80

You save $0.85

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

2000 Outboard 75hp - E75MLHY FUEL 2 diagram
