All diagrams for this model

1999 Outboard 150hp - C150TLRX ELECTRICAL 1 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

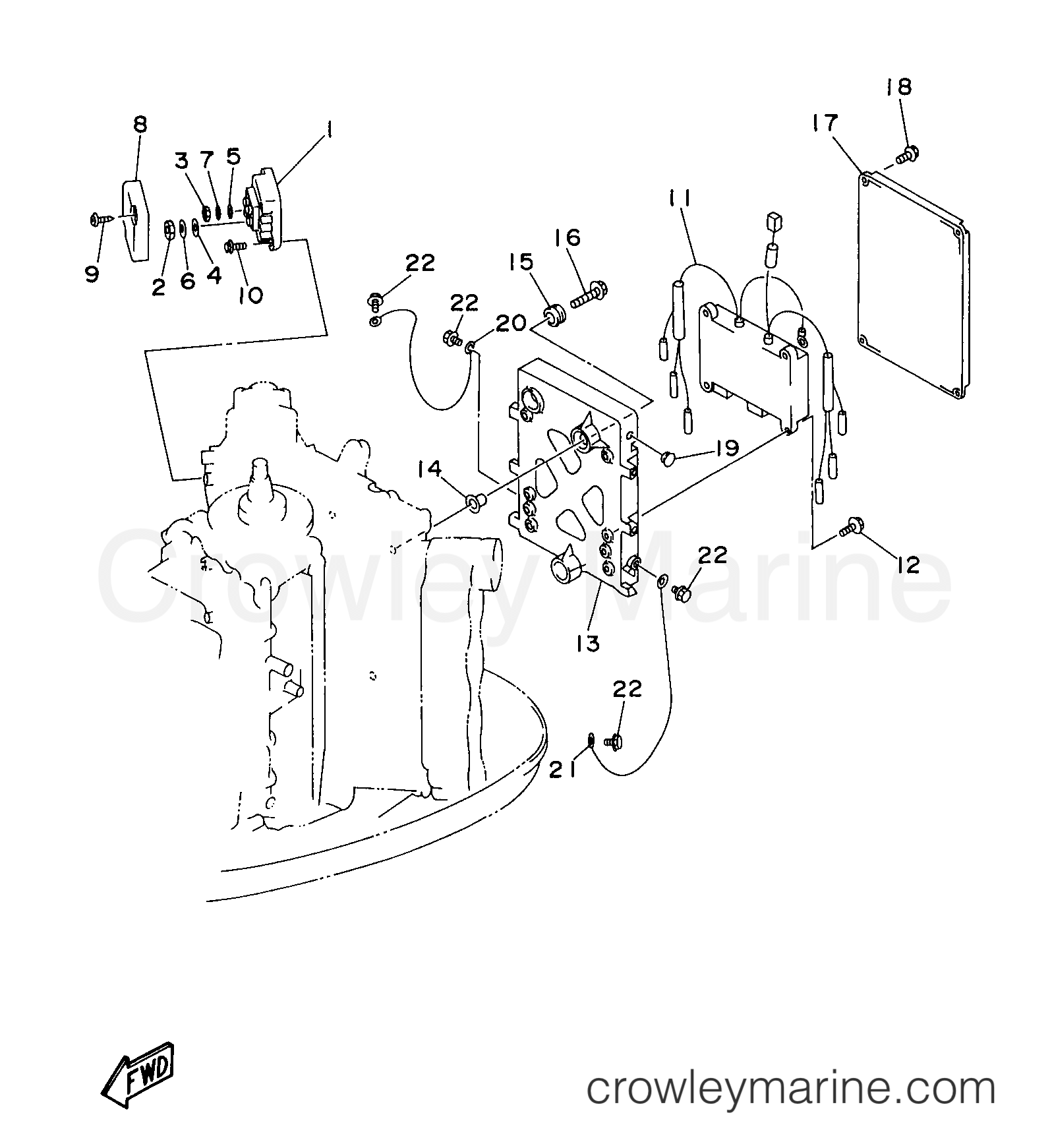

Yamaha Motors C150TLRX - ELECTRICAL 1
Change View:
Rectifier & Regulator Assembly
1
Yamaha Motors
Rectifier & Regulator Assembly6G5-81960-A0-00
Required: 1
RECTIFIER & REGULATOR ASSY
Cross Ship
Leaves in 2-5 days
$180.75
$153.64
You save $27.11
More details
Plain Washer
5
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
.WASHER, PLAIN
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Cover
8
Yamaha Motors
Cover688-81961-01-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$13.50
$11.47
You save $2.03
More details
Screw, With Washer
9
Yamaha Motors
Screw, With Washer97985-05225-00
Required: 2
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.00
$2.55
You save $0.45
More details
C.D.I. UNIT Assembly
11
Yamaha Motors
C.D.I. UNIT Assembly6G6-85540-00-00
Required: 1
C.D.I. UNIT ASSEMBLY
Cross Ship
Leaves in 2-5 days
$1402.35
$1192.00
You save $210.35
More details
Bracket
13
Yamaha Motors
Bracket6R3-85542-03-1S
Required: 1
BRACKET
Supersedes: 6R3-85542-03-4D
Cross Ship
Leaves in 2-5 days
$141.45
$120.23
You save $21.22
More details
Collar
14
Yamaha Motors
Collar90387-06M03-00
Required: 3
COLLAR
Cross Ship
Leaves in 2-5 days
$10.40
$8.84
You save $1.56
More details
Bolt with Washer
16
Yamaha Motors
Bolt with Washer90119-06M06-00
Required: 3
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$3.70
$3.15
You save $0.56
More details
Cover
17
Yamaha Motors
Cover6R3-85537-00-00
Required: 1
COVER
Cross Ship
Leaves in 2-5 days
$35.65
$30.30
You save $5.35
More details
Grommet
19
Yamaha Motors
Grommet90480-12M25-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details
Earth Lead Wire
20
Yamaha Motors
Earth Lead Wire662-82519-00-00
Required: 1
WIRE, EARTH LEAD
Cross Ship
Leaves in 2-5 days
$15.50
$13.18
You save $2.33
More details
Earth Lead Wire
21
Yamaha Motors
Earth Lead Wire6R3-82519-00-00
Required: 1
WIRE, EARTH LEAD
Cross Ship
Leaves in 2-5 days
$14.75
$12.54
You save $2.21
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
