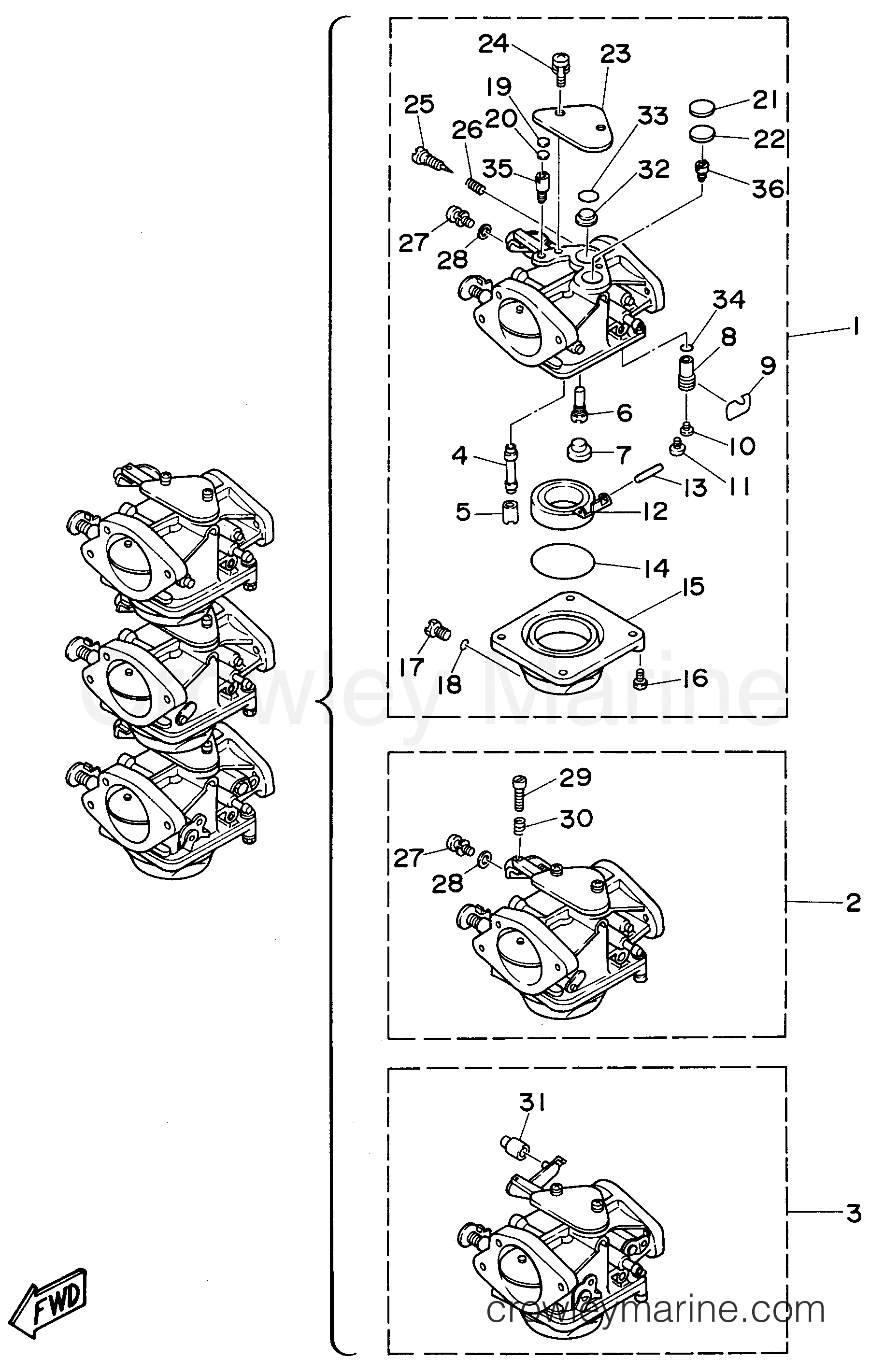

1998 Outboard 60hp - E60MLHW CARBURETOR diagram
1
Yamaha Motors
CARBURETOR ASSY6K5-14301-04-00
Required: 1
CARBURETOR ASSY 1
Supersedes: 6K5-14301-03-00
$422.54
You save $74.56
2
Yamaha Motors
CARBURETOR ASSY6K5-14302-04-00
Required: 1
CARBURETOR ASSY 2
Supersedes: 6K5-14302-03-00
$422.54
You save $74.56
3
Yamaha Motors
CARBURETOR ASSY6K5-14303-04-00
Required: 1
CARBURETOR ASSY 3
Supersedes: 6K5-14303-03-00
$422.54
You save $74.56
4
Yamaha Motors
Main Nozzle6H2-14947-02-00
Required: 3
.NOZZLE, MAIN
In stock
Only 2 remaining
$21.80
You save $3.85
5
Yamaha Motors
Main Jet676-14943-34-00
Required: 3
.JET, MAIN (135)
$13.81
You save $2.44
6
Yamaha Motors
Slow Jet6H4-14948-15-00
Required: 3
.JET, SLOW (70)
$12.45
You save $2.20
In stock
Only 4 remaining
$7.73
You save $1.37
8
Yamaha Motors
NEEDLE VALVE ASSY6H3-14590-02-00
Required: 3
.NEEDLE VALVE ASSEMBLY
Supersedes: 6H3-14590-00-00
In stock
5+ in stock
$24.57
You save $4.34
9
Yamaha Motors
Clip633-14159-00-00
Required: 3
.CLIP
Supersedes: 663-14159-00-00
$14.02
You save $2.47
In stock
Only 3 remaining
$6.88
You save $1.21
11
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.70
You save $0.30
In stock
Only 2 remaining
$20.32
You save $3.59
13
Yamaha Motors
Float Arm Pin688-14548-00-00
Required: 3
.PIN, FLOAT ARM
$5.31
You save $0.94
In stock
5+ in stock
$9.10
You save $1.61
15
Yamaha Motors
Float Chamber Body6H2-14980-00-00
Required: 3
.BODY, FLOAT CHAMBER
$52.06
You save $9.19
16
Yamaha Motors
Screw With Washer97980-04114-00
Required: 12
.SCREW, WITH WASHER
In stock
5+ in stock
$4.55
You save $0.80
17
Yamaha Motors
SCREW, DRAIN6H3-14992-01-00
Required: 3
.SCREW, DRAIN
Supersedes: 6H3-14992-00-00
In stock
5+ in stock
$18.15
You save $3.20
In stock
5+ in stock
$8.07
You save $1.42
$5.70
You save $1.00
In stock
Only 2 remaining
$3.36
You save $0.59
$5.70
You save $1.00
In stock
5+ in stock
$3.91
You save $0.69
$10.33
You save $1.82
24
Yamaha Motors
Screw With Washer97980-05310-00
Required: 6
.SCREW, WITH WASHER
In stock
Only 4 remaining
$6.29
You save $1.11
25
Yamaha Motors
Pilot Screw692-14923-00-00
Required: 3
.SCREW, PILOT
$23.29
You save $4.11
26
Yamaha Motors
Spring697-14555-00-00
Required: 3
.SPRING
Supersedes: 679-14555-00-00
In stock
5+ in stock
$2.93
You save $0.52
In stock
Only 2 remaining
$4.12
You save $0.73
28
Yamaha Motors
Plate Washer90201-05552-00
Required: 2
.WASHER, PLATE
Supersedes: 90201-05652-00
$3.19
You save $0.56
$9.18
You save $1.62
30
Yamaha Motors
Compression Spring90501-10326-00
Required: 1
.SPRING, COMPRESSION
$6.29
You save $1.11
In stock
Only 2 remaining
$12.07
You save $2.13
In stock
Only 3 remaining
$11.77
You save $2.08
$6.88
You save $1.21
In stock
5+ in stock
$5.70
You save $1.00
35
Yamaha Motors
Air Main (145) Jet6K5-14945-36-00
Required: 3
.JET, AIR MAIN (145)
$14.96
You save $2.64
36
Yamaha Motors
Air Slow (85) Jet6K5-14950-21-00
Required: 3
.JET, AIR SLOW (85)
$15.09
You save $2.66
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
