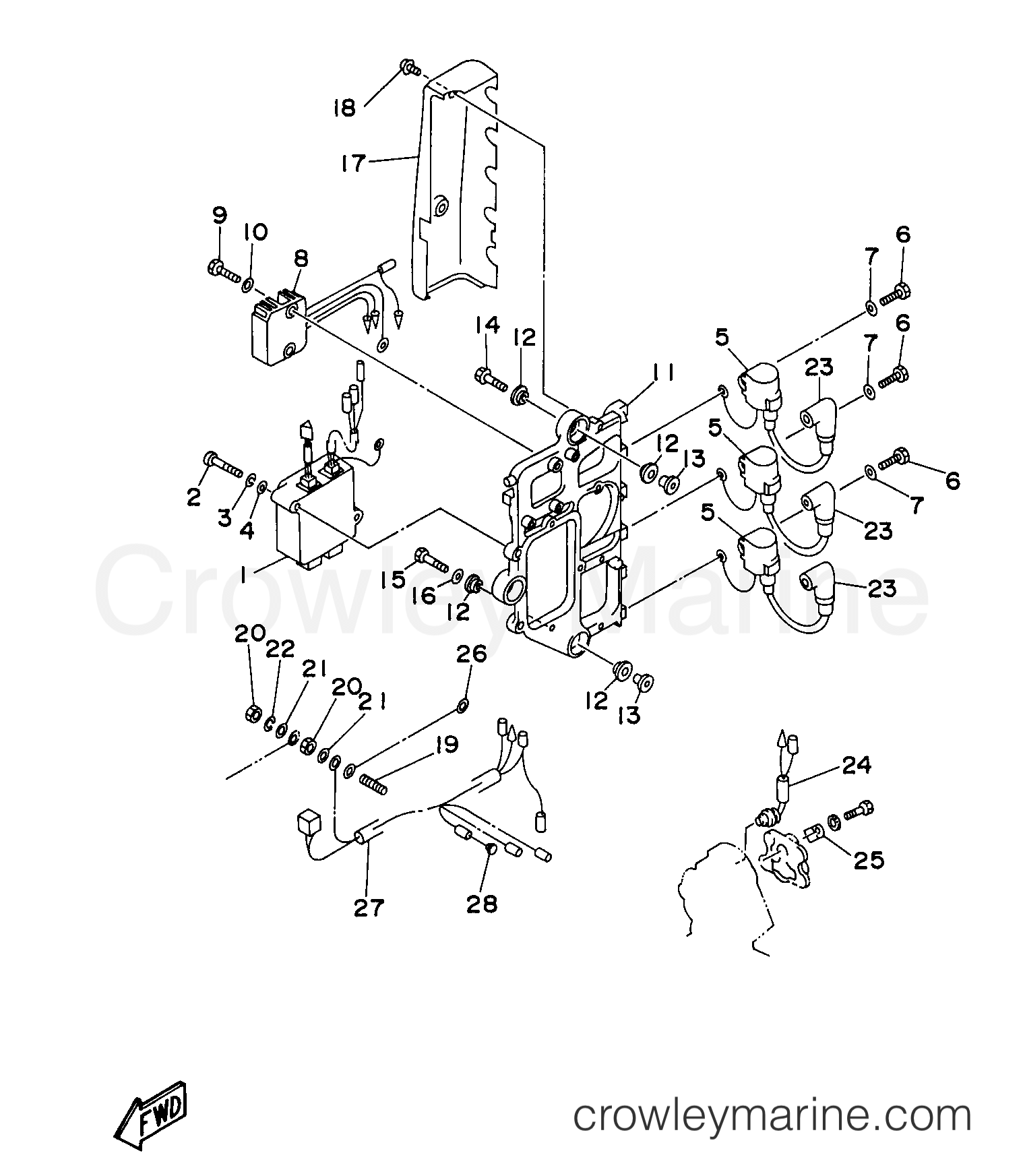

1997 Outboard 75hp - E75MLHV ELECTRICAL 1 diagram
1
Yamaha Motors
C.D.I. UNIT Assembly688-85540-00-00
Required: 1
C.D.I. UNIT ASSEMBLY
$507.45
You save $89.55
2
Yamaha Motors
Pan Head Screw98580-06540-00
Required: 2
SCREW, PAN HEAD
$1.74
You save $0.31
3
Yamaha Motors
Spring Washer92995-06100-00
Required: 2
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
4
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
5
Yamaha Motors
Ignition Coil Assembly697-85570-00-00
Required: 3
IGNITION COIL ASSY
In stock
5+ in stock
$79.95
You save $20.55
6
Yamaha Motors
Bolt97080-06020-00
Required: 3
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.60
You save $0.90
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
8
Yamaha Motors
Rectifier & Regulator Assembly6H0-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSEMBLY
$133.83
You save $23.62
9
Yamaha Motors
Bolt97080-06020-00
Required: 2
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.60
You save $0.90
10
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
11
Yamaha Motors
Bracket6H1-85542-00-00
Required: 1
BRACKET
Supersedes: 6H1-85542-00-94
$51.42
You save $9.08
$6.08
You save $1.07
$8.32
You save $2.08
-50%
14
Yamaha Motors
Bolt with Washer90119-06293-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-06M75-00
In stock
Only 1 remaining
$2.10
You save $2.10
Price unavailable
16
Yamaha Motors
Plate Washer90201-06M31-00
Required: 1
WASHER, PLATE
In stock
Only 5 remaining
$2.76
You save $0.69
17
Yamaha Motors
Terminal Cover6H1-81916-00-00
Required: 1
COVER, TERMINAL
In stock
Only 1 remaining
$14.00
You save $3.50
18
Yamaha Motors
Screw With Washer90159-06M11-00
Required: 2
SCREW, WITH WASHER
In stock
Only 4 remaining
$2.56
You save $0.64
-50%
$4.52
You save $4.52
In stock
Only 4 remaining
$7.59
You save $1.90
21
Yamaha Motors
Plain Washer92990-06200-00
Required: 2
.WASHER, PLAIN
$3.60
You save $-2.60
22
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.69
In stock
5+ in stock
$12.52
You save $3.13
24
Yamaha Motors
Thermo Switch Assembly688-82560-10-00
Required: 1
THERMO SWITCH ASSY
In stock
5+ in stock
$39.08
You save $9.77
$8.59
You save $1.52
26
Yamaha Motors
Earth Lead Wire6R3-82519-00-00
Required: 1
WIRE, EARTH LEAD
Supersedes: 61A-82519-00-00
$12.54
You save $2.21
27
Yamaha Motors
Wire Harness Assembly692-82590-00-00
Required: 1
WIRE HARNESS ASSEMBLY
$72.46
You save $12.79
28
Yamaha Motors
Lead Wire Cover703-82119-00-00
Required: 1
COVER, LEAD WIRE
$2.72
You save $0.48
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
