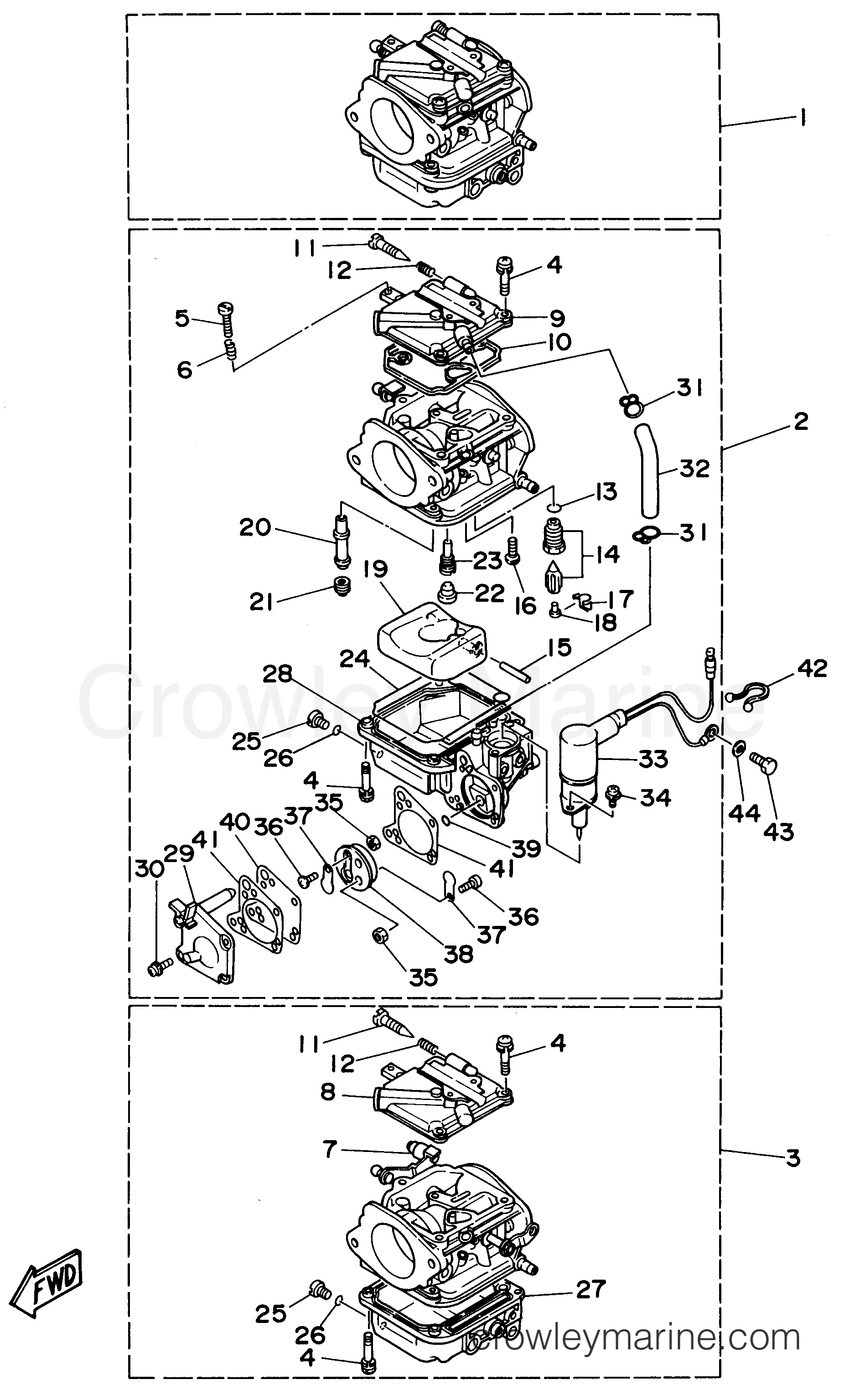

1997 Outboard 90hp - C90TLRV CARBURETOR diagram
1
Yamaha Motors
Carburetor Assembly6H1-14301-08-00
Required: 1
CARBURETOR ASSY 1
Supersedes: 6H1-14301-07-00
$277.74
You save $49.01
2
Yamaha Motors
Engine Hanger6H1-14302-0B-00
Required: 1
CARBURETOR ASSY 2
Supersedes: 6H1-14302-07-00
$254.95
You save $64.15
3
Yamaha Motors
CARBURETOR ASSY 36H1-14303-0B-00
Required: 1
CARBURETOR ASSY 3
Supersedes: 6H1-14303-07-00
$337.95
You save $84.35
4
Yamaha Motors
Screw With Washer97980-04114-00
Required: 21
.SCREW, WITH WASHER
In stock
5+ in stock
$4.55
You save $0.80
$8.64
You save $2.16
6
Yamaha Motors
Compression Spring90501-10326-00
Required: 1
.SPRING, COMPRESSION
$5.92
You save $1.48
In stock
Only 2 remaining
$11.36
You save $2.84
$19.55
You save $3.45
$63.28
You save $11.17
In stock
5+ in stock
$9.24
You save $2.31
11
Yamaha Motors
Pilot Screw692-14923-00-00
Required: 3
.SCREW, PILOT
$21.92
You save $5.48
In stock
5+ in stock
$2.76
You save $0.69
In stock
5+ in stock
$5.36
You save $1.34
14
Yamaha Motors
Needle Valve Assembly692-14590-01-00
Required: 3
.VALVE SEAT
Supersedes: 692-14590-00-00
$29.50
You save $5.21
15
Yamaha Motors
Float Arm Pin6H4-14548-00-00
Required: 3
.PIN, FLOAT ARM
$8.20
You save $1.45
16
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.60
You save $0.40
17
Yamaha Motors
Clip633-14159-00-00
Required: 3
.CLIP
Supersedes: 663-14159-00-00
$13.19
You save $3.30
In stock
Only 3 remaining
$6.48
You save $1.62
In stock
5+ in stock
$20.28
You save $5.07
$23.80
You save $4.20
21
Yamaha Motors
Main Jet (#160)6H1-14943-39-00
Required: 3
.JET, MAIN (#160)
In stock
5+ in stock
$11.44
You save $2.86
In stock
Only 4 remaining
$7.28
You save $1.82
In stock
Only 3 remaining
$13.56
You save $3.39
24
Yamaha Motors
Float Chamber Gasket6H4-14984-00-00
Required: 3
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$9.88
You save $2.47
25
Yamaha Motors
SCREW, DRAIN6H3-14992-01-00
Required: 3
.SCREW, DRAIN
Supersedes: 6H3-14992-00-00
In stock
5+ in stock
$17.08
You save $4.27
In stock
5+ in stock
$7.59
You save $1.90
27
Yamaha Motors
Float Chamber Body6H4-14980-00-00
Required: 2
.BODY, FLOAT CHAMBER
$42.00
You save $10.50
28
Yamaha Motors
Float Chamber Body6H3-14980-11-00
Required: 1
.BODY, FLOAT CHAMBER
Supersedes: 6H3-14980-10-00
$97.95
You save $17.10
In stock
Only 4 remaining
$58.08
You save $14.52
30
Yamaha Motors
Screw (M8 X 40)6H4-14567-09-00
Required: 4
.SCREW
Supersedes: 6H4-14567-00-00
$6.60
You save $1.65
31
Yamaha Motors
Clip5BF-14919-00-00
Required: 2
.CLIP
Supersedes: 6H3-14137-00-00
$3.44
You save $0.86
$4.44
You save $1.11
33
PRIME STARTER ASSY6H3-14380-02-00
Required: 1
.STARTER ASSY
Supersedes: 6H3-14380-00-00
In stock
Only 4 remaining
$228.95
You save $40.00
34
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.60
You save $0.40
In stock
Only 3 remaining
$1.48
You save $0.37
$3.52
You save $0.88
37
Yamaha Motors
Check Valve6L5-24421-00-00
Required: 2
.VALVE, CHECK
In stock
Only 5 remaining
$6.56
You save $1.64
In stock
Only 1 remaining
$39.84
You save $9.96
39
Yamaha Motors
O-Ring67F-14398-20-00
Required: 1
.O-RING
Supersedes: 6H4-24486-00-00
In stock
5+ in stock
$4.44
You save $1.11
In stock
Only 5 remaining
$9.12
You save $2.28
41
Yamaha Motors
Body Gasket6H3-24434-10-00
Required: 2
.GASKET, BODY
In stock
5+ in stock
$10.04
You save $2.51
$7.22
You save $1.27
43
Yamaha Motors
Bolt with Washer97513-06512-00
Required: 1
BOLT, WITH WASHER
$1.70
You save $0.30
44
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.28
You save $0.57
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
