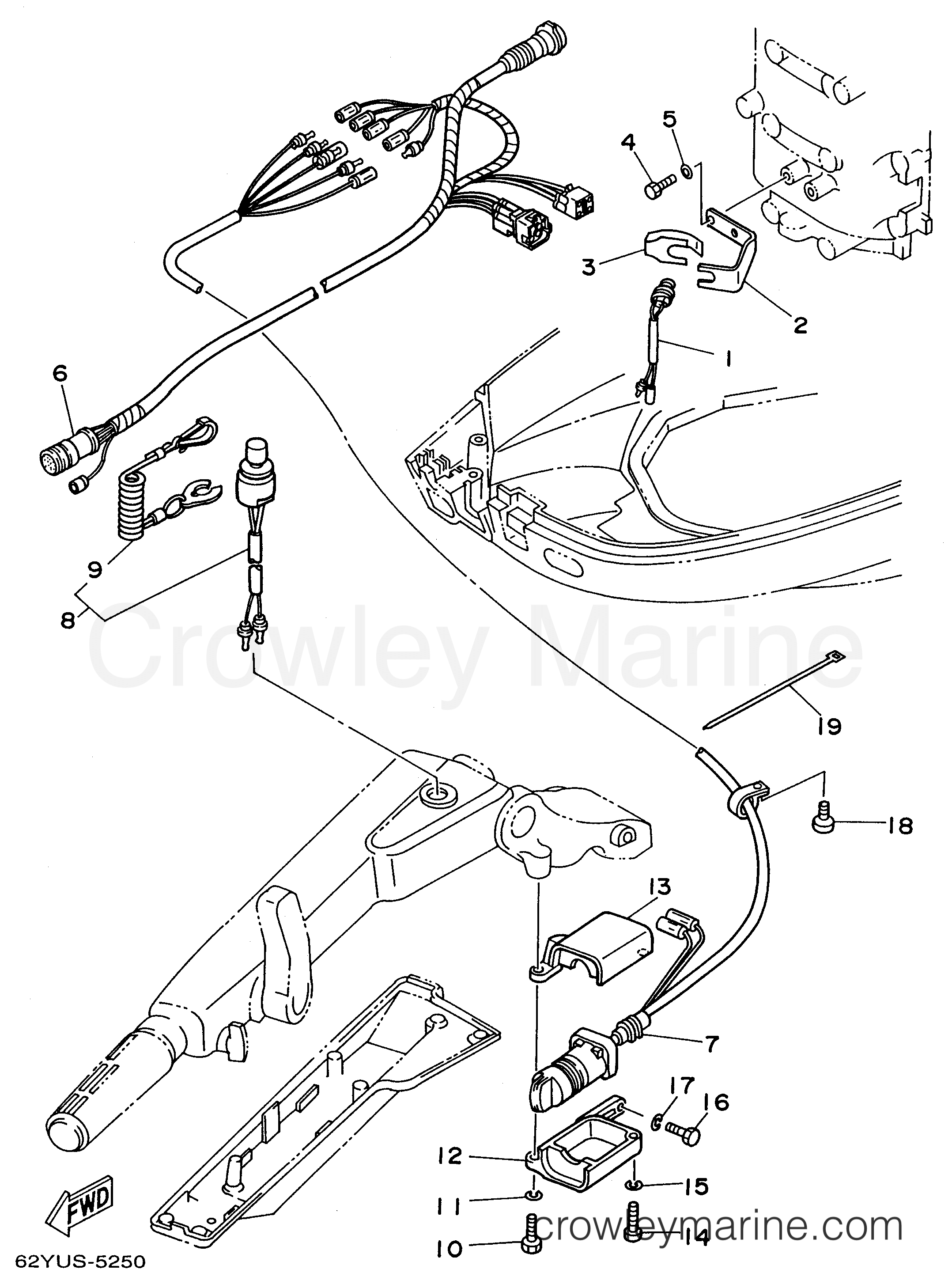

1996 Outboard 50hp - T50TLRU ELECTRICAL 3 (TH) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors T50TLRU - ELECTRICAL 3 (TH)
Change View:
Obsolete Yamaha Part
2
Yamaha Motors
Obsolete Yamaha Part62Y-82554-01-00
Required: 1
STAY, NEUTRAL ASSY
Supersedes: 62Y-82554-00-00
Cross Ship
Leaves in 2-5 days
$6.40
$5.44
You save $0.96
More details
Main Switch Damper
3
Yamaha Motors
Main Switch Damper62Y-82555-00-00
Required: 1
DAMPER, MAIN SWITCH 1
Cross Ship
Leaves in 2-5 days
$11.75
$9.99
You save $1.76
More details
Wire Harness Extension
6
Yamaha Motors
Wire Harness Extension6H2-82586-01-00
Required: 1
EXTENSION, WIRE HARNESS
Cross Ship
Leaves in 2-5 days
$469.15
$398.78
You save $70.37
More details
Main Switch Assembly TE, TP
7
Yamaha Motors
Main Switch Assembly TE, TP67G-82510-31-00
Required: 1
MAIN SWITCH ASSY
Supersedes: 6H5-82510-00-00
Cross Ship
Leaves in 2-5 days
$193.10
$164.13
You save $28.97
More details
Obsolete Yamaha Part
8
Yamaha Motors
Obsolete Yamaha Part699-82575-09-00
Required: 1
ENGINE STOP SWITCH ASSY
Supersedes: 63D-82575-00-00
Cross Ship
Leaves in 2-5 days
$91.70
$77.95
You save $13.75
More details
BOLT
10
Yamaha Motors
BOLT97095-06025-00
Required: 1
BOLT
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
Main Switch Cover
12
Yamaha Motors
Main Switch Cover63D-8252F-00-4D
Required: 1
COVER, MAIN SWITCH
Cross Ship
Leaves in 2-5 days
Price unavailable
More details
Main Switch Cover
13
Yamaha Motors
Main Switch Cover63D-8252E-00-4D
Required: 1
COVER, MAIN SWITCH
Cross Ship
Leaves in 2-5 days
Price unavailable
More details
Pan Head Screw
18
Yamaha Motors
Pan Head Screw97885-06012-00
Required: 1
SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$3.35
$2.85
You save $0.50
More details
