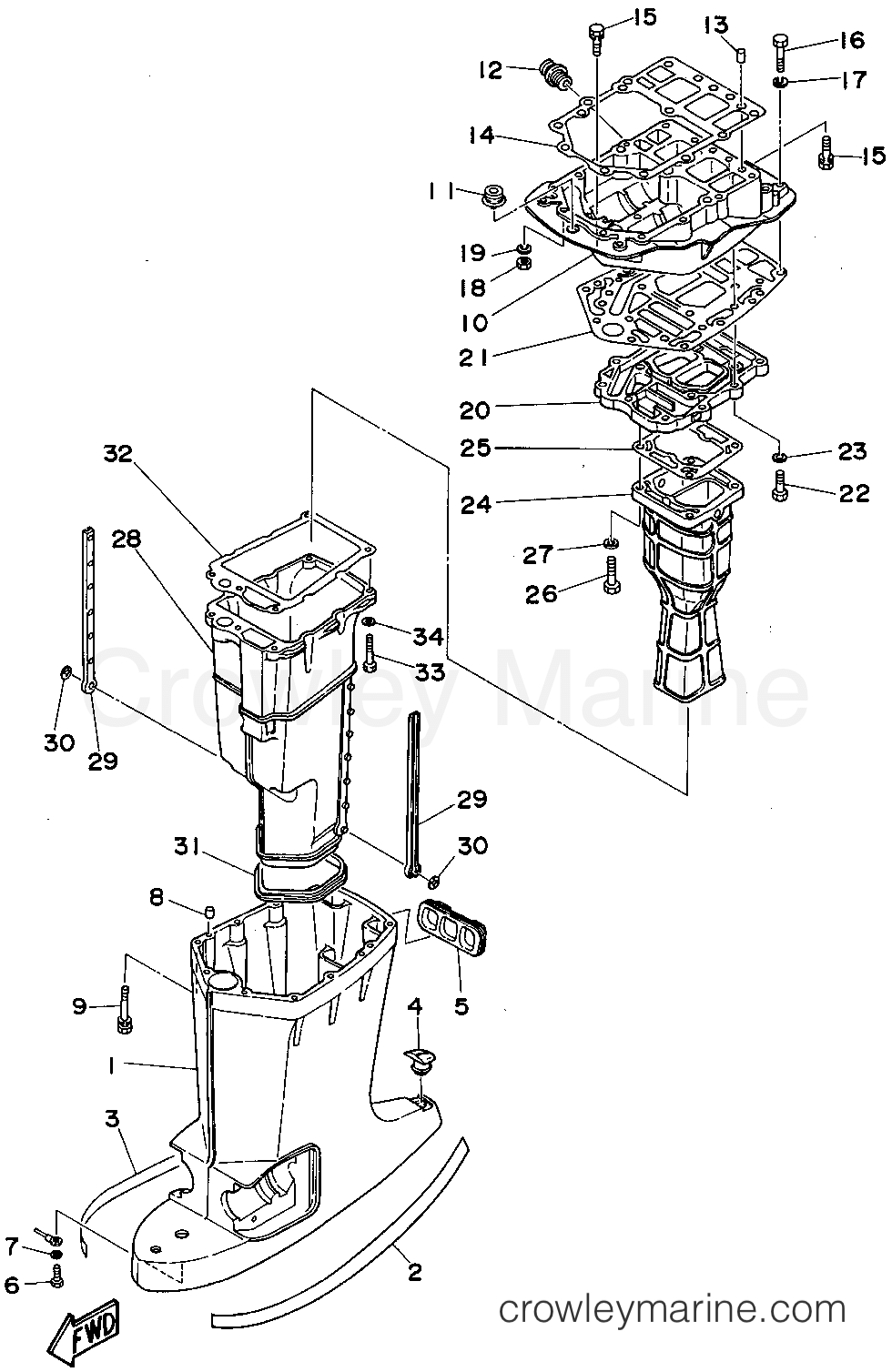

1996 Outboard 115hp - P115TLRU UPPER CASING diagram
1
Yamaha Motors
Upper Casing6E5-45111-02-8D
Required: 1
CASING, UPPER
Supersedes: 6E5-45111-00-8D
$658.32
You save $116.18
2
Yamaha Motors
Mark 16N9-42791-41-00
Required: 1
MARK 1
Supersedes: 6N9-42791-40-00
In stock
Only 1 remaining
$12.83
You save $2.27
3
Yamaha Motors
Mark6N9-42792-41-00
Required: 1
MARK 2
Supersedes: 6N9-42792-40-00
In stock
Only 1 remaining
$7.40
You save $1.31
In stock
5+ in stock
$14.88
You save $2.63
5
Yamaha Motors
Rubber Seal6E5-42769-01-00
Required: 1
SEAL, RUBBER
Supersedes: 6E5-42769-00-00
In stock
Only 2 remaining
$32.09
You save $5.66
$5.09
You save $0.90
7
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 2 remaining
$8.84
You save $1.56
9
Yamaha Motors
Bolt with Washer90119-08M78-00
Required: 6
BOLT, WITH WASHER
$16.45
You save $2.90
10
Yamaha Motors
Exhaust Guide6G5-41137-02-CA
Required: 1
GUIDE, EXHAUST
Supersedes: 6G5-41137-01-94
$311.06
You save $54.89
11
Yamaha Motors
GROMMET, WATER TUBE (UPPER)6E5-42724-01-00
Required: 1
GROMMET
Supersedes: 6E5-42724-00-00
$12.45
You save $2.20
12
Yamaha Motors
Hose Joint6G5-12581-00-00
Required: 1
JOINT, HOSE 1
In stock
Only 3 remaining
$18.79
You save $3.32
In stock
Only 2 remaining
$8.84
You save $1.56
14
Yamaha Motors
Upper Casing Gasket6G5-45113-A2-00
Required: 1
GASKET, UPPER CASING
Supersedes: 6G5-45113-A0-00
In stock
Only 2 remaining
$33.62
You save $5.93
15
Yamaha Motors
Washer with bolt97575-08430-00
Required: 6
BOLT, WITH WASHER
Supersedes: 90119-08M79-00
$3.91
You save $0.69
16
Yamaha Motors
Bolt97095-08045-00
Required: 2
BOLT
Supersedes: 97395-08045-00
In stock
Only 4 remaining
$2.63
You save $0.47
17
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER
Supersedes: 92995-08100-00
$4.76
You save $0.84
In stock
Only 2 remaining
$3.02
You save $0.53
19
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
$4.76
You save $0.84
20
Yamaha Motors
Exhaust Manifold6G5-41131-01-CA
Required: 1
MANIFOLD, EXT. 1
Supersedes: 6G5-41131-01-5B
$124.18
You save $21.92
21
Yamaha Motors
Upper Casing Gasket6G5-45114-A1-00
Required: 1
GASKET, UPPER CASING
Supersedes: 6G5-45114-A0-00
In stock
Only 1 remaining
$21.17
You save $3.73
22
Yamaha Motors
Bolt97080-08030-00
Required: 4
BOLT
Supersedes: 97395-08030-00
In stock
5+ in stock
$3.91
You save $0.69
23
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
24
Yamaha Motors
Exhaust Manifold6E5-41132-10-5B
Required: 1
MANIFOLD, EXHAUST
$59.20
You save $10.45
25
Yamaha Motors
Exhaust Manifold Gasket6E5-41134-A0-00
Required: 1
.GASKET, EXHAUST MANIFOLD
$5.44
You save $0.96
26
Yamaha Motors
Bolt97095-08045-00
Required: 4
BOLT
Supersedes: 97395-08045-00
In stock
Only 4 remaining
$2.63
You save $0.47
27
Yamaha Motors
Plate Washer92990-08600-00
Required: 4
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
28
Yamaha Motors
Muffler6E5-14711-01-CA
Required: 1
MUFFLER 1
Supersedes: 6E5-14711-01-5B
$246.88
You save $43.57
29
Yamaha Motors
Muffler Damper6E5-14737-00-00
Required: 2
DAMPER, MUFFLER
$23.42
You save $4.13
In stock
Only 1 remaining
$0.42
You save $0.08
31
Yamaha Motors
Muffler Gasket6E5-45123-00-00
Required: 1
.GASKET, MUFFLER
$36.42
You save $6.43
32
Yamaha Motors
Exhaust Manifold Gasket6E5-41135-A0-00
Required: 1
.GASKET, EXHAUST MANIFOLD
In stock
Only 1 remaining
$5.70
You save $1.00
33
Yamaha Motors
Bolt97095-08045-00
Required: 5
BOLT
Supersedes: 97395-08045-00
In stock
Only 4 remaining
$2.63
You save $0.47
34
Yamaha Motors
Plate Washer92990-08600-00
Required: 5
WASHER
Supersedes: 92995-08600-00
In stock
5+ in stock
$2.29
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
