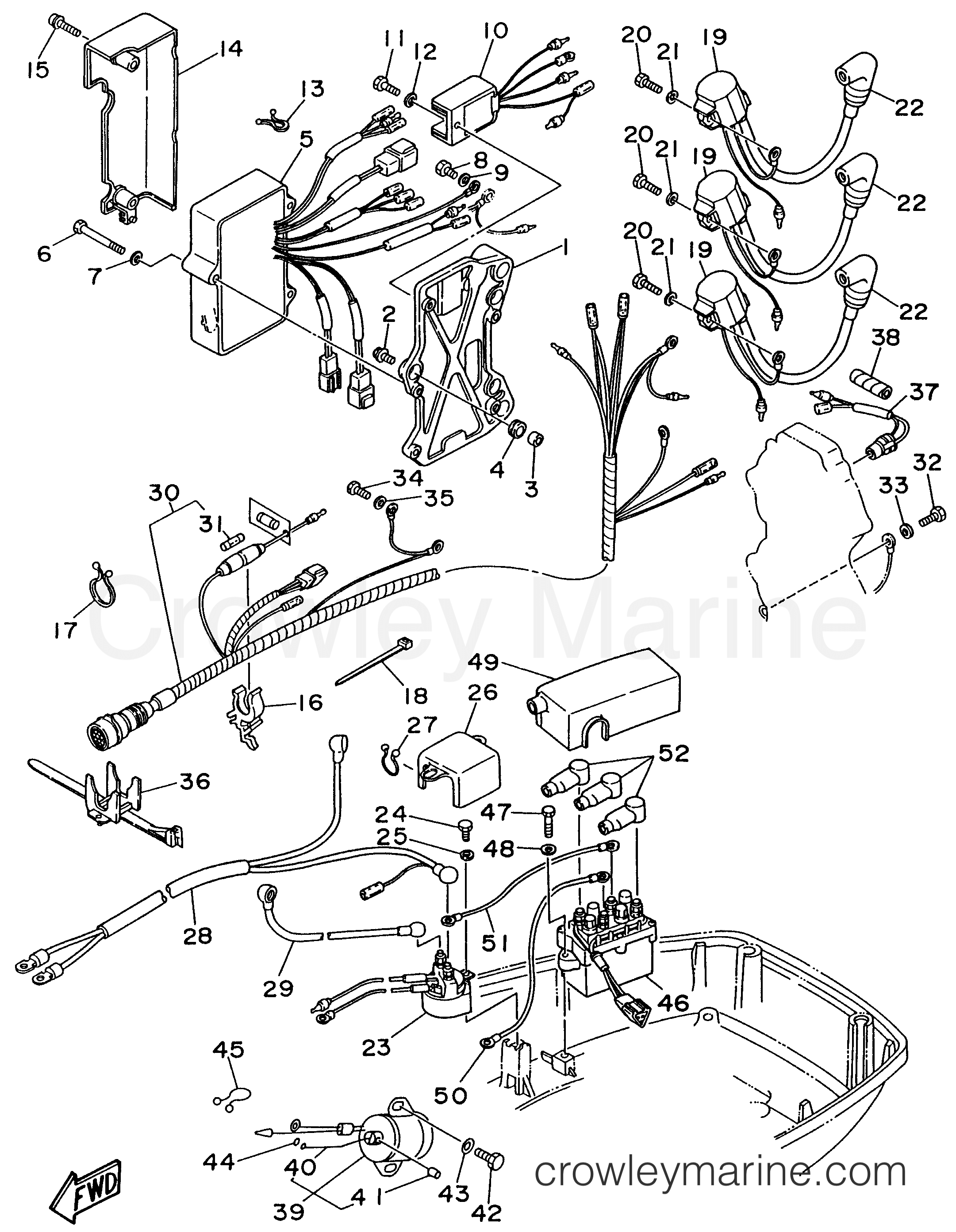

1996 Outboard 60hp - C60ELRU ELECTRICAL 1 diagram

1
Yamaha Motors
Bracket6H3-85542-11-00
Required: 1
BRACKET
Supersedes: 6H3-85542-11-94
$50.36
You save $8.89
$1.27
You save $0.22
$7.52
You save $1.33
$5.23
You save $0.92

5
Yamaha Motors
C.D.I. PUSH TO OPEN THROTTLE6H2-85540-13-00
Required: 1
C.D.I. PUSH TO OPEN THROTTLE
$690.33
You save $121.82

6
Yamaha Motors
BOLT, HEXAGON W/W DE97E95-06550-00
Required: 3
BOLT, WITH WASHER
Supersedes: 97595-06550-00
$1.57
You save $0.28

7
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43

8
Yamaha Motors
.BOLT97313-06012-00
Required: 1
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32

9
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43

10
Yamaha Motors
Rectifier & Regulator Assembly6H2-81960-00-00
Required: 1
RECTIFIER & REGULATOR ASSY
In stock
Only 1 remaining
$111.69
You save $19.71
$2.35
You save $0.41

12
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
Only 1 remaining
$2.55
You save $0.45

14
Yamaha Motors
Terminal Cover6H3-81916-10-00
Required: 1
COVER, TERMINAL
$16.79
You save $2.96

15
Yamaha Motors
Screw With Washer90159-06M01-00
Required: 2
SCREW, WITH WASHER
$5.82
You save $1.03
$6.08
You save $1.07

17
Yamaha Motors
Clamp90464-25267-00
Required: 1
CLAMP
Supersedes: 90464-23M22-00
In stock
Only 1 remaining
$7.22
You save $1.27
In stock
Only 2 remaining
$7.22
You save $1.27

19
Yamaha Motors
Ignition Coil Assembly697-85570-00-00
Required: 3
IGNITION COIL ASSY
In stock
5+ in stock
$85.42
You save $15.08

20
Yamaha Motors
Bolt97080-06020-00
Required: 3
BOLT
Supersedes: 97095-06020-00
In stock
5+ in stock
$3.82
You save $0.68

21
Yamaha Motors
Plate Washer92990-06600-00
Required: 3
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43

22
Yamaha Motors
Plug Cap Assembly6G1-82370-21-00
Required: 3
PLUG CAP ASSEMBLY.
Supersedes: 6G1-82370-20-00
In stock
Only 3 remaining
$30.30
You save $5.35
$115.09
You save $20.31
$2.35
You save $0.41

25
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43

26
Yamaha Motors
CASE 26H3-82164-01-00
Required: 1
CASE 2
Supersedes: 6H3-82164-00-00
$12.54
You save $2.21
In stock
Only 1 remaining
$8.92
You save $1.57

28
Yamaha Motors
BATTERY CABLE66T-82105-J2-00
Required: 1
BATTERY CABLE
Supersedes: 6H3-82105-01-00
$126.18
You save $22.27

29
Yamaha Motors
WIRE, LEAD6H3-82117-01-00
Required: 1
WIRE, LEAD
Supersedes: 6H3-82117-00-00
$21.04
You save $3.71

30
Yamaha Motors
Wire Harness Assembly6H2-82590-60-00
Required: 1
WIRE HARNESS ASSEMBLY
$274.68
You save $48.47

30
Yamaha Motors
Wire Harness Assembly6H2-82590-50-00
Required: 1
WIRE HARNESS ASSEMBLY
$195.97
You save $34.58

31
Yamaha Motors
Fuse (12V/10A)682-82151-01-00
Required: 1
.FUSE (12V-20A)
Supersedes: 682-82151-00-00
$2.17
You save $0.38

32
Yamaha Motors
.BOLT97313-06012-00
Required: 1
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32

33
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43

34
Yamaha Motors
.BOLT97313-06012-00
Required: 2
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32

35
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
$9.82
You save $1.73

37
Yamaha Motors
Thermo Switch Assembly688-82560-10-00
Required: 1
THERMO SWITCH ASSY
In stock
5+ in stock
$41.52
You save $7.33

38
Yamaha Motors
Hose (L60)90446-10M01-00
Required: 1
HOSE
Supersedes: 90446-10M02-00
In stock
Only 3 remaining
$6.54
You save $1.16
$123.72
You save $21.83
$9.82
You save $1.73
In stock
Only 1 remaining
$5.23
You save $0.92
$1.53
You save $0.27

43
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$5.82
You save $1.03
$7.22
You save $1.27

46
Yamaha Motors
Relay Assembly61A-81950-01-00
Required: 1
RELAY ASSY
Supersedes: 61A-81950-00-00
In stock
Only 3 remaining
$229.71
You save $40.54
$2.85
You save $0.50

48
Yamaha Motors
Plate Washer92990-06600-00
Required: 2
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43

49
Yamaha Motors
CASE6H3-82154-12-00
Required: 1
CASE
Supersedes: 6H3-82154-11-00
$11.77
You save $2.08
In stock
Only 1 remaining
$15.38
You save $2.71
$9.95
You save $1.76

52
Yamaha Motors
Lead Wire Cover6G5-82119-10-00
Required: 3
COVER, LEAD WIRE
Supersedes: 682-82119-01-00
In stock
Only 2 remaining
$8.84
You save $1.56
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
