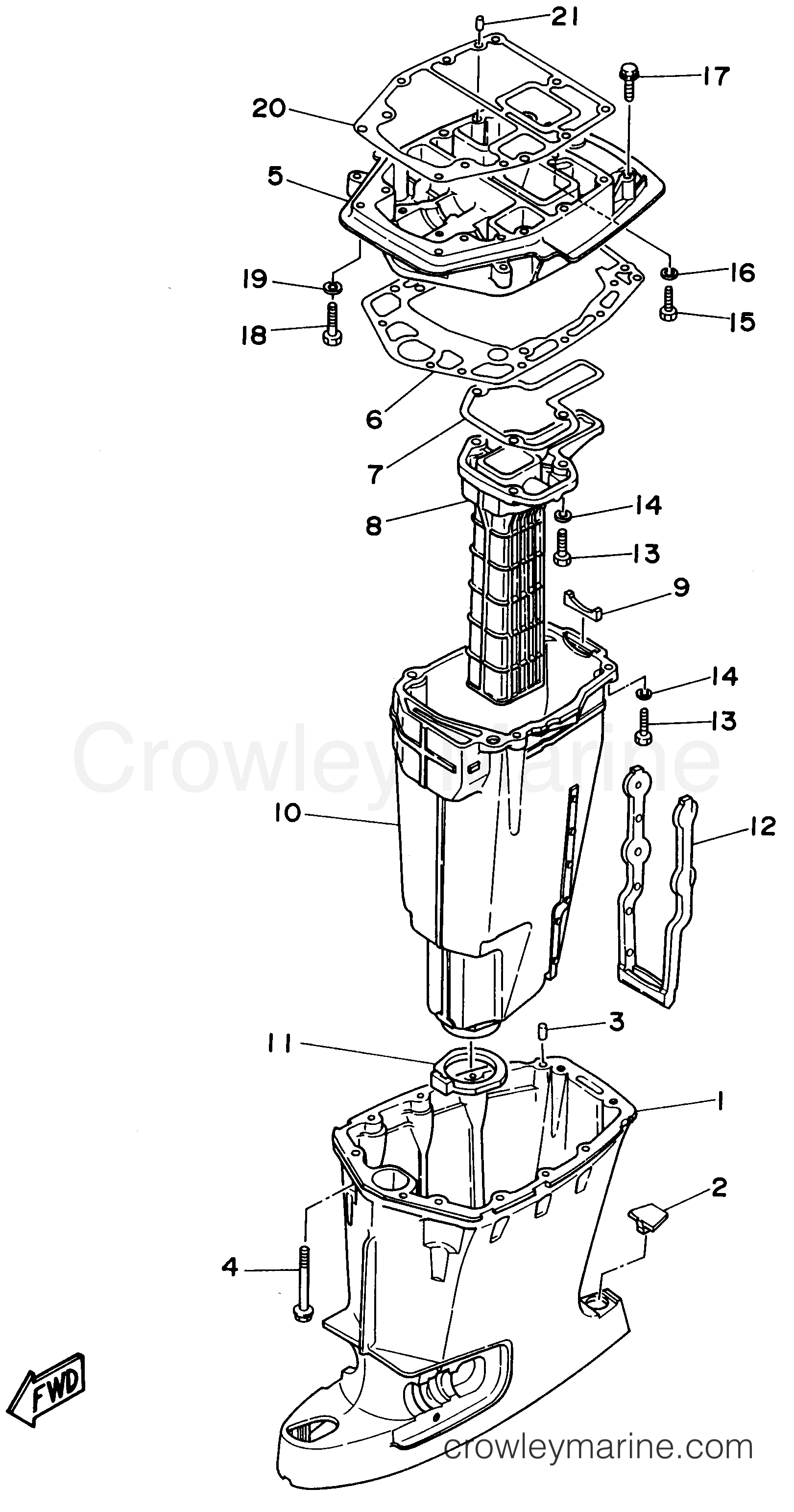

1996 Outboard 90hp - 90TLRU UPPER CASING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 90TLRU - UPPER CASING
Change View:
Upper Casing
1
Yamaha Motors
Upper Casing688-45111-04-8D
Required: 1
CASING, UPPER
Supersedes: 688-45111-04-4D
Cross Ship
Leaves in 2-5 days
$514.40
$437.24
You save $77.16
More details
Bolt with Washer
4
Yamaha Motors
Bolt with Washer90119-08M80-00
Required: 8
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$8.99
$7.64
You save $1.35
More details
Exhaust Guide
5
Yamaha Motors
Exhaust Guide688-41137-03-94
Required: 1
GUIDE, EXHAUST
Cross Ship
Leaves in 2-5 days
$312.90
$265.97
You save $46.94
More details
Exhaust Manifold
8
Yamaha Motors
Exhaust Manifold688-41131-00-CA
Required: 1
MANIFOLD, EXT. 1
Supersedes: 688-41131-00-5B
Cross Ship
Leaves in 2-5 days
$62.50
$53.13
You save $9.38
More details
GASKET, EXHAUST MANIFOLD 1
9
Yamaha Motors
GASKET, EXHAUST MANIFOLD 1688-41133-01-00
Required: 1
GASKET, EXHAUST MANIFOLD 1
Supersedes: 688-41133-00-00
Cross Ship
Leaves in 2-5 days
$11.40
$9.69
You save $1.71
More details
Muffler
10
Yamaha Motors
Muffler688-14711-01-CA
Required: 1
MUFFLER 1
Supersedes: 688-14711-01-5B
Cross Ship
Leaves in 2-5 days
$201.80
$171.53
You save $30.27
More details
Muffler Damper
12
Yamaha Motors
Muffler Damper663-14737-10-00
Required: 1
DAMPER, MUFFLER
Cross Ship
Leaves in 2-5 days
$37.35
$31.75
You save $5.60
More details
Spring Washer
14
Yamaha Motors
Spring Washer92990-08100-00
Required: 7
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
Spring Washer
16
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
Washer with bolt
17
Yamaha Motors
Washer with bolt97575-08430-00
Required: 2
BOLT, WITH WASHER
Supersedes: 90119-08M79-00
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
Spring Washer
19
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
