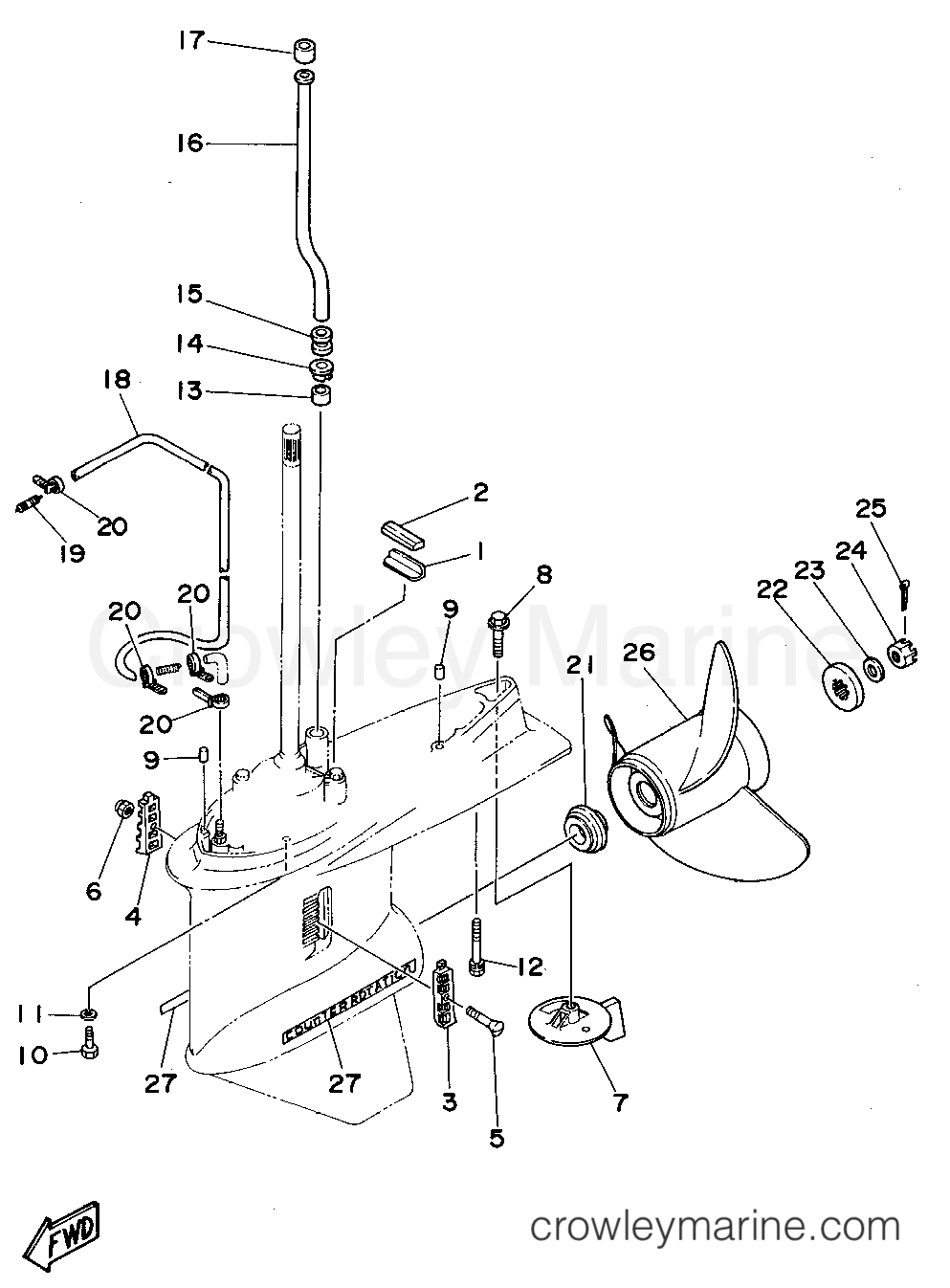

1995 Outboard 130hp - L130TXRT LOWER CASING DRIVE 4 (L130TR) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors L130TXRT - LOWER CASING DRIVE 4 (L130TR)
Change View:
Countersunk Screw
5
Yamaha Motors
Countersunk Screw90152-05M07-00
Required: 1
SCREW, COUNTERSUNK
Supersedes: 90142-05M03-00
Cross Ship
Leaves in 2-5 days
$4.75
$4.04
You save $0.71
More details
Trim Tab
7
Yamaha Motors
Trim Tab6L6-45371-00-00
Required: 1
TAB, TRIM
Cross Ship
Leaves in 2-5 days
$40.45
$34.38
You save $6.07
More details
Water Tube
16
Yamaha Motors
Water Tube6E5-44361-20-00
Required: 1
TUBE, WATER 1
Cross Ship
Leaves in 2-5 days
$59.25
$50.36
You save $8.89
More details
Hose (L1160)
18
Yamaha Motors
Hose (L1160)90445-07M21-00
Required: 1
HOSE (L1030)
Supersedes: 90445-07MF0-00
Cross Ship
Leaves in 2-5 days
$12.85
$10.92
You save $1.93
More details
Painted Stainless Steel Prop - 3 Blade 13x21LH Stainless Steel
26
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x21LH Stainless Steel6L6-45972-00-00
Required: 1
PROPELLER (3X13"X21"-KL)
Supersedes: 6L6-45972-00-98
Cross Ship
Leaves in 2-5 days
$791.00
$672.35
You save $118.65
More details
Painted Stainless Steel Prop - 3 Blade 13x19LH Stainless Steel
26
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13x19LH Stainless Steel6L6-45970-00-00
Required: 1
PROPELLER (3X13"X19"-KL)
Supersedes: 6L6-45970-00-98
Cross Ship
Leaves in 2-5 days
$791.00
$672.35
You save $118.65
More details
Propeller (3X13"X17"-KL)
26
Yamaha Motors
Propeller (3X13"X17"-KL)6L6-45930-01-98
Required: 1
PROPELLER, BLACK SS (17 X 13"-KL)
Supersedes: 6L6-45930-00-98
Cross Ship
Leaves in 2-5 days
$791.00
$672.35
You save $118.65
More details
Lower Graphic
27
Yamaha Motors
Lower Graphic6K1-45392-00-00
Required: 2
GRAPHIC, LOWER
Cross Ship
Leaves in 2-5 days
$21.00
$17.85
You save $3.15
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
