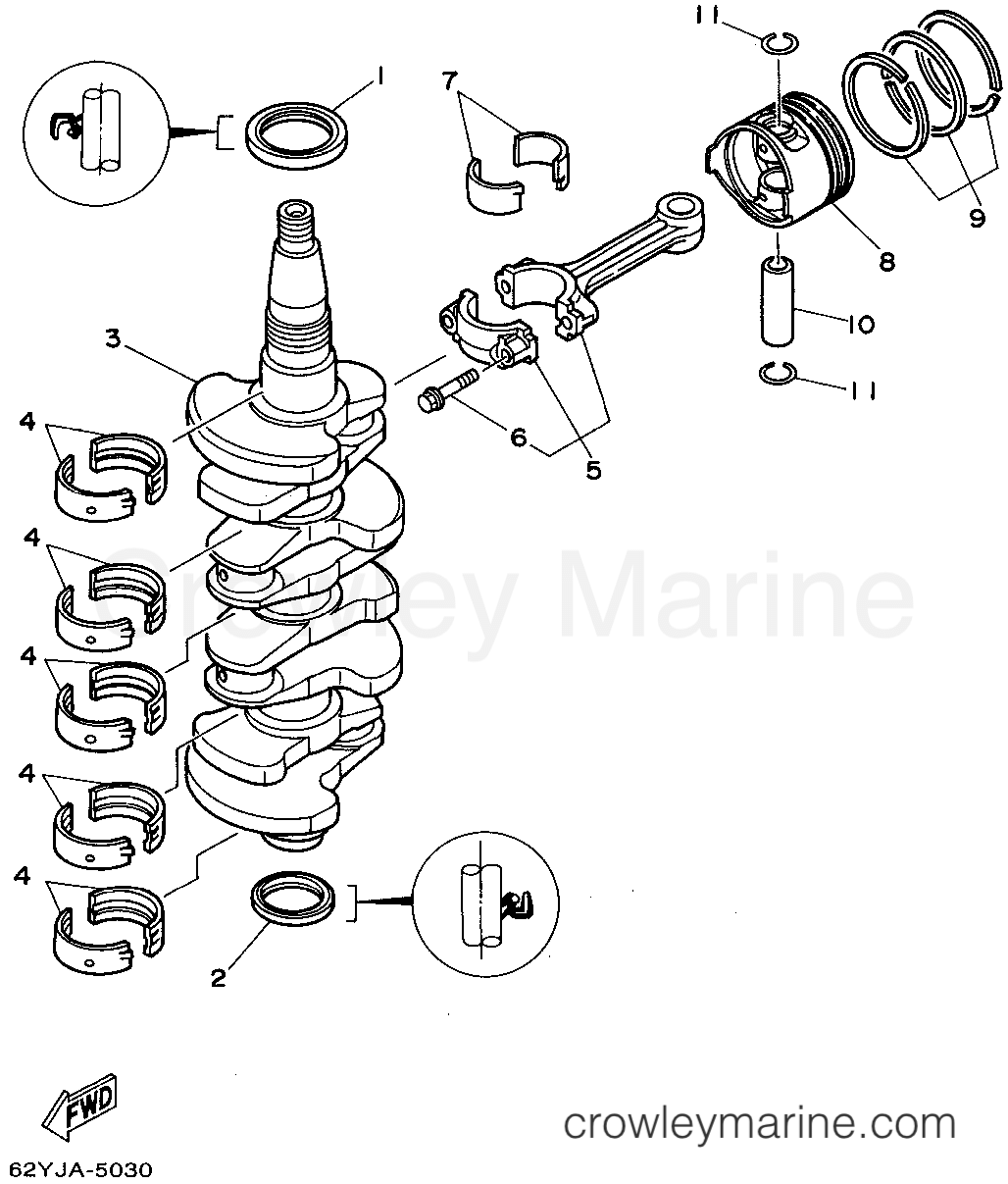

1995 Outboard 50hp - F50TLHT CRANKSHAFT PISTON diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors F50TLHT - CRANKSHAFT PISTON
Change View:
CRANKSHAFT & NUT SET
3
Yamaha Motors
CRANKSHAFT & NUT SET99999-03960-00
Required: 1
CRANKSHAFT
Supersedes: 62Y-11411-00-00
Cross Ship
Leaves in 2-5 days
$1294.75
$1100.54
You save $194.21
More details
Crankshaft Plane Bearing
4
Yamaha Motors
Crankshaft Plane Bearing62Y-11416-10-00
Required: 10
PLANE BEARING, CRANKSHAFT 1
Cross Ship
Leaves in 2-5 days
$7.60
$6.46
You save $1.14
More details
Crankshaft Plane Bearing
4
Yamaha Motors
Crankshaft Plane Bearing62Y-11416-20-00
Required: 10
PLANE BEARING, CRANKSHAFT 1
Cross Ship
Leaves in 2-5 days
$9.20
$7.82
You save $1.38
More details
CONNECTING ROD Assembly
5
Yamaha Motors
CONNECTING ROD Assembly 62Y-11650-10-00
Required: 4
CONNECTING ROD ASSEMBLY
Supersedes: 62Y-11650-00-00
Cross Ship
Leaves in 2-5 days
$180.75
$153.64
You save $27.11
More details
Connecting Rod Bolt
6
Yamaha Motors
Connecting Rod Bolt6C5-11654-00-00
Required: 2
.BOLT, CONNECTING ROD
Supersedes: 62Y-11654-00-00
Cross Ship
Leaves in 2-5 days
$7.30
$6.21
You save $1.10
More details
PLANE BEARING, CONNECTING ROD
7
Yamaha Motors
PLANE BEARING, CONNECTING ROD62Y-11656-21-00
Required: 8
PLANE BEARING, CONNECTING ROD
Supersedes: 62Y-11656-20-00
Cross Ship
Leaves in 2-5 days
$15.05
$12.79
You save $2.26
More details
PLANE BEARING, CONNECTING ROD
7
Yamaha Motors
PLANE BEARING, CONNECTING ROD62Y-11656-11-00
Required: 8
PLANE BEARING, CONNECTING ROD
Supersedes: 62Y-11656-10-00
Cross Ship
Leaves in 2-5 days
$10.20
$8.67
You save $1.53
More details
PLANE BEARING, CONNECTING ROD
7
Yamaha Motors
PLANE BEARING, CONNECTING ROD62Y-11656-01-00
Required: 8
PLANE BEARING, CONNECTING ROD
Supersedes: 62Y-11656-00-00
Cross Ship
Leaves in 2-5 days
$15.30
$13.00
You save $2.29
More details
Piston (0.50MM O/S)
8
Yamaha Motors
Piston (0.50MM O/S)62Y-11636-00-00
Required: 4
PISTON (0.50MM O/S)
Cross Ship
Leaves in 2-5 days
$76.25
$64.81
You save $11.44
More details
Piston (Standard)
8
Yamaha Motors
Piston (Standard)62Y-11631-00-96
Required: 4
PISTON (STD)
Cross Ship
Leaves in 2-5 days
$65.00
$55.25
You save $9.75
More details
Piston Ring Set (Standard)
9
Yamaha Motors
Piston Ring Set (Standard)62Y-11603-00-00
Required: 4
PISTON RING SET (STD)
Cross Ship
Leaves in 2-5 days
$44.45
$37.78
You save $6.67
More details
Piston Ring Set (0.50Mm O/S)
9
Yamaha Motors
Piston Ring Set (0.50Mm O/S)62Y-11605-00-00
Required: 4
PISTON RING SET (0.50MM O/S)
Cross Ship
Leaves in 2-5 days
$48.05
$40.84
You save $7.21
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
