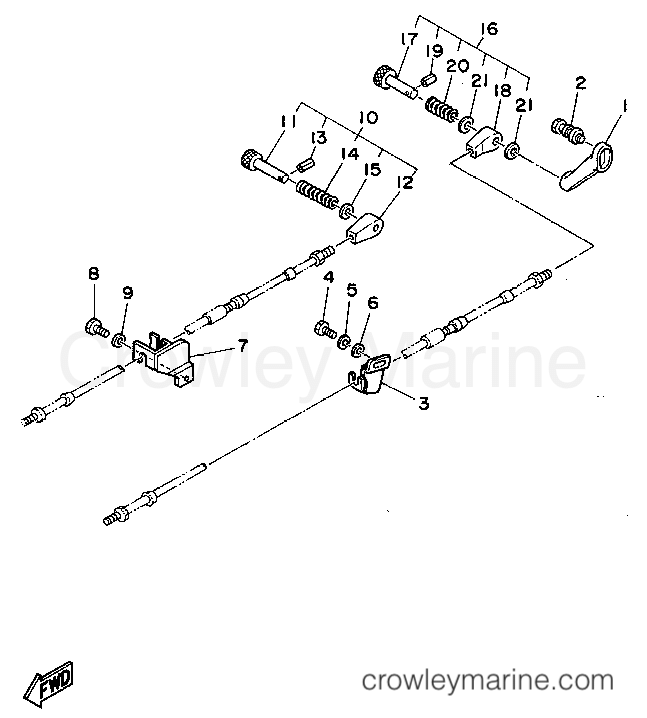

1995 Outboard 40hp - C40PLRT REMOTE CONTROL ATTACHMENT diagram

1
Yamaha Motors
Throttle Control Lever676-48534-00-4D
Required: 1
THROTTLE LEVER, CONTROL
$19.59
You save $3.46

2
Yamaha Motors
Bolt with Washer90119-06M41-00
Required: 1
BOLT, WITH WASHER
Supersedes: 90119-06M58-00
$2.51
You save $0.44

3
Yamaha Motors
Remote Control Bracket6R6-48532-00-00
Required: 1
BRACKET, REMOTE CONTROL 2
$20.23
You save $3.57
$2.35
You save $0.41

5
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52

6
Yamaha Motors
Plain Washer92990-06200-00
Required: 1
.WASHER, PLAIN
$0.85
You save $0.15

7
Yamaha Motors
Remote Control Bracket676-48531-00-00
Required: 1
BRACKET, REMOTE CONTROL 1
$17.21
You save $3.04
$2.35
You save $0.41

9
Yamaha Motors
Spring Washer92995-06100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52

10
Yamaha Motors
Cable End Assembly648-48330-50-00
Required: 1
.CABLE END ASSY
$29.84
You save $5.27
$18.53
You save $3.27

12
Yamaha Motors
Remote Control Cable End648-48346-50-00
Required: 1
.CABLE END, REMOTE CONTROL
$11.35
You save $2.00
In stock
Only 1 remaining
$4.72
You save $0.83

14
Yamaha Motors
Compression Spring90501-10071-00
Required: 1
.SPRING, COMPRESSION
$6.54
You save $1.16

15
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
.WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41

16
Yamaha Motors
Cable End Assembly648-48340-50-00
Required: 1
.CABLE END ASSY
$28.65
You save $5.05
$16.19
You save $2.86

18
Yamaha Motors
Remote Control Cable End617-48346-90-00
Required: 1
.CABLE END, REMOTE CONTROL
$12.03
You save $2.12
In stock
Only 1 remaining
$4.72
You save $0.83

20
Yamaha Motors
Compression Spring90501-10264-00
Required: 1
.SPRING, COMPRESSION
In stock
Only 1 remaining
$6.88
You save $1.21

21
Yamaha Motors
Plate Washer92990-08600-00
Required: 2
.WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
