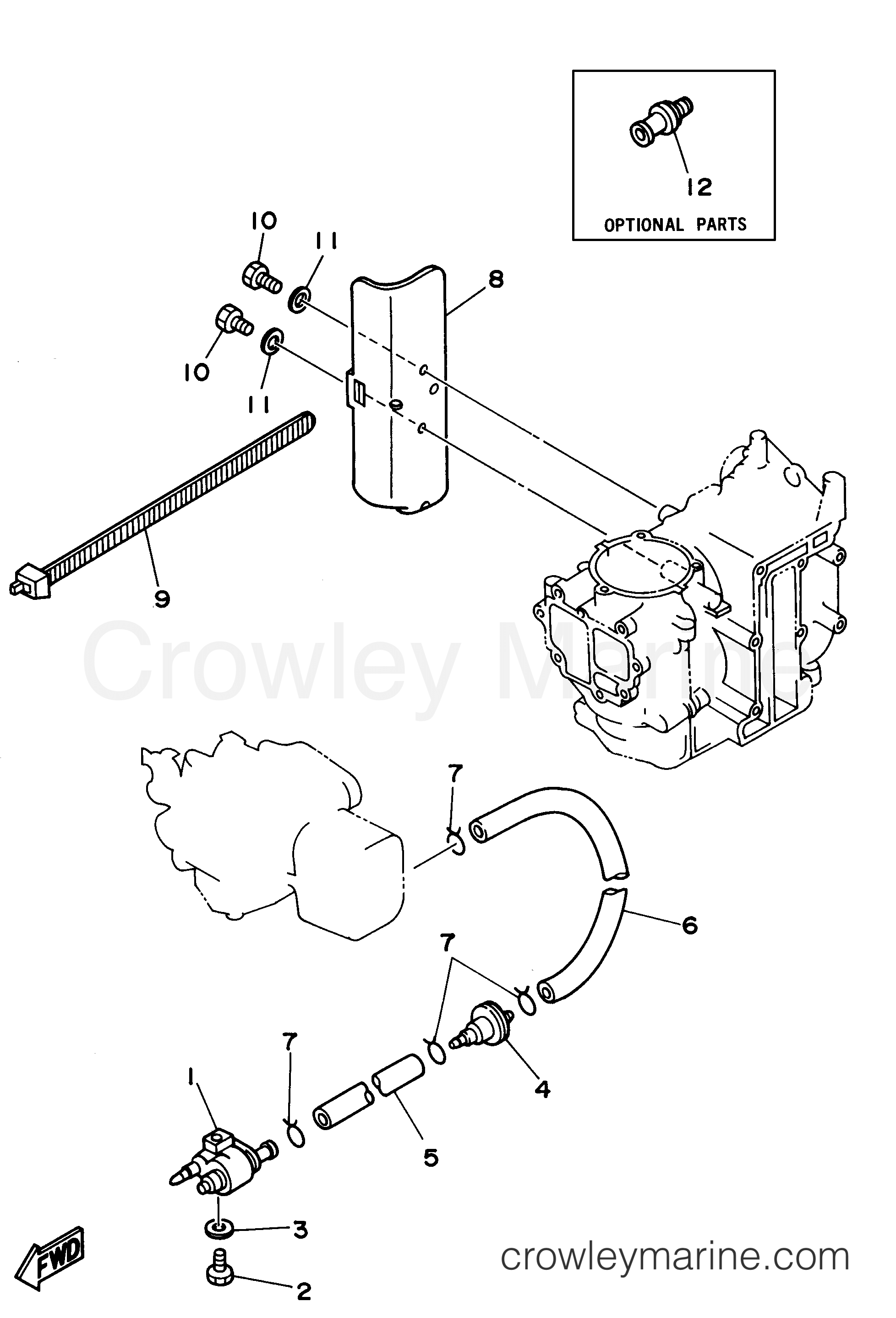

1995 Outboard 8hp - 8MSHT FUEL diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

FUEL PIPE JOINT COMP. 16G1-24304-11-00

Required: 1

FUEL PIPE JOINT COMP. 1

Supersedes: 6G1-24304-02-00

In stock

Only 5 remaining

~~$35.20~~

$29.92

You save $5.28

BOLT

~~$3.35~~

$2.85

You save $0.50

More details

Yamaha Motors

Plate Washer92990-06600-00

Required: 1

WASHER, PLATE

In stock

5+ in stock

~~$2.85~~

$2.42

You save $0.43

More details

Yamaha Motors

Strainer646-24251-02-00

Required: 1

.STRAINER 1

In stock

5+ in stock

~~$19.10~~

$16.23

You save $2.86

HOSE (L210)

Supersedes: 90445-09094-00

In stock

5+ in stock

~~$12.49~~

$10.62

You save $1.87

More details

Yamaha Motors

Pipe 55RB-24315-00-00

Required: 1

HOSE (L30)

Supersedes: 90445-09220-00

~~$8.49~~

$7.22

You save $1.27

CLIP

In stock

5+ in stock

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Tool Holder6N0-F8170-00-00

Required: 1

TOOL, HOLDER

Supersedes: 6G1-28170-00-00

~~$28.95~~

$24.61

You save $4.34

BAND

~~$21.70~~

$18.45

You save $3.25

BOLT

~~$2.99~~

$2.54

You save $0.45

More details

Yamaha Motors

Plate Washer92990-06600-00

Required: 2

WASHER, PLATE

In stock

5+ in stock

~~$2.85~~

$2.42

You save $0.43

More details

Yamaha Motors

Jet Drive FlushABB-FLUSH-JD-00

Required: 1

JET DRIVE FLUSH

In stock

Only 1 remaining

~~$19.05~~

$16.19

You save $2.86

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders

1995 Outboard 8hp - 8MSHT FUEL diagram
