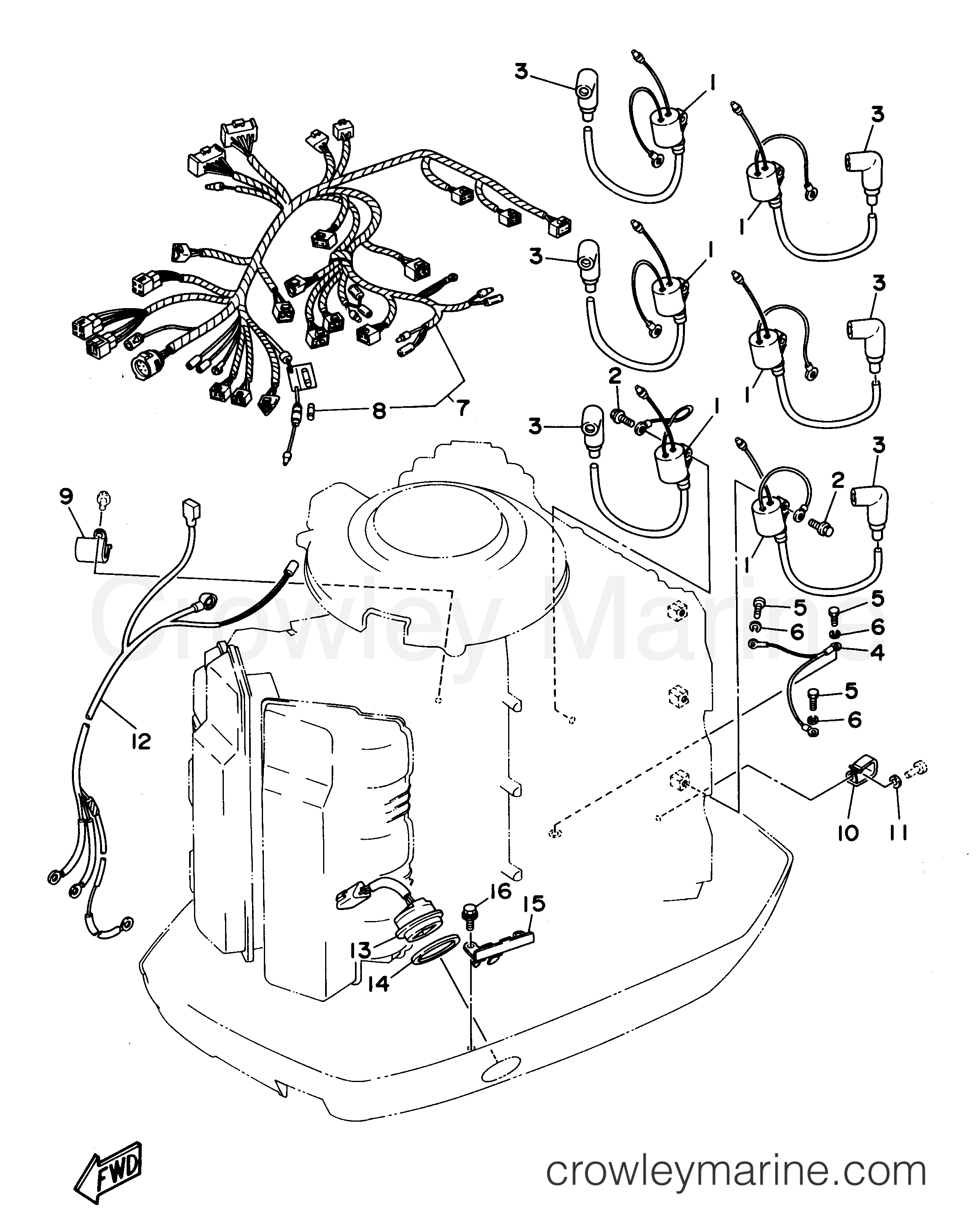

1994 Outboard 250hp - L250TXRS ELECTRICAL 2 diagram
1
Yamaha Motors
IGNITION COIL ASSEMBLY61A-85570-01-00
Required: 6
IGNITION COIL ASSY
Supersedes: 61A-85570-00-00
$80.71
You save $14.24
2
Yamaha Motors
Bolt with Washer97513-06520-00
Required: 6
BOLT, WITH WASHER
In stock
Only 2 remaining
$1.66
You save $0.29
3
Yamaha Motors
Plug Cap Assembly6E3-82370-21-00
Required: 6
PLUG CAP ASSY
Supersedes: 6E3-82370-20-00
In stock
5+ in stock
$19.04
You save $3.36
$14.88
You save $2.63
5
Yamaha Motors
.BOLT97313-06012-00
Required: 3
BOLT
Supersedes: 97013-06012-00
In stock
Only 2 remaining
$1.78
You save $0.32
6
Yamaha Motors
Spring Washer92995-06100-00
Required: 3
WASHER, SPRING
In stock
5+ in stock
$2.93
You save $0.52
7
Yamaha Motors
Wire Harness Assembly61A-82590-03-00
Required: 1
WIRE HARNESS ASSEMBLY
Supersedes: 61A-82590-01-00
$711.62
You save $125.58
8
Yamaha Motors
Fuse (12V/10A)682-82151-01-00
Required: 1
.FUSE (12V-20A)
Supersedes: 682-82151-00-00
$2.17
You save $0.38
$9.27
You save $1.63
$8.46
You save $1.49
11
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
12
Yamaha Motors
BATTERY CABLE (RL45)61A-82105-01-00
Required: 1
BATTERY CABLE
Supersedes: 61A-82105-00-00
$290.15
You save $51.20
13
Yamaha Motors
Trim & Tilt Switch Assembly61A-82563-01-00
Required: 1
TRIM & TILT SWITCH ASSY
Supersedes: 61A-82563-00-00
$76.75
You save $13.55
14
Yamaha Motors
GASKET6E5-82587-01-00
Required: 1
GASKET
Supersedes: 6E5-82587-00-00
In stock
5+ in stock
$9.10
You save $1.61
$21.55
You save $3.80
$2.35
You save $0.41
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
