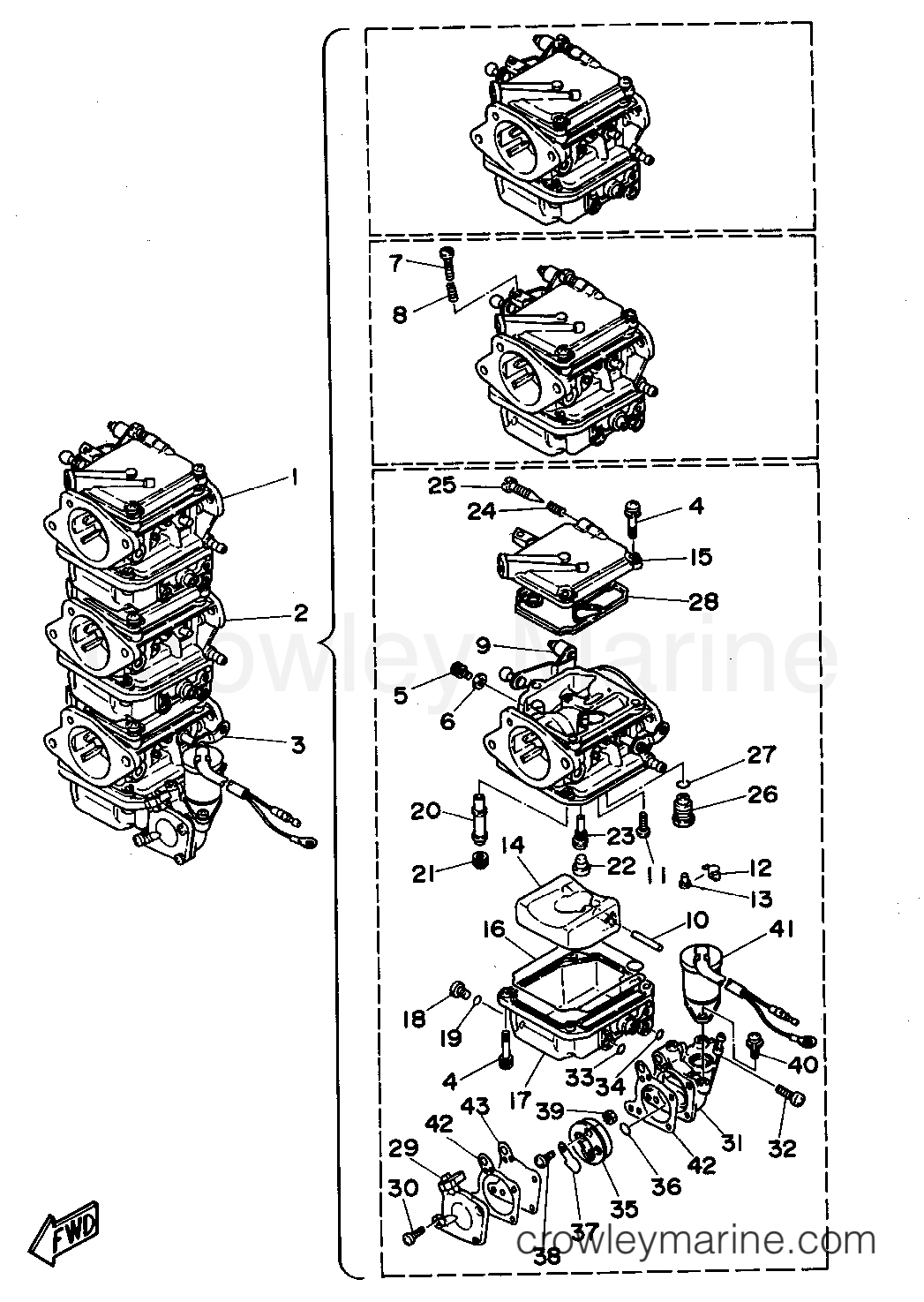

1994 Outboard 40hp - 40TLRS CARBURETOR diagram
1
Yamaha Motors
Carburetor Assembly(6H4-14301-0B-00)
Required: 1
CARBURETOR ASSEMBLY 1
No longer availableSearch Nationwide Inventory
Price unavailable
1
Yamaha Motors
Carburetor Assembly 16H4-14301-12-00
Required: 1
CARBURETOR ASSEMBLY 1
$222.32
You save $39.23
2
Yamaha Motors
Carburetor Assembly 26H4-14302-12-00
Required: 1
CARBURETOR ASSEMBLY 2
$227.84
You save $40.21
2
Yamaha Motors
Carburetor Assembly(6H4-14302-0B-00)
Required: 1
CARBURETOR ASSEMBLY 2
No longer availableSearch Nationwide Inventory
Price unavailable
3
Yamaha Motors
Carburetor(6H4-14303-0B-00)
Required: 1
CARBURETOR (LOWER)
No longer availableSearch Nationwide Inventory
Price unavailable
3
Yamaha Motors
Carburetor Assembly 36H4-14303-12-00
Required: 1
CARBURETOR ASSEMBLY 3
$342.76
You save $60.49
4
Yamaha Motors
Screw With Washer97980-04114-00
Required: 21
.SCREW, WITH WASHER
In stock
5+ in stock
$4.55
You save $0.80
In stock
Only 2 remaining
$4.12
You save $0.73
6
Yamaha Motors
Plate Washer90201-05552-00
Required: 3
.WASHER, PLATE
Supersedes: 90201-05652-00
$3.19
You save $0.56
7
Yamaha Motors
Stop Screw63V-14523-00-00
Required: 1
.SCREW, STOP
Supersedes: 6H1-14523-00-00
$9.18
You save $1.62
8
Yamaha Motors
Compression Spring90501-10326-00
Required: 1
.SPRING, COMPRESSION
$6.29
You save $1.11
In stock
Only 2 remaining
$12.07
You save $2.13
10
Yamaha Motors
Float Arm Pin6H4-14548-00-00
Required: 3
.PIN, FLOAT ARM
$8.20
You save $1.45
11
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.70
You save $0.30
12
Yamaha Motors
Clip633-14159-00-00
Required: 3
.CLIP
Supersedes: 663-14159-00-00
$14.02
You save $2.47
In stock
Only 3 remaining
$6.88
You save $1.21
In stock
5+ in stock
$21.55
You save $3.80
$19.55
You save $3.45
16
Yamaha Motors
Float Chamber Gasket6H4-14984-00-00
Required: 3
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$10.50
You save $1.85
17
Yamaha Motors
Float Chamber Body6H4-14980-00-00
Required: 3
.BODY, FLOAT CHAMBER
$44.63
You save $7.88
17
Yamaha Motors
Float Chamber Body6H4-14980-10-00
Required: 1
.BODY, FLOAT CHAMBER
$51.68
You save $9.12
17
Yamaha Motors
Float Chamber Body6H4-14980-00-00
Required: 1
.BODY, FLOAT CHAMBER
$44.63
You save $7.88
18
Yamaha Motors
SCREW, DRAIN6H3-14992-01-00
Required: 3
.SCREW, DRAIN
Supersedes: 6H3-14992-00-00
In stock
5+ in stock
$18.15
You save $3.20
In stock
5+ in stock
$8.07
You save $1.42
$33.11
You save $5.84
21
Yamaha Motors
Main Jet (125)676-14943-32-00
Required: 1
.JET, MAIN (125) (CENTER)
In stock
Only 3 remaining
$13.43
You save $2.37
21
Yamaha Motors
Main Jet (120) (CENTER)676-14943-31-00
Required: 2
.JET, MAIN (120) (CENTER)
$17.55
You save $3.10
21
Yamaha Motors
Main (#115) Jet676-14943-30-00
Required: 2
.JET, MAIN (#115)
$14.96
You save $2.64
21
Yamaha Motors
Main Jet (120) (CENTER)676-14943-31-00
Required: 1
.JET, MAIN (120) (CENTER)
$17.55
You save $3.10
In stock
Only 4 remaining
$7.73
You save $1.37
$13.09
You save $2.31
24
Yamaha Motors
Spring697-14555-00-00
Required: 3
.SPRING
Supersedes: 679-14555-00-00
In stock
5+ in stock
$2.93
You save $0.52
25
Yamaha Motors
Pilot Screw692-14923-00-00
Required: 3
.SCREW, PILOT
$23.29
You save $4.11
26
Yamaha Motors
Needle Valve Assembly6H4-14590-02-00
Required: 3
.NEEDLE VALVE ASSY
Supersedes: 6H4-14590-00-00
$26.44
You save $4.66
In stock
5+ in stock
$5.70
You save $1.00
In stock
5+ in stock
$9.82
You save $1.73
$49.51
You save $8.74
30
Yamaha Motors
Screw (M8 X 40)6H4-14567-09-00
Required: 4
.SCREW
Supersedes: 6H4-14567-00-00
$7.01
You save $1.24
$68.42
You save $12.08
$5.73
You save $1.01
$7.69
You save $1.36
34
Yamaha Motors
O-Ring67F-14398-10-00
Required: 1
.O-RING
Supersedes: 6H4-14562-00-00
In stock
5+ in stock
$4.72
You save $0.83
In stock
Only 1 remaining
$42.33
You save $7.47
36
Yamaha Motors
O-Ring67F-14398-20-00
Required: 1
.O-RING
Supersedes: 6H4-24486-00-00
In stock
5+ in stock
$4.72
You save $0.83
37
Yamaha Motors
Check Valve6L5-24421-00-00
Required: 2
.VALVE, CHECK
In stock
Only 5 remaining
$6.97
You save $1.23
$3.74
You save $0.66
In stock
Only 3 remaining
$1.57
You save $0.28
40
Yamaha Motors
Screw With Washer97980-05310-00
Required: 2
.SCREW, WITH WASHER
In stock
Only 4 remaining
$6.29
You save $1.11
41
Yamaha Motors
Solenoid Valve Assembly6H4-86120-00-00
Required: 1
.SOLENOID VALVE ASSEMBLY
$97.83
You save $17.27
42
Yamaha Motors
Body Gasket6H5-24434-00-00
Required: 2
.GASKET, BODY
In stock
Only 4 remaining
$10.12
You save $1.79
In stock
Only 2 remaining
$10.33
You save $1.82
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
