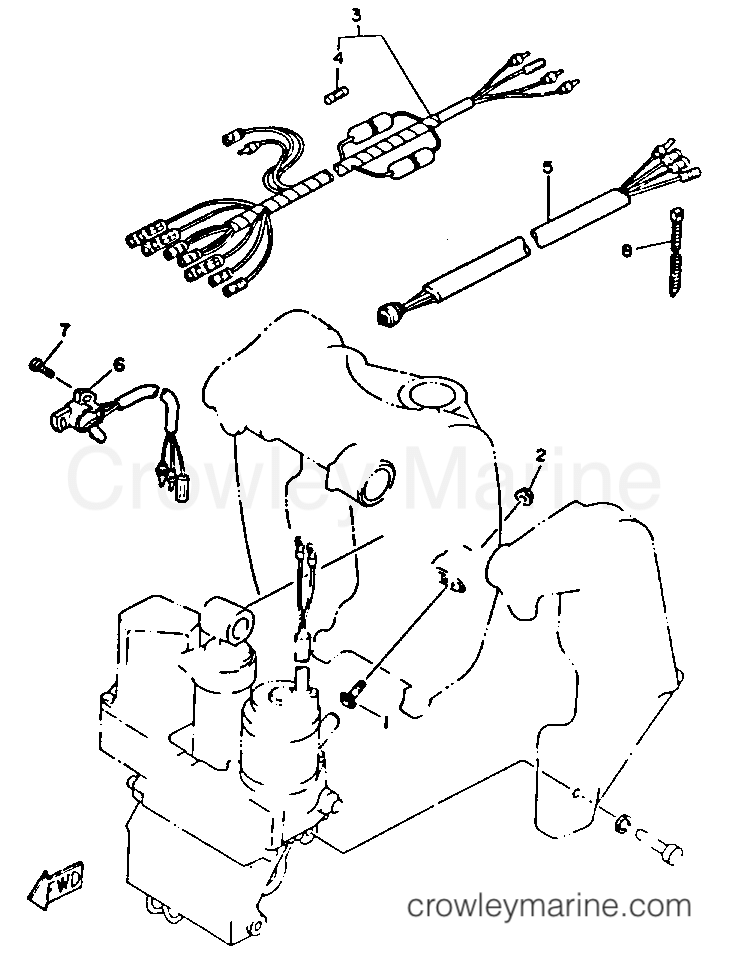

1993 Outboard 200hp - P200TLRR BRACKET 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Thrust receiver bolt6G5-43376-00-00

Required: 2

BOLT, THRUST RECEIVER

~~$35.55~~

$30.22

You save $5.33

More details

Yamaha Motors

Flange Nut95780-10300-00

Required: 2

NUT, FLANGE

~~$13.00~~

$10.40

You save $2.60

More details

Yamaha Motors

WIRE, LEAD (L=2.5M)6Y5-83553-M1-00

Required: 1

WIRE, LEAD (L=2.5M)

Supersedes: 6Y5-83553-M0-00

~~$118.00~~

$100.30

You save $17.70

More details

Yamaha Motors

Fuse (10A)1E6-82151-00-00

Required: 2

.FUSE (10A)

~~$8.49~~

$6.79

You save $1.70

More details

Yamaha Motors

Wire Harness Extension6N7-82553-00-00

Required: 1

EXTENSION, WIRE

~~$135.70~~

$115.35

You save $20.36

More details

Yamaha Motors

Trim Sender6R3-83672-02-00

Required: 1

TRIM SENDER

Supersedes: 6R3-83672-01-00

~~$252.75~~

$201.95

You save $50.80

More details

Yamaha Motors

Pan Head Screw98580-06016-00

Required: 2

SCREW, PAN HEAD

In stock

Only 5 remaining

~~$3.35~~

$2.68

You save $0.67

CLAMP

Supersedes: 90465-11M10-00

In stock

5+ in stock

~~$2.70~~

$2.16

You save $0.54

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
