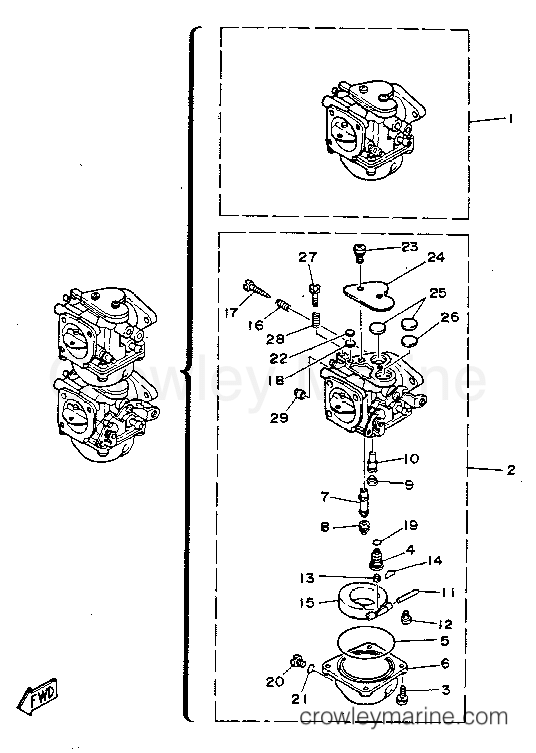

1993 Outboard 40hp - C40ELRR CARBURETOR diagram
1
Yamaha Motors
Carburetor Assembly 16E9-14301-02-00
Required: 1
CARBURETOR ASSEMBLY 1
$244.93
You save $43.22
2
Yamaha Motors
Carburetor Assembly6E9-14302-02-00
Required: 1
CARBURETOR ASSEMBLY 2
$211.99
You save $37.41
3
Yamaha Motors
Screw With Washer97980-04114-00
Required: 8
.SCREW, WITH WASHER
In stock
5+ in stock
$4.55
You save $0.80
4
Yamaha Motors
NEEDLE VALVE ASSY6H3-14590-02-00
Required: 2
.NEEDLE VALVE ASSEMBLY
Supersedes: 6H3-14590-00-00
In stock
5+ in stock
$24.57
You save $4.34
5
Yamaha Motors
Float Chamber Gasket676-14984-00-00
Required: 2
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$12.54
You save $2.21
6
Yamaha Motors
Float Chamber Body688-14980-00-00
Required: 2
.BODY, FLOAT CHAMBER
$43.31
You save $7.64
$16.53
You save $2.92
8
Yamaha Motors
Main Jet676-14943-41-00
Required: 2
.JET, MAIN (#170)
$9.82
You save $1.73
In stock
Only 4 remaining
$7.73
You save $1.37
10
Yamaha Motors
Jet (#75)6H3-14948-17-00
Required: 2
.JET (#75)
Supersedes: 6E9-14948-17-00
In stock
Only 2 remaining
$9.69
You save $1.71
11
Yamaha Motors
Float Arm Pin688-14548-00-00
Required: 2
.PIN, FLOAT ARM
$5.31
You save $0.94
12
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 2
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.70
You save $0.30
In stock
Only 3 remaining
$6.88
You save $1.21
14
Yamaha Motors
Clip633-14159-00-00
Required: 2
.CLIP
Supersedes: 663-14159-00-00
$14.02
You save $2.47
$22.23
You save $3.92
16
Yamaha Motors
Spring697-14555-00-00
Required: 2
.SPRING
Supersedes: 679-14555-00-00
In stock
5+ in stock
$2.93
You save $0.52
17
Yamaha Motors
Pilot Screw692-14923-00-00
Required: 2
.SCREW, PILOT
$23.29
You save $4.11
In stock
Only 2 remaining
$3.36
You save $0.59
In stock
5+ in stock
$5.70
You save $1.00
20
Yamaha Motors
SCREW, DRAIN6H3-14992-01-00
Required: 2
.SCREW, DRAIN
Supersedes: 6H3-14992-00-00
In stock
5+ in stock
$18.15
You save $3.20
In stock
5+ in stock
$8.07
You save $1.42
$5.70
You save $1.00
23
Yamaha Motors
Screw With Washer97980-05310-00
Required: 4
.SCREW, WITH WASHER
In stock
Only 4 remaining
$6.29
You save $1.11
$15.38
You save $2.71
$5.70
You save $1.00
In stock
5+ in stock
$3.91
You save $0.69
27
Yamaha Motors
Stop Screw63V-14523-00-00
Required: 1
.SCREW, STOP
Supersedes: 6H1-14523-00-00
$9.18
You save $1.62
28
Yamaha Motors
Compression Spring90501-10326-00
Required: 1
.SPRING, COMPRESSION
$6.29
You save $1.11
In stock
Only 2 remaining
$12.07
You save $2.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
