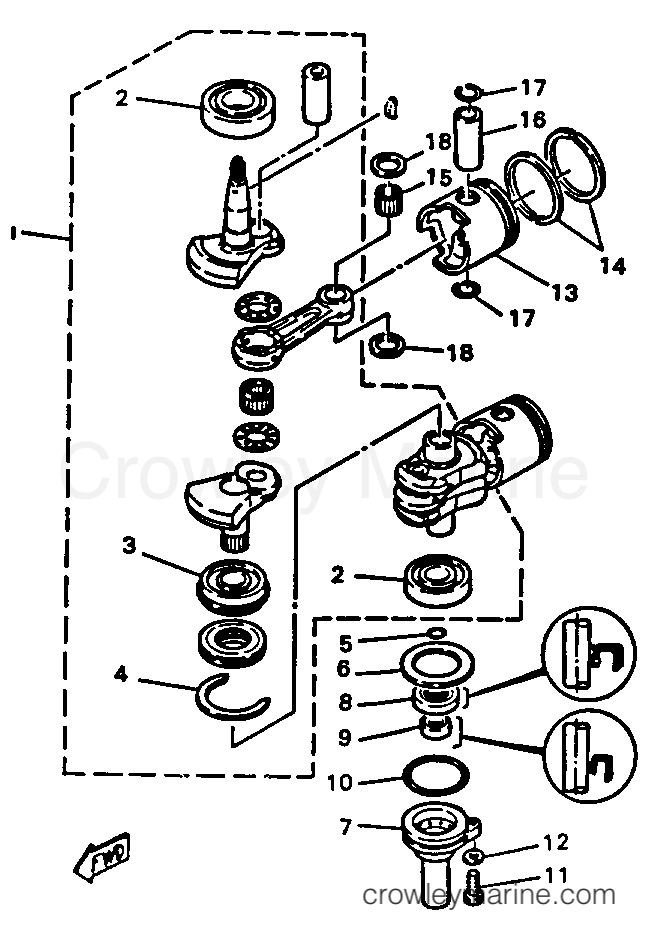

1993 Outboard 25hp - C25MLHR CRANKSHAFT PISTON diagram
1
Yamaha Motors
Crankshaft Assembly695-11400-00-00
Required: 1
CRANKSHAFT ASSEMBLY
$705.93
You save $124.58
$48.44
You save $8.55
$84.99
You save $15.00
4
Yamaha Motors
Circlip93440-62057-00
Required: 1
.CIRCLIP, OUTER
In stock
Only 1 remaining
$4.55
You save $0.80
In stock
Only 5 remaining
$2.93
You save $0.52
6
Yamaha Motors
Plate Washer90201-50306-00
Required: 1
WASHER, PLATE
$5.61
You save $0.99
7
Yamaha Motors
Oil Seal Housing689-15396-01-CA
Required: 1
HOUSING, OIL SEAL
Supersedes: 689-15396-01-5B
$21.80
You save $3.85
$14.87
You save $2.62
In stock
5+ in stock
$7.01
You save $1.24
In stock
5+ in stock
$5.99
You save $1.06
11
Yamaha Motors
BOLT (61K)97095-06022-00
Required: 1
BOLT
Supersedes: 97395-06022-00
$5.94
You save $1.05
12
Yamaha Motors
Plate Washer92990-06600-00
Required: 1
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
13
Yamaha Motors
Piston (0.50MM O/S)664-11636-80-00
Required: 2
PISTON (0.50MM O/S)
$80.88
You save $14.27
13
Yamaha Motors
Piston (Standard)664-11631-80-96
Required: 2
PISTON (STD)
Supersedes: 664-11631-80-97
$63.28
You save $11.17
14
Yamaha Motors
Piston Ring Set (0.50Mm O/S)664-11610-50-00
Required: 2
PISTON RING SET (0.50MM O/S)
$31.11
You save $5.49
14
Yamaha Motors
Piston Ring Set (Standard)664-11610-80-00
Required: 2
PISTON RING SET (STD)
$37.10
You save $6.55
In stock
Only 4 remaining
$2.72
You save $0.48
$11.81
You save $2.09
In stock
Only 4 remaining
$8.07
You save $1.42
18
Yamaha Motors
Plate Washer90201-18522-00
Required: 4
WASHER, PLATE
In stock
Only 4 remaining
$4.80
You save $0.85
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
