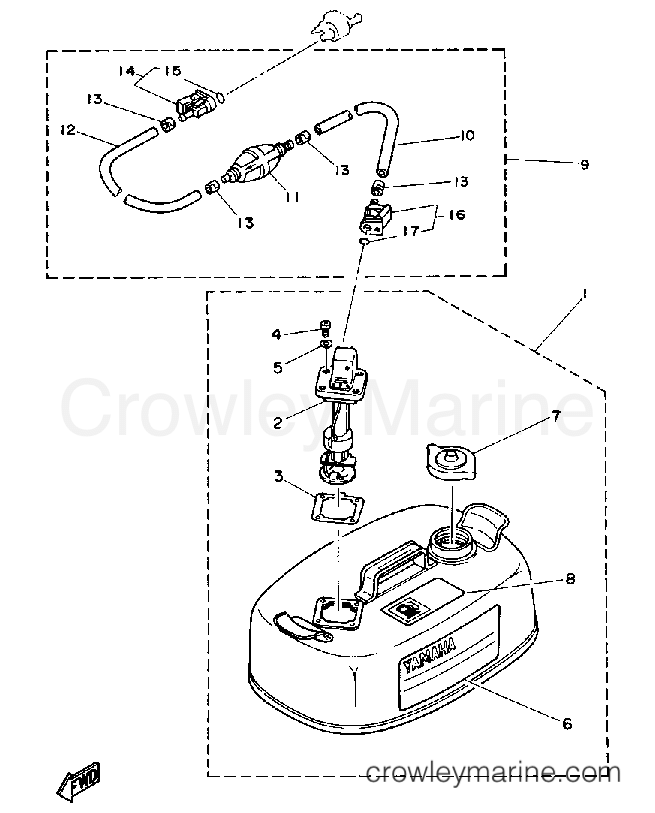

1990 Outboard 9.9hp - F9.9LD FUEL TANK diagram
1
Yamaha Motors
Fuel Tank Assembly6Y4-W2420-42-24
Required: 1
FUEL TANK ASSEMBLY
$122.57
You save $21.63
2
Yamaha Motors
Obsolete Yamaha Part6Y4-24260-02-00
Required: 1
.FUEL METER ASSEMBLY
Supersedes: 6Y4-24260-01-00
$73.10
You save $12.90
3
Yamaha Motors
Fuel Meter Gasket6Y1-24268-01-00
Required: 1
.GASKET, FUEL METER
Supersedes: 6Y1-24268-00-00
In stock
Only 1 remaining
$1.64
You save $0.41
4
Yamaha Motors
Pan Head Screw98586-05016-00
Required: 4
.SCREW, PAN HEAD
$3.10
You save $0.55
In stock
5+ in stock
$2.16
You save $0.54
6
Yamaha Motors
Fuel Tank Graphic6Y4-24244-50-00
Required: 1
.GRAPHIC, FUEL TNK 1
$7.95
You save $1.40
7
Yamaha Motors
Cap Assembly6Y1-24610-00-00
Required: 1
.CAP ASSEMBLY
$26.05
You save $4.60
8
Yamaha Motors
Fuel Tank Graphic6Y1-24256-50-00
Required: 1
.GRAPHIC, FUEL TANK
$8.07
You save $1.43
9
Yamaha Motors
FUEL PIPE COMP. 16Y1-24306-52-00
Required: 1
FUEL PIPE COMP. 1
Supersedes: 6Y1-24306-51-00
$217.52
You save $38.39
10
Yamaha Motors
.HOSE (L3000)90445-11M81-00
Required: 1
.HOSE (L2050)
Supersedes: 90445-11M06-00
In stock
Only 2 remaining
$32.40
You save $8.10
11
Yamaha Motors
PRIMER PUMP ASSY.6Y1-24360-51-00
Required: 1
.PRIMER PUMP ASSY
$37.78
You save $6.67
12
Yamaha Motors
Hose (L800)90445-11M78-00
Required: 1
.HOSE (L850)
Supersedes: 90445-11M05-00
$7.57
You save $1.33
$2.29
You save $0.41
14
Yamaha Motors
Fuel Pipe Joint Comp6G1-24305-05-00
Required: 1
.FUEL PIPE JOINT COMP 2
Supersedes: 6G1-24305-01-00
In stock
5+ in stock
$22.40
You save $5.60
In stock
Only 4 remaining
$4.28
You save $1.07
16
Yamaha Motors
Fuel Pipe Joint Comp6Y1-24305-06-00
Required: 1
.FUEL PIPE JOINT COMP 2
Supersedes: 6Y1-24305-02-00
In stock
Only 2 remaining
$20.08
You save $5.02
In stock
Only 4 remaining
$4.28
You save $1.07
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
