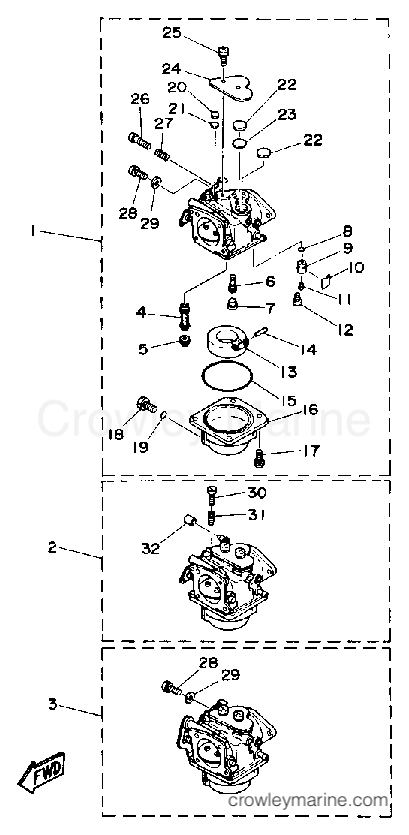

1990 Outboard 85hp - CV85ETLD CARBURETOR diagram
1
Yamaha Motors
Carburetor Assembly 1688-14301-07-00
Required: 1
CARBURETOR ASSEMBLY 1
$255.94
You save $45.17
2
Yamaha Motors
Carburetor Assembly 2688-14302-07-00
Required: 1
CARBURETOR ASSEMBLY 2
$285.30
You save $50.35
3
Yamaha Motors
Lower Carburetor 688-14303-07-00
Required: 1
CARBURETOR (LOWER)
$255.94
You save $45.17
$26.44
You save $4.66
5
Yamaha Motors
Main Jet676-14943-40-00
Required: 3
.JET, MAIN (165)
$13.81
You save $2.44
$12.15
You save $2.14
In stock
Only 4 remaining
$7.73
You save $1.37
In stock
5+ in stock
$5.70
You save $1.00
9
Yamaha Motors
Needle Valve Assembly692-14590-01-00
Required: 3
.VALVE SEAT
Supersedes: 692-14590-00-00
$29.50
You save $5.21
10
Yamaha Motors
Clip633-14159-00-00
Required: 3
.CLIP
Supersedes: 663-14159-00-00
$14.02
You save $2.47
In stock
Only 3 remaining
$6.88
You save $1.21
12
Yamaha Motors
.SCREW, PAN HEAD97802-04008-00
Required: 3
.SCREW, PAN HEAD
Supersedes: 98580-04008-00
In stock
Only 2 remaining
$1.70
You save $0.30
$22.23
You save $3.92
14
Yamaha Motors
Float Arm Pin688-14548-00-00
Required: 3
.PIN, FLOAT ARM
$5.31
You save $0.94
15
Yamaha Motors
Float Chamber Gasket676-14984-00-00
Required: 3
.GASKET, FLOAT CHAMBER
In stock
5+ in stock
$12.54
You save $2.21
16
Yamaha Motors
Float Chamber Body688-14980-00-00
Required: 3
.BODY, FLOAT CHAMBER
$43.31
You save $7.64
17
Yamaha Motors
Screw With Washer97980-04114-00
Required: 12
.SCREW, WITH WASHER
In stock
5+ in stock
$4.55
You save $0.80
18
Yamaha Motors
SCREW, DRAIN6H3-14992-01-00
Required: 3
.SCREW, DRAIN
Supersedes: 6H3-14992-00-00
In stock
5+ in stock
$18.15
You save $3.20
In stock
5+ in stock
$8.07
You save $1.42
$5.70
You save $1.00
In stock
Only 2 remaining
$3.36
You save $0.59
$5.70
You save $1.00
In stock
5+ in stock
$3.91
You save $0.69
$15.38
You save $2.71
25
Yamaha Motors
Screw With Washer97980-05310-00
Required: 6
.SCREW, WITH WASHER
In stock
Only 4 remaining
$6.29
You save $1.11
26
Yamaha Motors
Pilot Screw692-14923-00-00
Required: 3
.SCREW, PILOT
$23.29
You save $4.11
27
Yamaha Motors
Spring697-14555-00-00
Required: 3
.SPRING
Supersedes: 679-14555-00-00
In stock
5+ in stock
$2.93
You save $0.52
$6.79
You save $1.20
29
Yamaha Motors
Plate Washer90201-05552-00
Required: 2
.WASHER, PLATE
Supersedes: 90201-05652-00
$3.19
You save $0.56
30
Yamaha Motors
Stop Screw63V-14523-00-00
Required: 1
.SCREW, STOP
Supersedes: 663-14523-00-00
$9.18
You save $1.62
31
Yamaha Motors
Compression Spring90501-10326-00
Required: 1
.SPRING, COMPRESSION
$6.29
You save $1.11
In stock
Only 2 remaining
$12.07
You save $2.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
