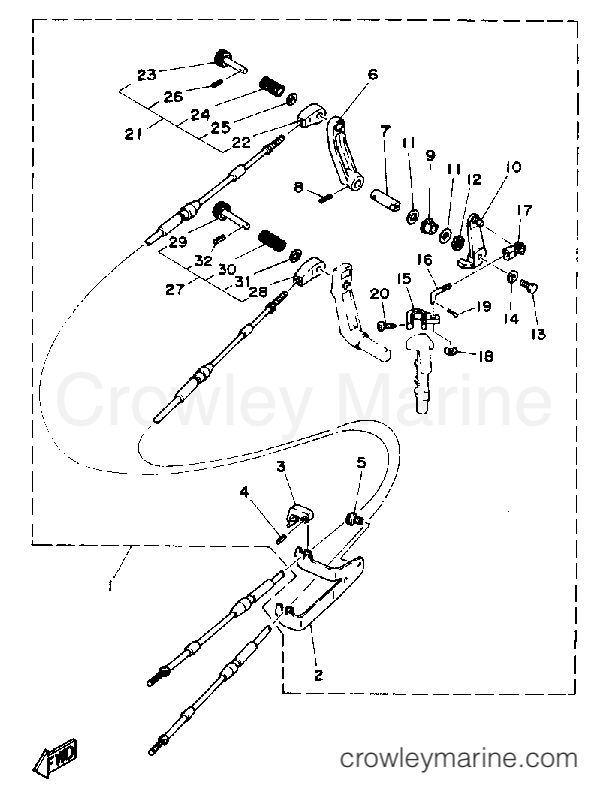

1990 Outboard 6hp - 6SD REMOTE CONTROL ATTACHMENT diagram

1
Yamaha Motors
ATTACHMENT ASS''Y6G1-48501-50-00
Required: 1
REMOTE CONTROL ATTACHMENT ASSY
$138.51
You save $24.44

2
Yamaha Motors
Remote Control Bracket6G1-48531-50-00
Required: 1
.BRACKET, REMOTE CONTROL 1
In stock
Only 2 remaining
$48.53
You save $8.57

3
Yamaha Motors
Cable Clamp682-48538-50-00
Required: 2
.CLAMP, CABLE 1
$12.54
You save $2.21
In stock
Only 1 remaining
$4.72
You save $0.83
$1.87
You save $0.33

6
Yamaha Motors
Magneto Control Lever6G1-41631-50-EK
Required: 1
.LEVER, MAGNETO CONTROL
$99.96
You save $17.64

7
Yamaha Motors
Link Connecting Shaft6G1-41635-50-00
Required: 1
.SHAFT, LINK CONNECTING
$10.67
You save $1.88
In stock
Only 2 remaining
$8.07
You save $1.42
$11.47
You save $2.02

10
Yamaha Motors
Magneto Control Lever6G1-41632-50-94
Required: 1
.LEVER, MAGNETO CONTROL
$86.06
You save $15.19

11
Yamaha Motors
Plate Washer90202-10024-00
Required: 2
.WASHER, PLATE
$6.29
You save $1.11

12
Yamaha Motors
Wave Washer90206-10M12-00
Required: 1
.WASHER, WAVE
$11.47
You save $2.03

13
Yamaha Motors
Hexagon bolt97313-05014-00
Required: 1
.BOLT, HEXAGON
$5.52
You save $0.98

14
Yamaha Motors
Plate Washer92990-05600-00
Required: 1
.WASHER, PLATE
In stock
Only 4 remaining
$0.68
You save $0.12

15
Yamaha Motors
Magneto Control Lever6G1-41633-50-94
Required: 1
.LEVER, MAGNETO CONTROL
$59.16
You save $10.44
$10.75
You save $1.90
In stock
5+ in stock
$17.55
You save $3.10

18
Yamaha Motors
Plate Washer90202-05088-00
Required: 1
.WASHER, PLATE
In stock
Only 2 remaining
$6.54
You save $1.16
In stock
Only 4 remaining
$2.93
You save $0.52

20
Yamaha Motors
Tapping Screw97780-50620-00
Required: 1
.SCREW, TAPPING
Supersedes: 97780-50520-00
$2.72
You save $0.48

21
Yamaha Motors
Cable End Assembly (Throttle)682-48340-50-00
Required: 1
.CABLE END ASSY (THROTTLE)
$34.42
You save $6.08

22
Yamaha Motors
REMOTE CONTROL 1 CABLE END 682-48344-50-00
Required: 1
..CABLE END, REMOTE CONTROL 1
$13.52
You save $2.38

23
Yamaha Motors
Cable Hook617-48361-91-00
Required: 1
..HOOK, CABLE
$16.19
You save $2.86

24
Yamaha Motors
Compression Spring90501-10264-00
Required: 1
..SPRING, COMPRESSION
In stock
Only 1 remaining
$6.88
You save $1.21

25
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
..WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41

26
Yamaha Motors
Spring Pin91690-30012-00
Required: 1
..PIN, SPRING
In stock
Only 1 remaining
$4.72
You save $0.83

27
Yamaha Motors
Cable End Assembly (Shift)682-48330-50-00
Required: 1
.CABLE END ASSY (SHIFT)
$34.42
You save $6.08

28
Yamaha Motors
REMOTE CONTROL 3 CABLE END 682-48346-50-00
Required: 1
..CABLE END, REMOTE CONTROL 3
$13.05
You save $2.30

29
Yamaha Motors
Cable Hook617-48331-91-00
Required: 1
..HOOK, CABLE
$18.53
You save $3.27

30
Yamaha Motors
Compression Spring90501-10071-00
Required: 1
..SPRING, COMPRESSION
$6.54
You save $1.16

31
Yamaha Motors
Plate Washer92990-08600-00
Required: 1
..WASHER, PLATE
In stock
5+ in stock
$2.29
You save $0.41

32
Yamaha Motors
Spring Pin91690-30012-00
Required: 1
..PIN, SPRING
In stock
Only 1 remaining
$4.72
You save $0.83
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
