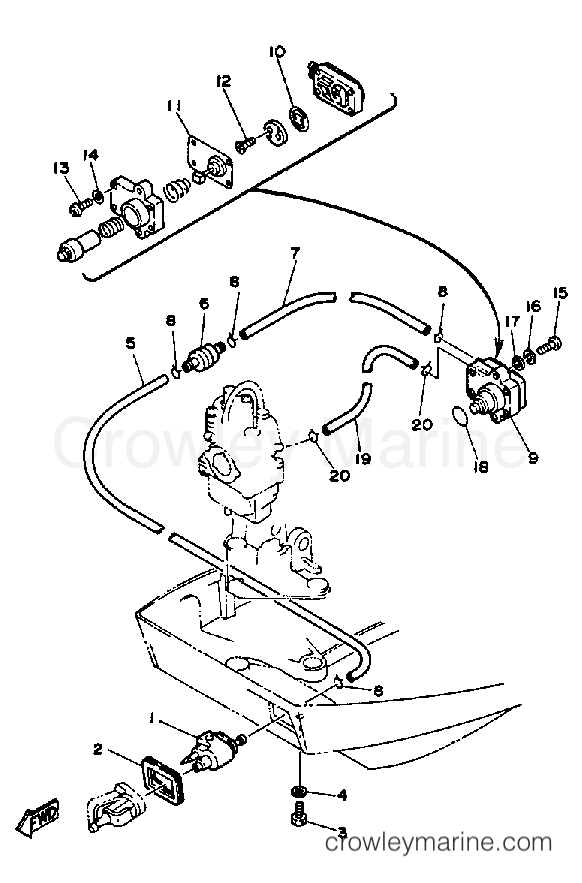

1989 Outboard 9.9hp - FT9.9XF FUEL SYSTEM diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors FT9.9XF - FUEL SYSTEM
Change View:
Seal
2
Yamaha Motors
Seal6G8-24329-00-00
Required: 1
SEAL
Cross Ship
Leaves in 2-5 days
$13.60
$11.56
You save $2.04
More details
Fuel Pipe
5
Yamaha Motors
Fuel Pipe6G8-24311-00-00
Required: 1
PIPE, FUEL 1
Cross Ship
Leaves in 2-5 days
$15.20
$12.92
You save $2.28
More details
Diaphragm
11
Yamaha Motors
Diaphragm99999-03854-00
Required: 1
DIAPHRAGM
Supersedes: 6G8-24411-01-00
Cross Ship
Leaves in 2-5 days
$64.75
$55.04
You save $9.71
More details
Flat Screw
12
Yamaha Motors
Flat Screw98707-03008-00
Required: 2
SCREW, FLAT HEAD
Supersedes: 98702-03008-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
98580-04014-00
13
Yamaha Motors
98580-04014-0098504-04014-00
Required: 4
SCREW, PAN HEAD
Supersedes: 98503-04014-00
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
