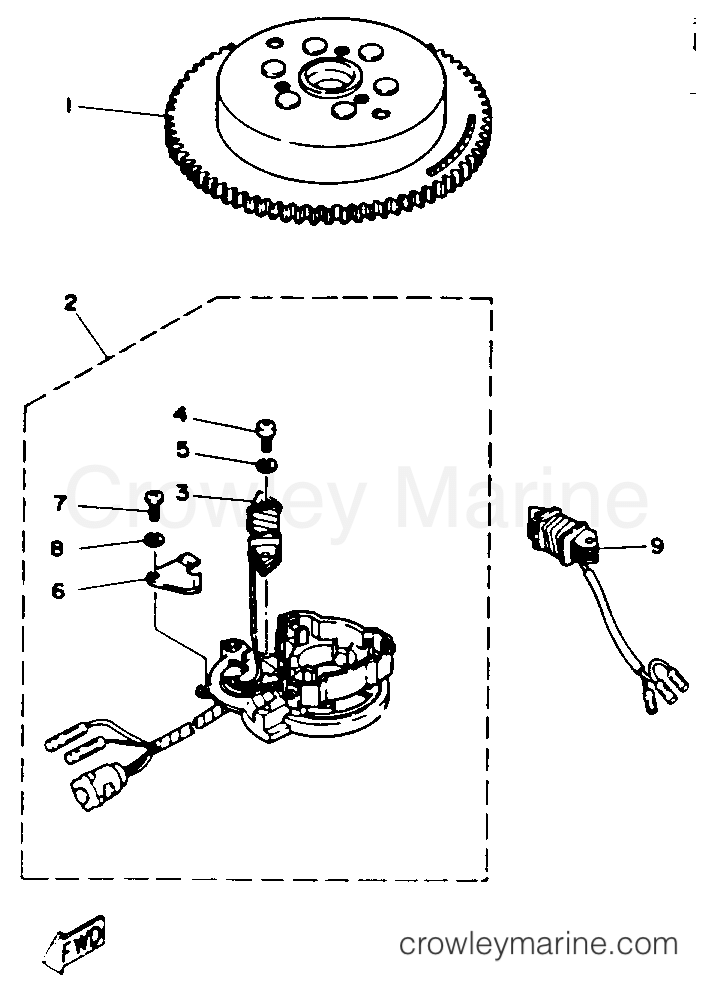

1989 Outboard 30hp - 30ESF GENERATOR (30E) diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

Change View:

Yamaha Motors

Rotor Assembly6J8-85550-A0-00

Required: 1

ROTOR ASSEMBLY

~~$926.10~~

$787.18

You save $138.91

More details

Yamaha Motors

Obsolete Yamaha Part6H4-85510-F9-00

Required: 1

STATOR ASSEMBLY

Supersedes: 6H4-85510-F0-00

~~$536.45~~

$455.98

You save $80.47

More details

Yamaha Motors

Charge Coil6H4-85520-00-00

Required: 1

COIL, CHARGE

~~$145.50~~

$123.67

You save $21.83

More details

Yamaha Motors

Pan Head Screw98580-06020-00

Required: 2

SCREW, PAN HEAD

In stock

Only 1 remaining

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

Spring Washer92995-06100-00

Required: 2

WASHER, SPRING

In stock

5+ in stock

~~$3.45~~

$2.93

You save $0.52

More details

Yamaha Motors

Holder6H4-85548-00-00

Required: 1

.HOLDER

~~$19.35~~

$16.45

You save $2.90

.SCREW, PAN HEAD

Supersedes: 98580-05010-00

In stock

Only 2 remaining

~~$3.05~~

$2.59

You save $0.46

More details

Yamaha Motors

Spring Washer92990-05100-00

Required: 1

.WASHER, SPRING

In stock

Only 5 remaining

~~$0.35~~

$0.30

You save $0.05

More details

Yamaha Motors

Lighting Coil6H4-85533-A0-00

Required: 1

COIL, LIGHTING

~~$137.75~~

$117.09

You save $20.66

More details
