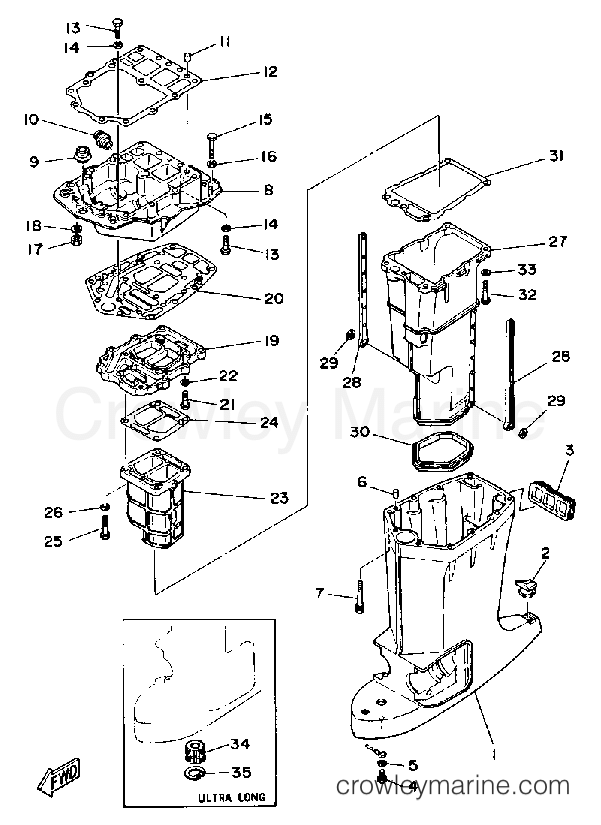

1988 Outboard V6 EXCEL - V6EXCELXG UPPER CASING diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors V6EXCELXG - UPPER CASING
Change View:
6E5-45111-02-EK
1
Yamaha Motors
6E5-45111-02-EK6E5-45111-01-EK
Required: 1
CASING, UPPER
Supersedes: 6E5-45111-00-EK
Cross Ship
Leaves in 2-5 days
$561.55
$477.32
You save $84.23
More details
Obsolete Yamaha Part
1
Yamaha Motors
Obsolete Yamaha Part6E5-45111-23-EK
Required: 1
CASING, UPPER
Supersedes: 6E5-45111-20-EK
Cross Ship
Leaves in 2-5 days
$656.50
$558.02
You save $98.48
More details
Bolt with Washer
7
Yamaha Motors
Bolt with Washer90119-08M78-00
Required: 6
BOLT, WITH WASHER
Cross Ship
Leaves in 2-5 days
$19.35
$16.45
You save $2.90
More details
EXHAUST GUIDE KIT
8
Yamaha Motors
EXHAUST GUIDE KIT99999-03934-00
Required: 1
GUIDE, EXHAUST
Supersedes: 6G5-41137-00-94
Cross Ship
Leaves in 2-5 days
$478.85
$407.02
You save $71.83
More details
GROMMET, WATER TUBE (UPPER)
9
Yamaha Motors
GROMMET, WATER TUBE (UPPER)6E5-42724-01-00
Required: 1
GROMMET
Supersedes: 6E5-42724-00-00
Cross Ship
Leaves in 2-5 days
$14.65
$12.45
You save $2.20
More details
Spring Washer
14
Yamaha Motors
Spring Washer92990-08100-00
Required: 6
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details
Spring Washer
16
Yamaha Motors
Spring Washer92990-08100-00
Required: 2
WASHER, SPRING
Cross Ship
Leaves in 2-5 days
$5.60
$4.76
You save $0.84
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
