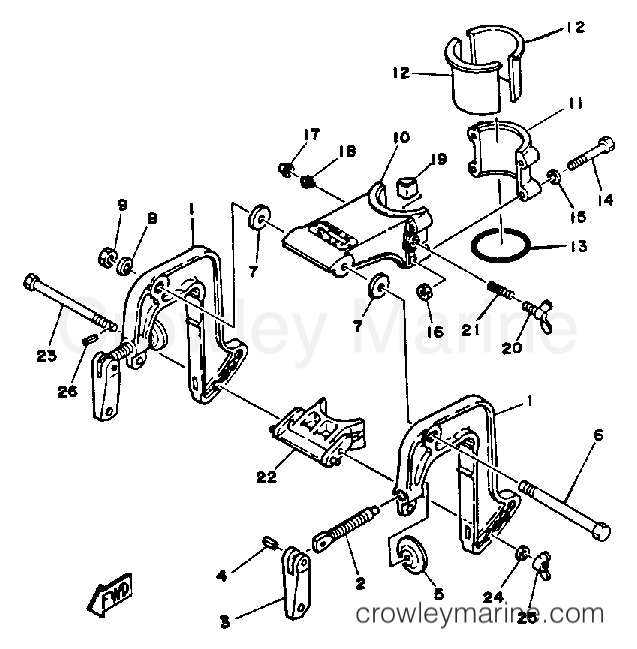

1986 Outboard 2hp - 2SJ BRACKET diagram
1
Yamaha Motors
Clamp Bracket 6A1-43111-03-EK
Required: 2
BRACKET, CLAMP
$59.76
You save $10.55
2
Yamaha Motors
Transom Clamp Screw6E0-43116-01-00
Required: 2
SCREW, TRANSOM CLAMP
In stock
Only 1 remaining
$28.65
You save $5.05
3
Yamaha Motors
Transom Clamp Handle6E0-43118-01-00
Required: 2
HANDLE, TRANSOM CLP
Supersedes: 6E0-43118-00-00
In stock
5+ in stock
$7.61
You save $1.34
4
Yamaha Motors
Pin90243-04M01-00
Required: 2
PIN, SPRING TYPE
Supersedes: 90254-04M00-00
In stock
5+ in stock
$5.06
You save $0.89
5
Yamaha Motors
Transom Clamp Pad648-43114-01-00
Required: 2
PAD, TRANSOM CLAMP
In stock
Only 2 remaining
$12.07
You save $2.13
$7.64
You save $1.35
7
Yamaha Motors
Plate Washer90202-08022-00
Required: 2
WASHER, PLATE
$3.82
You save $0.68
8
Yamaha Motors
Spring Washer92990-08100-00
Required: 1
WASHER, SPRING
$4.76
You save $0.84
In stock
Only 1 remaining
$7.22
You save $1.27
10
Yamaha Motors
Swivel Bracket 16A1-43311-01-EK
Required: 1
BRACKET, SWIVEL 1
$64.09
You save $11.31
11
Yamaha Motors
Swivel Bracket 26A1-43312-00-EK
Required: 1
BRACKET, SWIVEL 2
$40.04
You save $7.06
12
Yamaha Motors
Pivot Shaft Bushing646-42537-01-00
Required: 2
BUSHING, PIVOT SHAFT
$12.66
You save $2.24
In stock
5+ in stock
$7.22
You save $1.27
14
Yamaha Motors
BOLT97080-06045-00
Required: 4
BOLT, HEXAGON
Supersedes: 97395-06045-00
In stock
5+ in stock
$4.17
You save $0.74
15
Yamaha Motors
Plate Washer92990-06600-00
Required: 4
WASHER, PLATE
In stock
5+ in stock
$2.42
You save $0.43
In stock
5+ in stock
$4.08
You save $0.72
17
Yamaha Motors
Grease Nipple Cap663-45119-01-00
Required: 1
CAP, GREASE NIPPLE
Supersedes: 663-45119-00-00
In stock
5+ in stock
$2.04
You save $0.36
18
Yamaha Motors
Grease Nipple93700-06M03-00
Required: 1
NIPPLE, GREASE
In stock
5+ in stock
$7.01
You save $1.24
19
Yamaha Motors
Friction Plate646-42528-00-00
Required: 1
PLATE, FRICTION
$18.15
You save $3.20
$7.69
You save $1.36
21
Yamaha Motors
Compression Spring90501-12272-00
Required: 1
SPRING, COMPRESSION
$4.55
You save $0.80
22
Yamaha Motors
Thrust Receiver6A1-43351-00-00
Required: 1
RECEIVER, THRUST
In stock
Only 1 remaining
$11.69
You save $2.06
23
Yamaha Motors
Receiver Bolt6A1-43371-00-00
Required: 1
BOLT, RECEIVER
In stock
Only 4 remaining
$11.05
You save $1.95
24
Yamaha Motors
Plate Washer90201-06040-00
Required: 1
WASHER, PLATE
In stock
Only 1 remaining
$2.55
You save $0.45
In stock
Only 2 remaining
$2.34
You save $0.41
In stock
Only 5 remaining
$3.02
You save $0.53
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
