All diagrams for this model

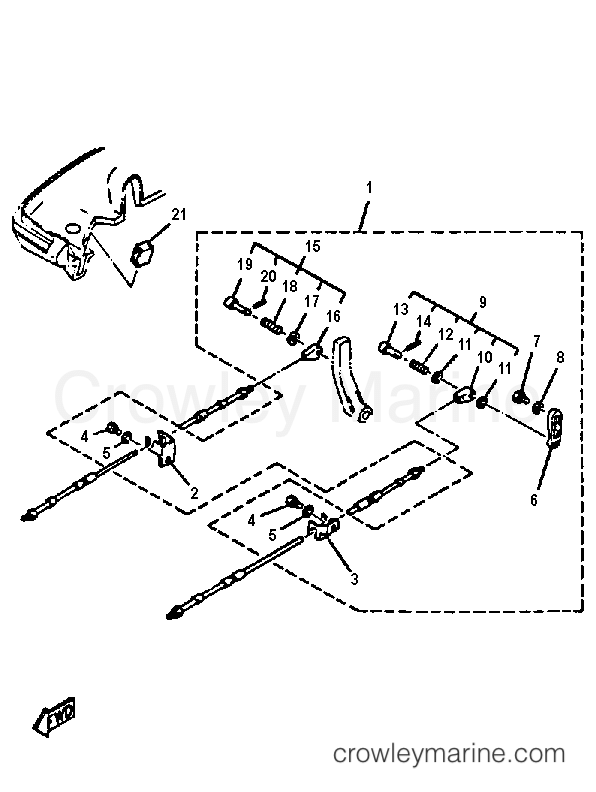

1985 Outboard 30hp - 30ELK REMOTE CONTROL ATTACHMENT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors 30ELK - REMOTE CONTROL ATTACHMENT
Change View:
Attachment Assembly
1
Yamaha Motors
Attachment Assembly689-48501-50-00
Required: 1
ATTACHMENT ASSY
Cross Ship
Leaves in 2-5 days
$49.65
$42.20
You save $7.45
More details
BRACKET, REMOTE CONTROL 1
2
Yamaha Motors
BRACKET, REMOTE CONTROL 1689-48531-52-00
Required: 1
.BRACKET, REMOTE CONTROL 1
Supersedes: 689-48531-50-00
Cross Ship
Leaves in 2-5 days
$16.50
$14.03
You save $2.47
More details
BOLT, HEXAGON DEEP RECESS
4
Yamaha Motors
BOLT, HEXAGON DEEP RECESS97D95-06016-00
Required: 2
.BOLT, HEX
Supersedes: 97395-06016-00
Cross Ship
Leaves in 2-5 days
$2.76
$2.35
You save $0.41
More details
Throttle Control Lever
6
Yamaha Motors
Throttle Control Lever648-48534-50-EK
Required: 1
.THROTTLE LEVER, CONTROL
Cross Ship
Leaves in 2-5 days
$30.55
$25.97
You save $4.58
More details
BOLT
7
Yamaha Motors
BOLT97095-06012-00
Required: 1
.BOLT
Supersedes: 97395-06012-00
Cross Ship
Leaves in 2-5 days
$2.99
$2.54
You save $0.45
More details
Cable End
9
Yamaha Motors
Cable End679-48340-90-00
Required: 1
.CABLE END ASSEMBLYTHR
Cross Ship
Leaves in 2-5 days
$58.65
$49.85
You save $8.80
More details
Remote Control Cable End
10
Yamaha Motors
Remote Control Cable End679-48346-90-00
Required: 1
..CABLE END, REMCONT
Cross Ship
Leaves in 2-5 days
$26.30
$22.36
You save $3.95
More details
Cable Hook
13
Yamaha Motors
Cable Hook617-48361-91-00
Required: 1
..HOOK, CABLE
Supersedes: 617-48361-90-00
Cross Ship
Leaves in 2-5 days
$19.05
$16.19
You save $2.86
More details
Cable End Assembly
15
Yamaha Motors
Cable End Assembly648-48330-50-00
Required: 1
.CABLE END ASSY
Cross Ship
Leaves in 2-5 days
$35.10
$29.84
You save $5.27
More details
Remote Control Cable End
16
Yamaha Motors
Remote Control Cable End648-48346-50-00
Required: 1
..CABLE END, REMOTE CONTROL
Cross Ship
Leaves in 2-5 days
$13.35
$11.35
You save $2.00
More details
Compression Spring
18
Yamaha Motors
Compression Spring90501-10071-00
Required: 1
..SPRING, COMPRESSION
Cross Ship
Leaves in 2-5 days
$7.70
$6.54
You save $1.16
More details
Cable Hook
19
Yamaha Motors
Cable Hook617-48331-91-00
Required: 1
..HOOK, CABLE
Cross Ship
Leaves in 2-5 days
$21.80
$18.53
You save $3.27
More details
Grommet
21
Yamaha Motors
Grommet676-42724-40-00
Required: 1
GROMMET
Cross Ship
Leaves in 2-5 days
$9.30
$7.91
You save $1.40
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
