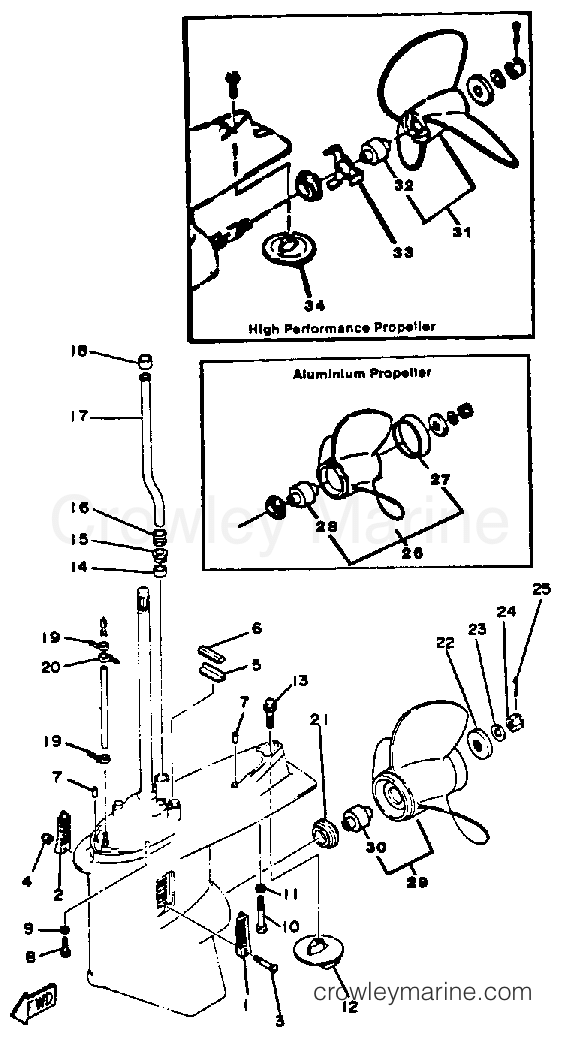

1984 Outboard 175hp - 175ETLN LOWER DRIVE 2 diagram
1
Yamaha Motors
Water Inlet Cover6G5-45214-00-00
Required: 1
COVER, WATER INLET
$15.55
You save $2.75
2
Yamaha Motors
Water Inlet Cover6G5-45215-00-00
Required: 1
COVER, WATER INLET
$15.55
You save $2.75
3
Yamaha Motors
Countersunk Screw90152-05M07-00
Required: 1
SCREW, COUNTERSUNK
Supersedes: 90142-05M03-00
$4.04
You save $0.71
4
Yamaha Motors
Self-Locking Nut90185-05904-00
Required: 1
NUT, NYLON
Supersedes: 90185-05002-00
In stock
5+ in stock
$1.91
You save $0.34
5
Yamaha Motors
Seal Damper Guide663-45376-00-00
Required: 1
GUIDE, SEAL DAMPER
Supersedes: 663-45376-00-94
In stock
5+ in stock
$12.66
You save $2.24
In stock
5+ in stock
$11.69
You save $2.06
In stock
Only 2 remaining
$8.84
You save $1.56
8
Yamaha Motors
Bolt97095-10045-00
Required: 6
BOLT
Supersedes: 97395-10045-00
In stock
5+ in stock
$9.31
You save $1.64
9
Yamaha Motors
Spring Washer92990-10100-00
Required: 6
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.49
10
Yamaha Motors
HEX BOLT97095-10070-00
Required: 1
BOLT
Supersedes: 97395-10070-00
In stock
Only 1 remaining
$5.52
You save $0.97
11
Yamaha Motors
Spring Washer92990-10100-00
Required: 1
WASHER, SPRING
In stock
5+ in stock
$2.76
You save $0.49
In stock
5+ in stock
$19.76
You save $3.49
In stock
5+ in stock
$4.42
You save $0.78
14
Yamaha Motors
Water Seal Damper6E5-44365-01-00
Required: 1
.DAMPER, WATER SEAL 1
Supersedes: 6E5-44365-00-00
In stock
5+ in stock
$1.70
You save $0.30
15
Yamaha Motors
Water Pump Housing Cover6E5-44312-00-00
Required: 1
COVER, WATER PUMP HOUSING
In stock
5+ in stock
$2.98
You save $0.52
16
Yamaha Motors
Water Seal Damper6E5-44366-01-00
Required: 1
.DAMPER, WATER SEAL 2
Supersedes: 6E5-44366-00-00
In stock
5+ in stock
$1.19
You save $0.21
17
Yamaha Motors
Water Tube6E5-44361-00-00
Required: 1
TUBE, WATER 1
$40.76
You save $7.19
17
Yamaha Motors
Water Tube6E5-44361-20-00
Required: 1
TUBE, WATER 1
$50.36
You save $8.89
18
Yamaha Motors
Water Seal Damper6E5-44365-01-00
Required: 1
.DAMPER, WATER SEAL 1
Supersedes: 6E5-44365-00-00
In stock
5+ in stock
$1.70
You save $0.30
19
Yamaha Motors
Clamp90465-10098-00
Required: 2
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
20
Yamaha Motors
Clamp90465-10098-00
Required: 1
CLAMP
Supersedes: 90465-11M10-00
In stock
5+ in stock
$2.29
You save $0.41
21
Yamaha Motors
Spacer 16E5-45987-01-00
Required: 1
SPACER 1
Supersedes: 6E5-45987-00-00
$47.90
You save $8.45
In stock
5+ in stock
$40.59
You save $7.16
In stock
Only 1 remaining
$2.17
You save $0.38
In stock
Only 3 remaining
$17.17
You save $3.03
In stock
5+ in stock
$3.82
You save $0.68
26
Yamaha Motors
Aluminum Prop - 3 Blade 14.5x17RH Aluminum6G5-45947-01-00
Required: 1
PROPELLER (3X14-1/2"X17"-M)
Supersedes: 6G5-45947-01-98
$231.20
You save $40.80
26
Yamaha Motors
Aluminum Prop - 3 Blade 14.63x16RH Aluminum6G5-45952-00-00
Required: 1
PROPELLER (3X14-5/8"X16"-M)
Supersedes: 6G5-45952-00-98
$231.20
You save $40.80
26
Yamaha Motors
Propeller (3X15-1/4"X15"-M)6G5-45941-00-98
Required: 1
PROPELLER (3X15-1/4"X15"-M)
$231.20
You save $40.80
26
Yamaha Motors
Aluminum Prop - 3 Blade 14x19RH Aluminum6G5-45945-01-00
Required: 1
PROPELLER (3X14"X19"-M)
Supersedes: 6G5-45945-01-98
$231.20
You save $40.80
26
Yamaha Motors
Aluminum Prop - 3 Blade 13.5x23RH Aluminum6G5-45949-00-00
Required: 1
PROPELLER (3X13-1/2"X23"-M)
Supersedes: 6G5-45949-00-98
$231.20
You save $40.80
27
Yamaha Motors
Reflector Ring6G5-45986-00-94
Required: 1
REFLECTOR RING
$4.74
You save $0.84
28
Yamaha Motors
Rubber Damper Propeller6G5-45981-00-00
Required: 1
.DAMPER RUBBER, PROPELLER
$117.30
You save $20.70
29
Required: 1
PROPELLER (3X13-1/2""X23"")
Price unavailable
29
Yamaha Motors
Propeller (3X13-3/4"X19"-M2)6G5-45974-03-98
Required: 1
PROPELLER ASSY (3 X 13-3/4" X 19"-M)
Supersedes: 6G5-45974-02-98
$723.35
You save $127.65
29
Yamaha Motors
Painted Stainless Steel Prop - 3 Blade 13.75x17RH Stainless Steel6G5-45978-03-00
Required: 1
PROPELLER ASSY (3 X 13-3/4" X 17"-M)
Supersedes: 6G5-45978-02-98
$723.35
You save $127.65
29
Yamaha Motors
Propeller (3X13-3/8"X25"-M)6G5-45930-00-98
Required: 1
PROPELLER (3X13-3/8"X25"-M)
$539.20
You save $95.15
29
Yamaha Motors
Propeller (3X13-3/4"X21"-M)6G5-45972-02-98
Required: 1
PROPELLER (3X13-3/4"X21"-M)
$723.35
You save $127.65
30
Yamaha Motors
Rubber Damper Propeller6G5-45981-00-00
Required: 1
.DAMPER RUBBER, PROPELLER
$117.30
You save $20.70
31
Yamaha Motors
Prop - 3 Blade 14x28RH Stainless Steel6E5-45974-10-00
Required: 1
PROPELLER (3X14"X28"-P)
$651.95
You save $115.05
31
Yamaha Motors
Prop - 3 Blade 14x26RH Stainless Steel6E5-45978-10-00
Required: 1
PROPELLER (3X14"X26"-P)
$651.95
You save $115.05
31
Yamaha Motors
Prop - 3 Blade 14x24RH Stainless Steel6E5-45972-10-00
Required: 1
PROPELLER (3X14"X24"-P)
$651.95
You save $115.05
32
Yamaha Motors
Rubber Damper Propeller6G5-45981-00-00
Required: 1
.DAMPER RUBBER, PROPELLER
$117.30
You save $20.70
$63.20
You save $11.15
$32.73
You save $5.77
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
