All diagrams for this model

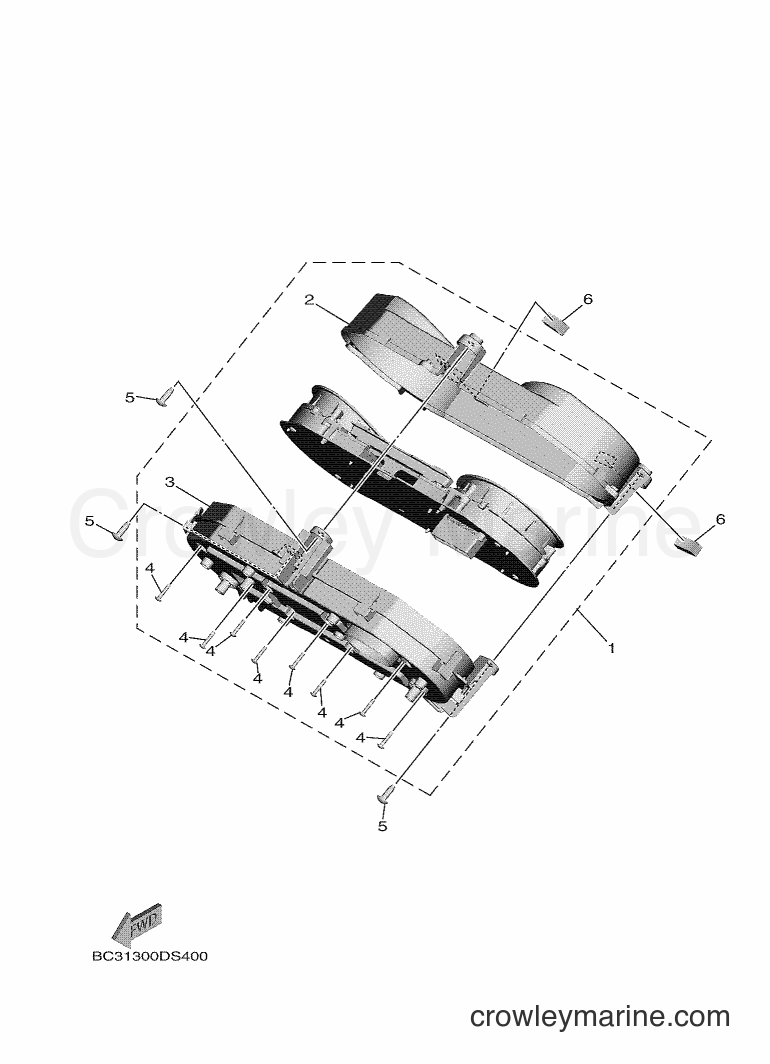

2018 Maxi-Scooter XP530E-A - XP530E-A (BV12) [060] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP530E-A (BV12) [060] - METER
Change View:
1
Required: 1
METER ASSY (MPH)
Price unavailable
1
Required: 1
METER ASSY (KM/H)
Price unavailable
2
Required: 1
. LENS, SPEEDOMETER
Price unavailable
3
Required: 1
. CASE, SPEEDOMETER LOWER
Price unavailable
Tapping Screw
4
Yamaha Motors
Tapping Screw97702-30016-00
Required: 8
. SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$1.00
$0.85
You save $0.15
More details
Tapping Screw
5
Yamaha Motors
Tapping Screw97702-50016-00
Required: 3
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
DAMPER
6
Yamaha Motors
DAMPER2C0-2847N-00-00
Required: 2
DAMPER 8
Cross Ship
Leaves in 2-5 days
$7.49
$6.37
You save $1.12
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
