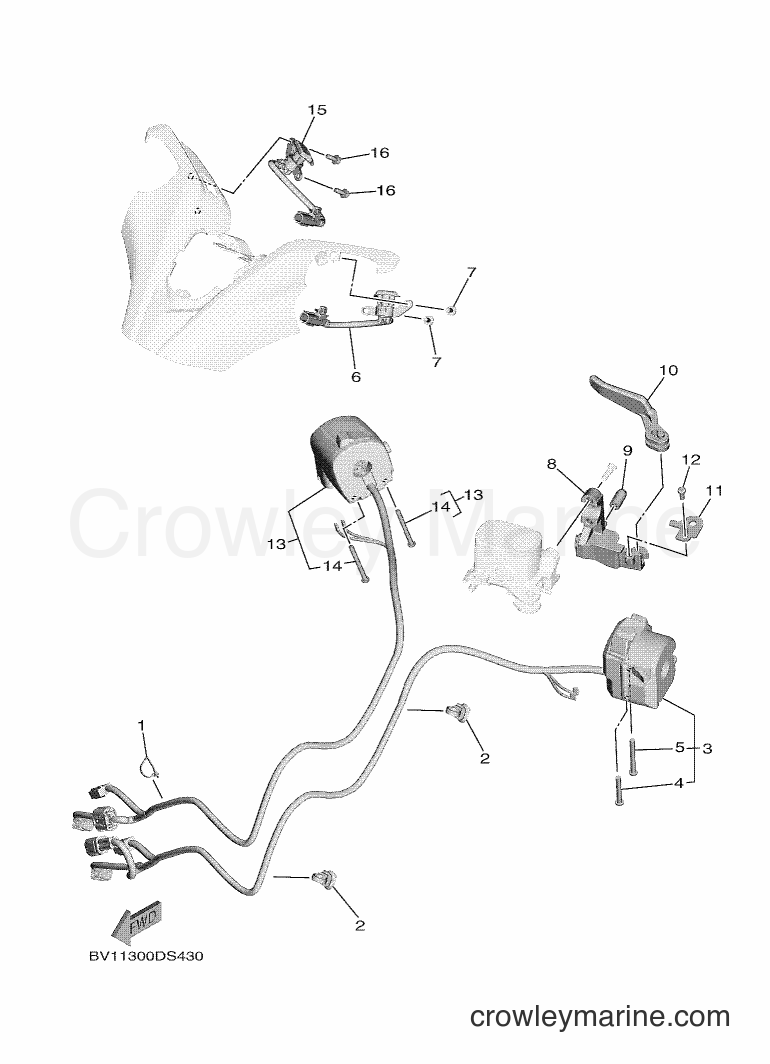

2018 Scooter XP530E-A - XP530E-A (BV12) [050] HANDLE SWITCH & LEVER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors XP530E-A (BV12) [050] - HANDLE SWITCH & LEVER
Change View:
Clamp
2
Yamaha Motors
Clamp90464-25009-00
Required: 2
CLAMP
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
SWITCH, HANDLE 5
Price unavailable
Pan Head Screw
4
Yamaha Motors
Pan Head Screw98507-05040-00
Required: 1
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
5
Required: 1
. SCREW, PAN HEAD
Price unavailable
6
Required: 1
SWITCH
Price unavailable
Flange Bolt
7
Yamaha Motors
Flange Bolt90105-05025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details
8
Required: 1
HOLDER, ADJUSTING
Price unavailable
Blind Plug
9
Yamaha Motors
Blind Plug5RB-13569-00-00
Required: 1
PLUG, BLIND
Cross Ship
Leaves in 2-5 days
$4.60
$3.91
You save $0.69
More details
Lever Lock Assembly
10
Yamaha Motors
Lever Lock Assembly5VU-83930-00-00
Required: 1
LEVER LOCK ASSY
Cross Ship
Leaves in 2-5 days
$50.99
$43.34
You save $7.65
More details
11
Required: 1
BRACKET, LEVER
Price unavailable
Pan Head Screw
12
Yamaha Motors
Pan Head Screw98517-05012-00
Required: 1
SCREW, PAN HEAD
Supersedes: 98507-05012-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
13
Required: 1
SWITCH, HANDLE 3
Price unavailable
Pan Screw
14
Yamaha Motors
Pan Screw98507-05050-00
Required: 2
. SCREW, PAN HEAD
Cross Ship
Leaves in 2-5 days
$2.35
$2.00
You save $0.35
More details
15
Required: 1
SWITCH
Price unavailable
Flange Bolt
16
Yamaha Motors
Flange Bolt90105-05025-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$1.15
$0.98
You save $0.17
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
