2018 Maxi-Scooter MXT850 - MXT850 (BD51) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

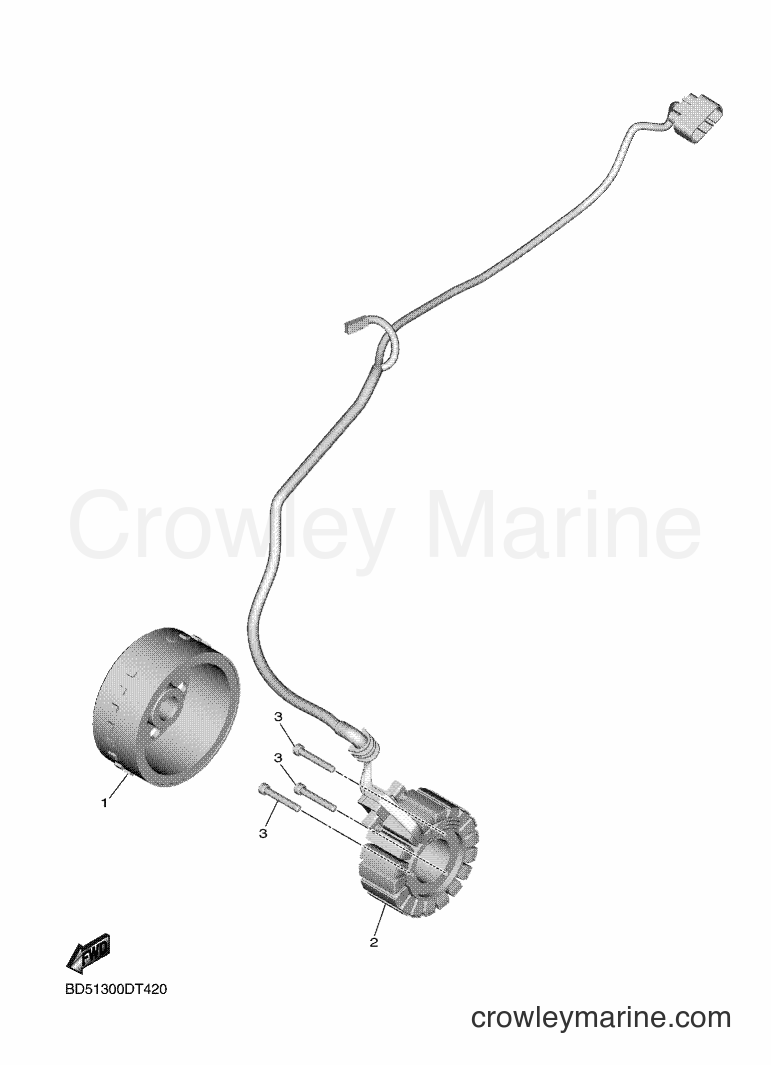

Yamaha Motors MXT850 (BD51) [010] - GENERATOR
Change View:
Rotor Assembly
1
Yamaha Motors
Rotor Assembly1RC-81450-01-00
Required: 1
ROTOR ASSY
Supersedes: 1RC-81450-00-00
Cross Ship
Leaves in 2-5 days
$294.99
$250.74
You save $44.25
More details
2
Required: 1
STATOR ASSY
Price unavailable
BOLT
3
Yamaha Motors
BOLT91312-06040-00
Required: 3
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06223-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
