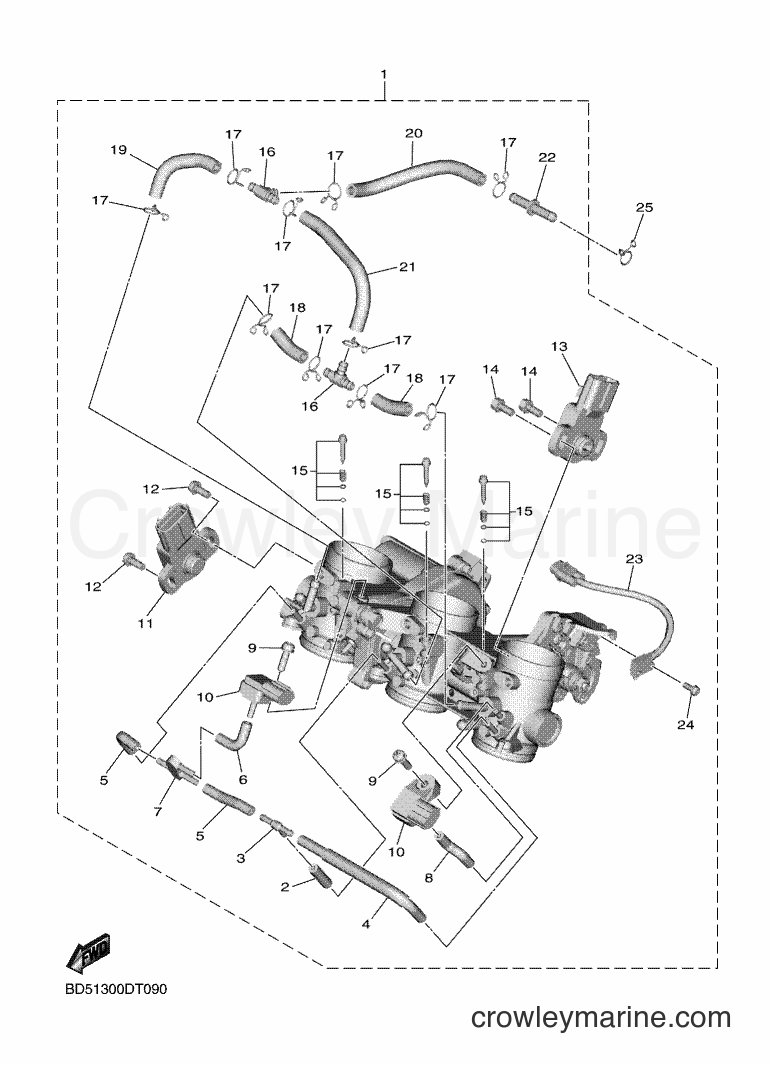

2018 Maxi-Scooter MXT850 - MXT850 (BD51) [010] INTAKE diagram
1
Required: 1
THROTTLE BODY ASSY
Price unavailable

2
Yamaha Motors
Vacuum Sensing Hose1RC-13544-00-00
Required: 1
. HOSE, VACUUM SENSING 2
$6.37
You save $1.12

3
Yamaha Motors
Joint Pipe68V-24376-00-00
Required: 1
. PIPE, JOINT 1
$15.60
You save $2.75

4
Yamaha Motors
Vacuum Sensing Hose1RC-13542-00-00
Required: 1
. HOSE, VACUUM SENSING 1
$18.69
You save $3.30
$7.22
You save $1.27
$12.32
You save $2.17
$28.89
You save $5.10
$5.52
You save $0.97
$3.57
You save $0.63

10
Yamaha Motors
Pressure Sensor1WS-82380-00-00
Required: 2
. SENSOR, PRESSURE
$178.49
You save $31.50

11
Yamaha Motors
Throttle Sensor Assembly13S-85885-01-00
Required: 1
. THROTTLE SENSOR ASSY
Supersedes: 13S-85885-00-00
$128.34
You save $22.65
$7.64
You save $1.35

13
Yamaha Motors
ACCELERATOR SENSOR1MC-85884-01-00
Required: 1
. ACCELERATOR SENSOR ASSY
Supersedes: 1MC-85884-00-00
$100.29
You save $17.70
$3.70
You save $0.65

15
Yamaha Motors
Pilot Screw Set2C0-14105-00-00
Required: 3
. PILOT SCREW SET
$32.29
You save $5.70
$8.07
You save $1.42
$7.22
You save $1.27
18
Required: 2
. PIPE
Price unavailable
$49.30
You save $8.70
20
Required: 1
. PIPE
Price unavailable
21
Required: 1
. PIPE
Price unavailable
$6.37
You save $1.12

23
Yamaha Motors
Switch Assembly1MC-81860-01-00
Required: 1
. SWITCH ASSY
Supersedes: 1MC-81860-00-00
$36.54
You save $6.45
$3.87
You save $0.68
$4.04
You save $0.71
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
