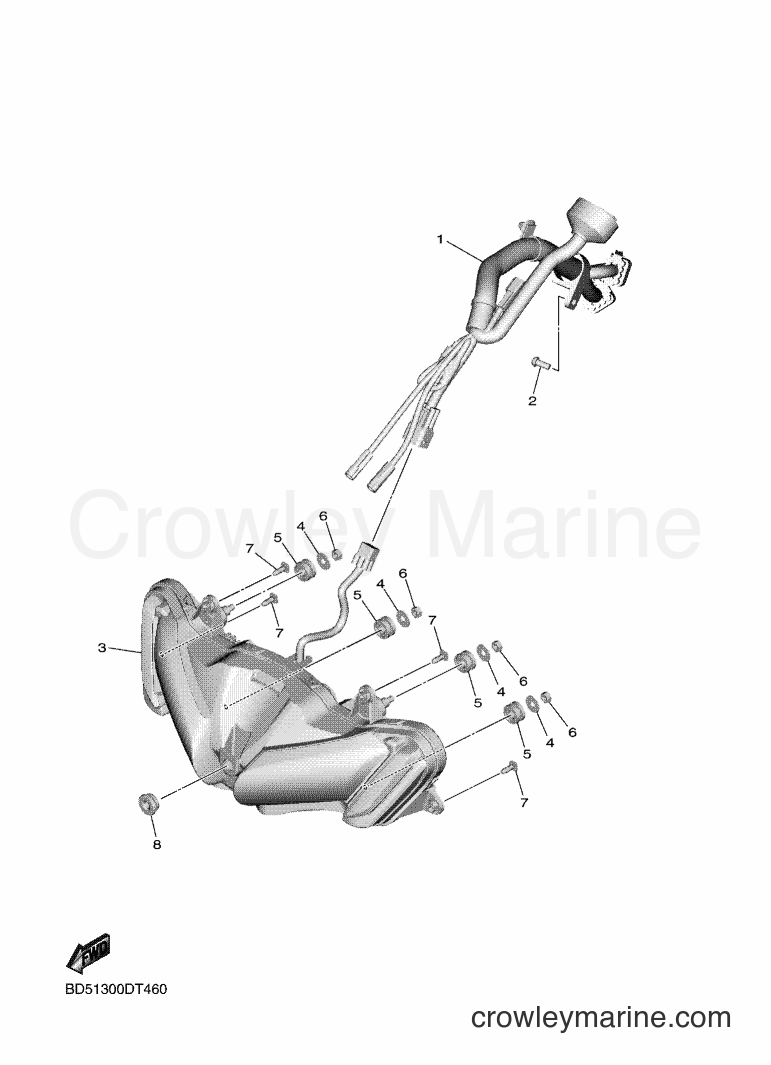

2018 Maxi-Scooter MXT850 - MXT850 (BD51) [060] HEADLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MXT850 (BD51) [060] - HEADLIGHT
Change View:
1
Required: 1
CORD, HEADLIGHT
Price unavailable
Button head bolt
2
Yamaha Motors
Button head bolt92012-06014-00
Required: 1
BOLT, BUTTON HEAD
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
3
Required: 1
HEADLIGHT ASSY
Price unavailable
Plate Washer
4
Yamaha Motors
Plate Washer90201-06057-00
Required: 4
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
DAMPER 2
5
Yamaha Motors
DAMPER 24XV-83513-00-00
Required: 4
DAMPER
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Tapping Screw
7
Yamaha Motors
Tapping Screw97702-50016-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details
GROMMET, WATER TUBE (UPPER)
8
Yamaha Motors
GROMMET, WATER TUBE (UPPER)90480-13014-00
Required: 1
GROMMET
Supersedes: 90480-13398-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
