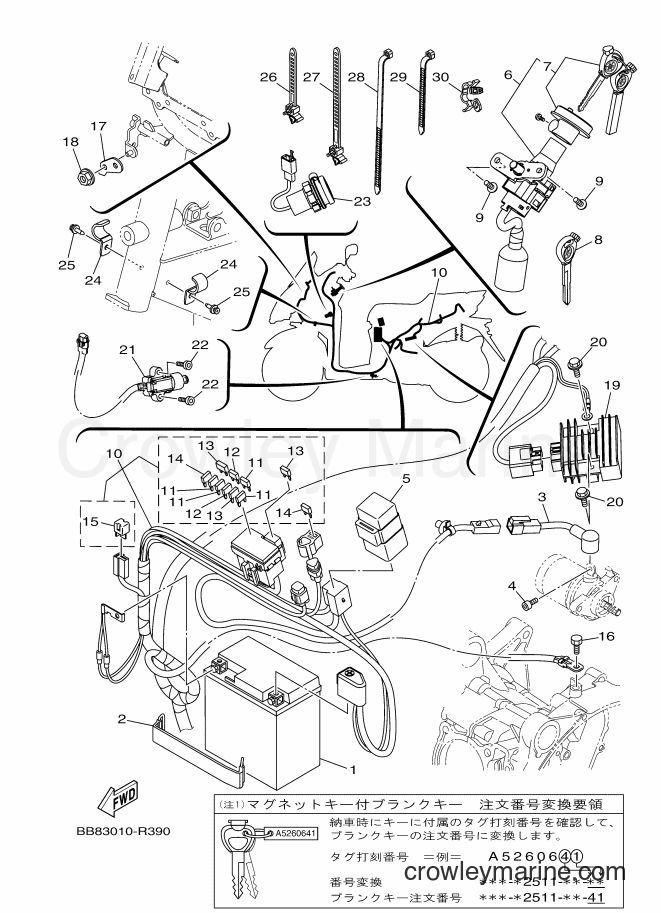

2018 Maxi-Scooter MWS150-A - MWS150-A (BB8B) [010] ELECTRICAL 1 diagram
![Yamaha Motors MWS150-A (BB8B) [010] - ELECTRICAL 1](https://cdn.crowleymarine.com/yamaha/H3gf3hf1.png)
1
Required: 1
BATTERY ASSY (GS YUASA YTZ7V)
Price unavailable
2
Required: 1
BAND, BATTERY
Price unavailable
3
Required: 1
WIRE, LEAD
Price unavailable
4
Yamaha Motors
Hexagon Socket Bolt91312-05008-00
Required: 1
BOLT, HEXAGON SOCKET HEAD
$7.22
You save $1.27
5
Required: 1
STARTER RELAY ASSY
Price unavailable
6
Required: 1
MAIN SWITCH COMP.
Price unavailable
7
Required: 1
. SHUTTER & BLANK KEY
Price unavailable
8
Required: 1
BLANK KEY
Price unavailable
9
Required: 2
BOLT,HEX. SOCKET BUTTON
Price unavailable
10
Required: 1
WIRE HARNESS ASSY
Price unavailable
11
Required: 4
. FUSE (7.5A)
Price unavailable
12
Required: 2
. FUSE (15A)
Price unavailable
13
Required: 3
. FUSE (30A)
Price unavailable
14
Required: 2
. FUSE (2A)
Price unavailable
$21.24
You save $3.75
$1.70
You save $0.30
17
Required: 1
HOLDER
Price unavailable
In stock
Only 1 remaining
$2.21
You save $0.39
19
Yamaha Motors
Rectifier and Regulator2GS-H1960-01-00
Required: 1
RECTIFIER & REGULATOR ASSY
$181.04
You save $31.95
20
Required: 2
BOLT, FLANGE
Price unavailable
21
Required: 1
SWITCH, SIDE STAND
Price unavailable
22
Yamaha Motors
Socket Bolt91317-05016-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-05011-00
$3.02
You save $0.53
23
Yamaha Motors
TERMINAL COMPBB8-H254B-00-00
Required: 1
TERMINAL COMP.
$30.59
You save $5.40
24
Required: 2
CLAMP
Price unavailable
In stock
Only 4 remaining
$1.44
You save $0.26
26
Required: 4
CLAMP
Price unavailable
27
Required: 1
CLAMP
Price unavailable
28
Required: 1
CLAMP
Price unavailable
29
Yamaha Motors
Clamp90464-15195-00
Required: 6
CLAMP
Supersedes: 90464-13073-00
$3.75
You save $0.66
$1.91
You save $0.34
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
