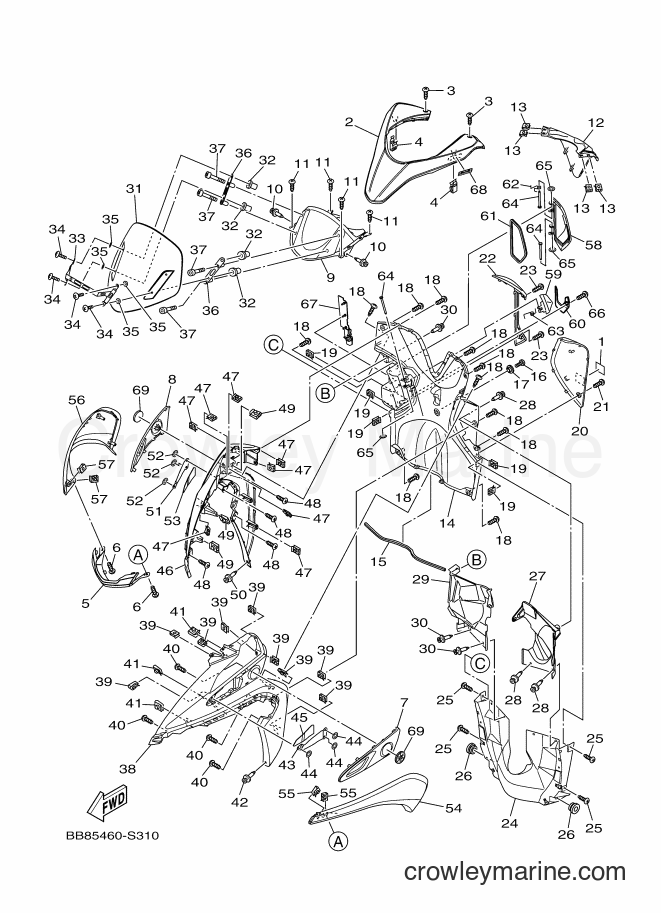

2017 Maxi-Scooter MWS150-A - MWS150-A (BB85) [010] LEG SHIELD diagram
![Yamaha Motors MWS150-A (BB85) [010] - LEG SHIELD](https://cdn.crowleymarine.com/yamaha/xYJoClZB.png)
1
Required: 1
LABEL, WARNING
Price unavailable
2
Required: 1
PANEL, FRONT
Price unavailable
3
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
4
Required: 2
HOOK
Price unavailable
5
Required: 1
PANEL, FRONT 2
Price unavailable
6
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
7
Required: 1
PANEL 1
Price unavailable
8
Required: 1
PANEL 2
Price unavailable
9
Required: 1
VISOR
Price unavailable
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
11
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
12
Required: 1
LEG SHIELD 2
Price unavailable
-50%
13
Yamaha Motors
Spring Nut90183-05042-00
Required: 4
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
14
Required: 1
LEG SHIELD 1
Price unavailable
15
Required: 1
DAMPER, PLATE
Price unavailable
$8.92
You save $1.57
17
Required: 1
COLLAR
Price unavailable
18
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 11
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
-50%
19
Yamaha Motors
Spring Nut90183-05042-00
Required: 5
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
20
Required: 1
COVER 1
Price unavailable
21
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
22
Required: 1
COVER 2
Price unavailable
23
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 2
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
24
Required: 1
PANEL, INNER 1
Price unavailable
25
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
26
Required: 2
GROMMET
Price unavailable
27
Required: 1
PANEL, INNER 2
Price unavailable
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
29
Required: 1
PANEL, INNER 3
Price unavailable
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
31
Required: 1
WINDSHIELD
Price unavailable
32
Required: 4
NUT
Price unavailable
33
Required: 1
BRACKET, NUMBER PLATE
Price unavailable
$8.07
You save $1.42
35
Required: 4
WASHER, PLATE
Price unavailable
36
Required: 2
STAY 2
Price unavailable
-50%
37
Yamaha Motors
HEX SOCKET HEAD BOLT90110-06138-00
Required: 4
BOLT,HEX.SOCKET HEAD
Supersedes: 91317-06030-00
In stock
Only 2 remaining
$3.25
You save $3.25
38
Required: 1
BODY, COWLING
Price unavailable
-50%
39
Yamaha Motors
Spring Nut90183-05042-00
Required: 9
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
40
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
41
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 3
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
43
Required: 1
GRILL, AIR OUTLET 1
Price unavailable
44
Yamaha Motors
Spring Nut90183-06008-00
Required: 3
NUT, SPRING
Supersedes: 90183-06815-00
$8.07
You save $1.42
45
Required: 1
DAMPER, PLATE 1
Price unavailable
46
Required: 1
BODY, COWLING 2
Price unavailable
-50%
47
Yamaha Motors
Spring Nut90183-05042-00
Required: 8
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
48
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 4
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
49
Yamaha Motors
Spring Nut (4ES)90183-06069-00
Required: 3
NUT, SPRING
Supersedes: 90183-06800-00
In stock
Only 2 remaining
$6.37
You save $1.12
-50%
In stock
Only 4 remaining
$0.85
You save $0.85
51
Required: 1
GRILL, AIR OUTLET 2
Price unavailable
52
Yamaha Motors
Spring Nut90183-06008-00
Required: 3
NUT, SPRING
Supersedes: 90183-06815-00
$8.07
You save $1.42
53
Required: 1
DAMPER, PLATE 2
Price unavailable
54
Required: 1
MOLE 1
Price unavailable
-50%
55
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
56
Required: 1
MOLE 2
Price unavailable
-50%
57
Yamaha Motors
Spring Nut90183-05042-00
Required: 2
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
58
Required: 1
LID
Price unavailable
59
Required: 1
KNOB, 1
Price unavailable
60
Required: 1
PLATE
Price unavailable
61
Required: 1
DAMPER, PLATE
Price unavailable
62
Required: 1
SPRING
Price unavailable
63
Required: 1
SPRING 2
Price unavailable
64
Required: 3
PIN
Price unavailable
$0.81
You save $0.14
66
Yamaha Motors
Truss Head Tapping Screw97707-50016-00
Required: 1
SCREW, TRUSS HEAD TAPPING
In stock
Only 4 remaining
$1.57
You save $0.28
67
Required: 1
MOLD, LEG SHIELD
Price unavailable
68
Required: 1
EMBLEM 3D
Price unavailable
69
Required: 2
EMBLEM, 1
Price unavailable
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
