All diagrams for this model

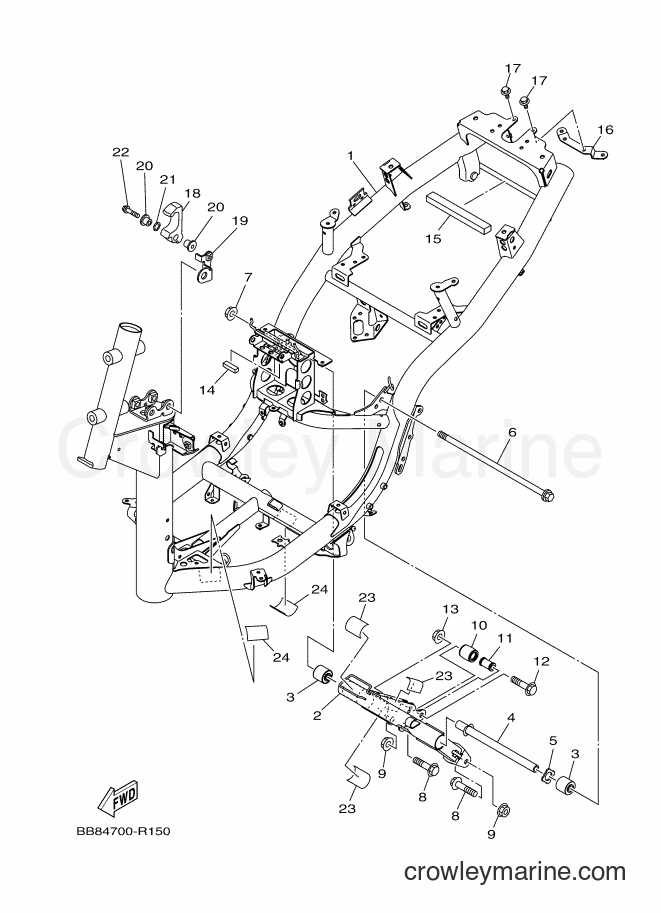

2017 Maxi-Scooter MWS150-A - MWS150-A (BB85) [010] FRAME diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MWS150-A (BB85) [010] - FRAME
Change View:
1
Required: 1
FRAME COMP.
Price unavailable
2
Required: 1
ENGINE BRACKET COMP.
Price unavailable
3
Required: 2
BUSH 1
Price unavailable
4
Required: 1
SPACER
Price unavailable
5
Required: 1
DAMPER
Price unavailable
6
Required: 1
SHAFT, PIVOT
Price unavailable
Self Locking Nut
7
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
Flange Bolt
8
Yamaha Motors
Flange Bolt90105-10283-00
Required: 2
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Self Locking Nut
9
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 2
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
10
Required: 1
STOPPER, MAIN STAND
Price unavailable
11
Required: 1
COLLAR
Price unavailable
Flange Bolt
12
Yamaha Motors
Flange Bolt90105-10283-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
Self Locking Nut
13
Yamaha Motors
Self Locking Nut95602-10200-00
Required: 1
NUT, U FLANGE
Cross Ship
Leaves in 2-5 days
$2.70
$2.29
You save $0.41
More details
14
Required: 1
DAMPER, PLATE
Price unavailable
15
Required: 1
DAMPER, PLATE
Price unavailable
16
Required: 1
BRACKET, TAILLIGHT
Price unavailable
95817-06010-00
17
Yamaha Motors
95817-06010-0095812-06010-00
Required: 2
BOLT, FLANGE
Supersedes: 95802-06010-00
Cross Ship
Leaves in 2-5 days
$3.20
$2.72
You save $0.48
More details
18
Required: 1
HOOK 1
Price unavailable
19
Required: 1
STAY 1
Price unavailable
20
Required: 2
COLLAR
Price unavailable
Wave Washer
21
Yamaha Motors
Wave Washer90206-10036-00
Required: 1
WASHER, WAVE
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Flange Bolt
22
Yamaha Motors
Flange Bolt95812-06030-00
Required: 1
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$2.15
$1.83
You save $0.32
More details
23
Required: 3
SEAL
Price unavailable
24
Required: 2
SEAL
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
