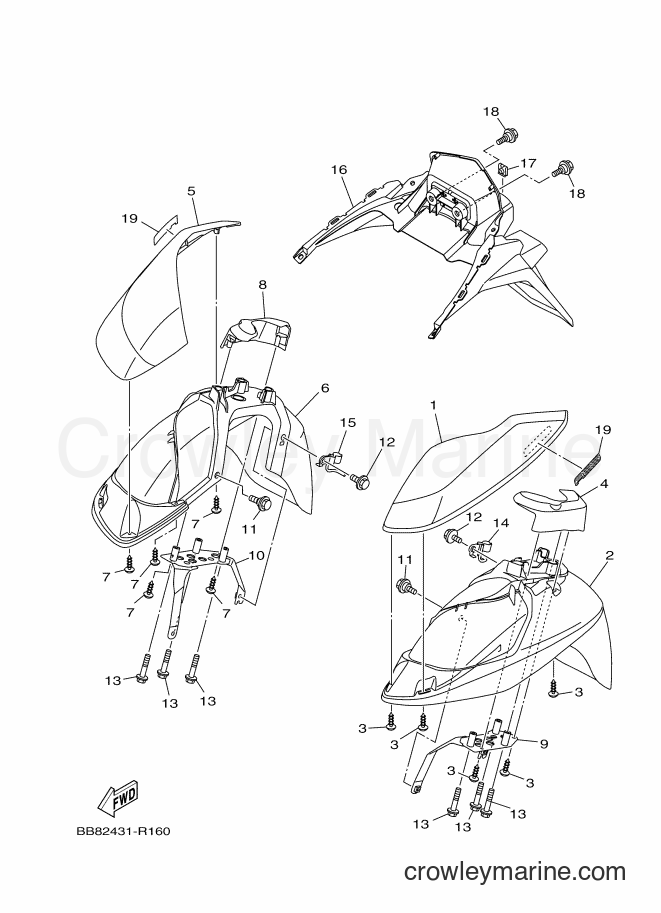

2017 Maxi-Scooter MWS150-A - MWS150-A (BB85) [010] FENDER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MWS150-A (BB85) [010] - FENDER
Change View:
1
Required: 1
FENDER, OVER 1
Price unavailable
2
Required: 1
FENDER, INNER
Price unavailable
Tapping Screw
3
Yamaha Motors
Tapping Screw97707-40014-00
Required: 5
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
4
Required: 1
FENDER, OVER 3
Price unavailable
5
Required: 1
FENDER, OVER 2
Price unavailable
6
Required: 1
FENDER, INNER 2
Price unavailable
Tapping Screw
7
Yamaha Motors
Tapping Screw97707-40014-00
Required: 5
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
8
Required: 1
FENDER, OVER 3
Price unavailable
9
Required: 1
STAY, FENDER 1
Price unavailable
10
Required: 1
STAY, FENDER 2
Price unavailable
BOLT
11
Yamaha Motors
BOLT90109-06887-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
Flange Bolt
13
Yamaha Motors
Flange Bolt95812-06035-00
Required: 6
BOLT, FLANGE
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details
14
Required: 1
HOLDER,WIRE 1
Price unavailable
15
Required: 1
HOLDER, WIRE 2
Price unavailable
16
Required: 1
FENDER, REAR
Price unavailable
Spring Nut
17
Yamaha Motors
Spring Nut90183-04039-00
Required: 1
NUT, SPRING
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
BOLT
18
Yamaha Motors
BOLT90109-06887-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$2.00
$1.70
You save $0.30
More details
19
Required: 2
EMBLEM
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
