2016 Maxi-Scooter YP250 - YP250 (4D97) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

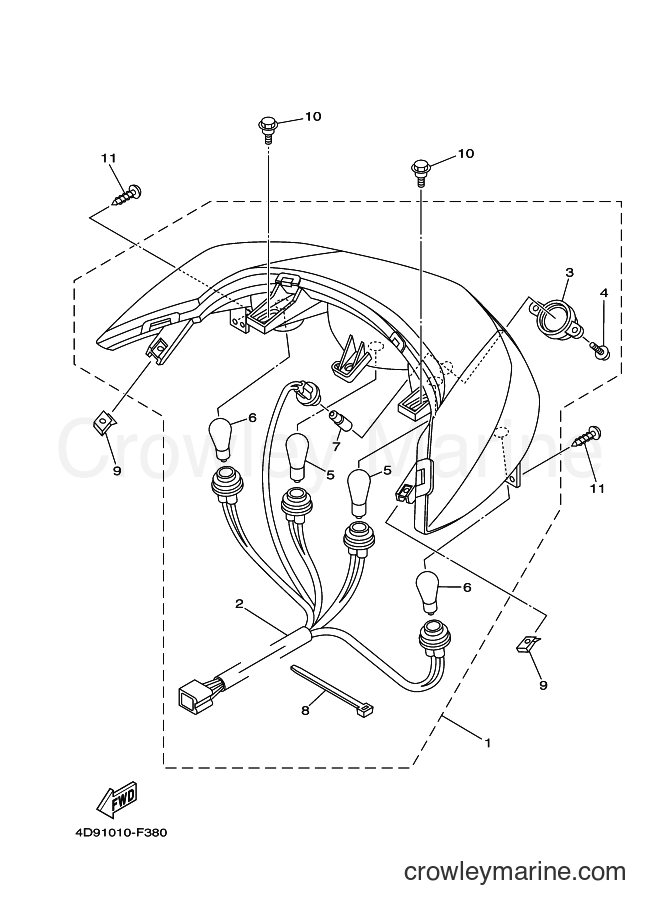

Yamaha Motors YP250 (4D97) [010] - TAILLIGHT
Change View:
1
Required: 1
TAILLIGHT UNIT ASSY
Price unavailable
2
Required: 1
. SOCKET CORD ASSY
Price unavailable
3
Required: 1
. LENS, LICENCE LIGHT
Price unavailable
4
Required: 2
. SCREW
Price unavailable
5
Required: 2
. BULB (12V P21/5W)
Price unavailable
6
Required: 2
. BULB, FLASHER (12V PY21W)
Price unavailable
7
Required: 1
. BULB (12V W5W)
Price unavailable
8
Required: 1
. CLAMP, CORD
Price unavailable
BOLT
10
Yamaha Motors
BOLT90109-063F1-00
Required: 2
BOLT
Cross Ship
Leaves in 2-5 days
$3.10
$2.63
You save $0.47
More details
Tapping Screw
11
Yamaha Motors
Tapping Screw97702-50016-00
Required: 2
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.60
$2.21
You save $0.39
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
