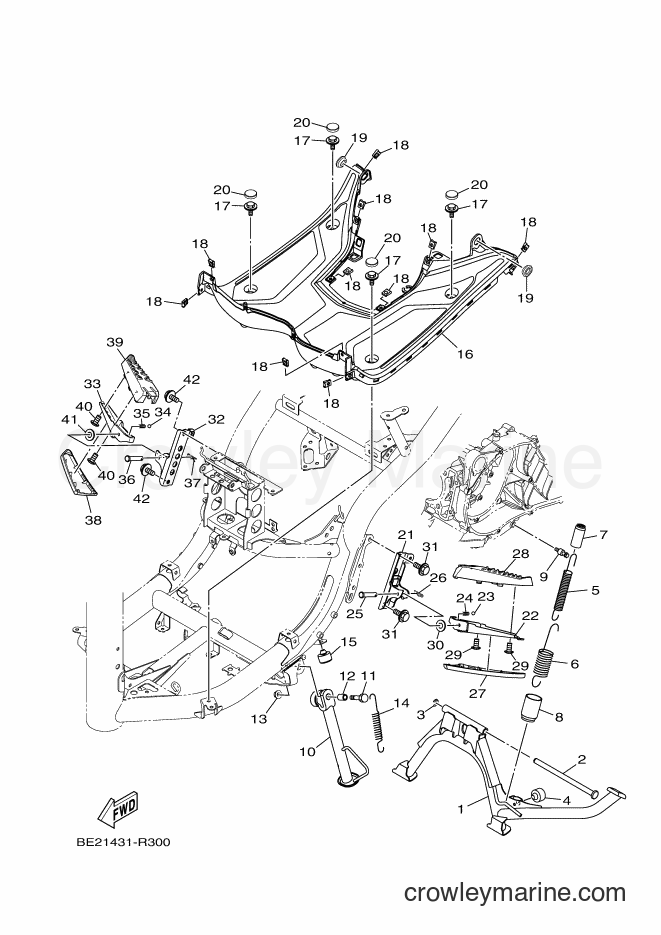

2016 Maxi-Scooter MWS150-C - MWS150-C (BE21) [010] STAND & FOOTREST diagram
![Yamaha Motors MWS150-C (BE21) [010] - STAND & FOOTREST](https://cdn.crowleymarine.com/yamaha/UTL9dMfZ.png)
1
Required: 1
STAND, MAIN
Price unavailable
2
Required: 1
SHAFT, MAIN STAND
Price unavailable
3
Yamaha Motors
Circle Clip99001-08600-00
Required: 1
CIRCLIP
Supersedes: 99002-08600-00
In stock
Only 4 remaining
$7.59
You save $1.90
4
Required: 1
STOPPER
Price unavailable
5
Required: 1
SPRING, TENSION
Price unavailable
6
Required: 1
SPRING, TENSION
Price unavailable
7
Required: 1
HOSE 3
Price unavailable
8
Required: 1
HOSE 1
Price unavailable
9
Required: 1
HOOK
Price unavailable
10
Required: 1
STAND, SIDE
Price unavailable
11
Required: 1
BOLT
Price unavailable
12
Required: 1
COLLAR
Price unavailable
$2.72
You save $0.48
14
Yamaha Motors
Tension Spring90506-18008-00
Required: 1
SPRING, TENSION
$14.87
You save $2.62
15
Required: 1
STOPPER, MAIN STAND
Price unavailable
16
Required: 1
BOARD, FOOTREST
Price unavailable
17
Yamaha Motors
Bolt with Washer90119-06051-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
-50%
18
Yamaha Motors
Spring Nut90183-05042-00
Required: 10
NUT, SPRING
Supersedes: 90183-05807-00
In stock
Only 1 remaining
$0.50
You save $0.50
19
Yamaha Motors
Grommet90480-01558-00
Required: 2
GROMMET
Supersedes: 90480-01868-00
$3.95
You save $0.70
20
Required: 4
CAP 1
Price unavailable
21
Required: 1
BRACKET, FOOTREST 1
Price unavailable
22
Required: 1
PLATE 1
Price unavailable
23
Required: 1
BALL
Price unavailable
24
Yamaha Motors
Compression Spring90501-12743-00
Required: 1
SPRING, COMPRESSION
$4.67
You save $0.82
25
Required: 1
PIN, CLEVIS
Price unavailable
$1.74
You save $0.31
27
Required: 1
COVER, FOOTREST
Price unavailable
28
Required: 1
COVER, REAR FOOTREST
Price unavailable
29
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
$8.07
You save $1.42
$0.72
You save $0.13
32
Required: 1
BRACKET, FOOTREST 2
Price unavailable
33
Required: 1
PLATE 2
Price unavailable
34
Required: 1
BALL
Price unavailable
35
Yamaha Motors
Compression Spring90501-12743-00
Required: 1
SPRING, COMPRESSION
$4.67
You save $0.82
36
Required: 1
PIN, CLEVIS
Price unavailable
$1.74
You save $0.31
38
Required: 1
COVER, FOOTREST
Price unavailable
39
Required: 1
COVER, REAR FOOTREST
Price unavailable
40
Yamaha Motors
Truss Screw97707-50014-00
Required: 2
SCREW, TRUSS HEAD TAPPING
$8.07
You save $1.42
$8.07
You save $1.42
$0.72
You save $0.13
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
