All diagrams for this model

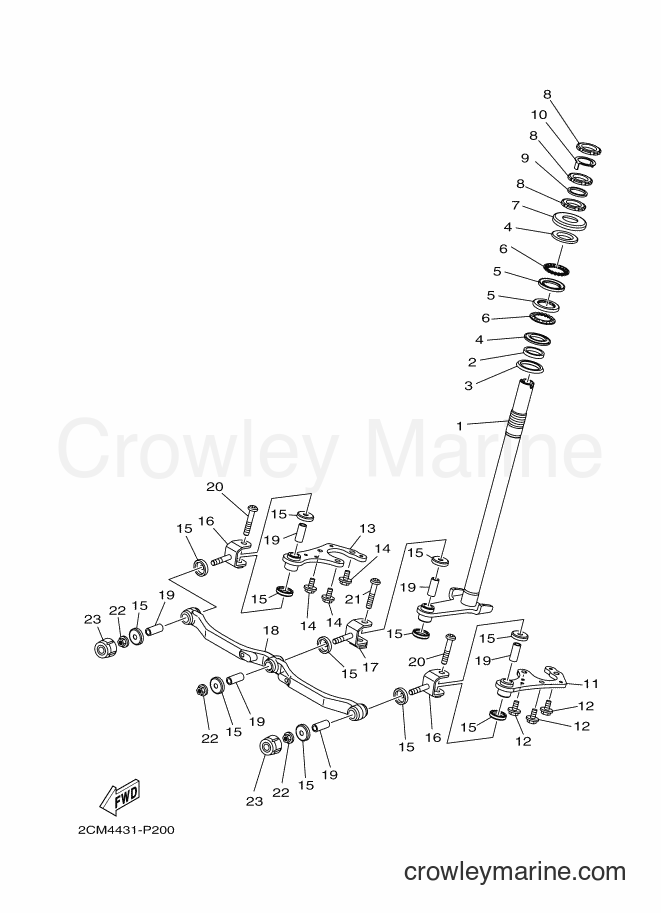

2015 Maxi-Scooter MW125A - MW125A (2CM4) [010] STEERING 2 diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors MW125A (2CM4) [010] - STEERING 2
Change View:
1
Required: 1
STEERING COLUMN ASSY
Price unavailable
2
Required: 1
COLLAR 2
Price unavailable
3
Required: 1
SEAL, DUST
Price unavailable
4
Required: 2
RACE, BALL 1
Price unavailable
5
Required: 2
RACE, BALL 2
Price unavailable
6
Required: 2
RETAINER, BALL BEARING
Price unavailable
7
Required: 1
COVER, BALL RACE 2
Price unavailable
Nut
8
Yamaha Motors
Nut90179-25810-00
Required: 3
NUT
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Plate Washer
9
Yamaha Motors
Plate Washer90202-26142-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
10
Required: 1
WASHER, SPECIAL
Price unavailable
11
Required: 1
ARM ASSY 1
Price unavailable
12
Required: 3
BOLT, FLANGE
Price unavailable
13
Required: 1
ARM ASSY 2
Price unavailable
14
Required: 3
BOLT, FLANGE
Price unavailable
15
Required: 12
COVER, DUST SEAL 1
Price unavailable
16
Required: 2
JOINT 1
Price unavailable
17
Required: 1
JOINT 1
Price unavailable
18
Required: 1
TIE ROD ASSY
Price unavailable
19
Required: 6
COLLAR 1
Price unavailable
BOLT,HEX. SOCKET BUT
20
Yamaha Motors
BOLT,HEX. SOCKET BUT90111-08076-00
Required: 2
BOLT,HEX. SOCKET BUTTON
Cross Ship
Leaves in 2-5 days
$4.50
$3.82
You save $0.68
More details
21
Required: 1
BOLT,HEX. SOCKET BUTTON
Price unavailable
Self Locking Nut
22
Yamaha Motors
Self Locking Nut90185-08169-00
Required: 3
NUT, SELF-LOCKING
Supersedes: 95607-08200-00
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
23
Required: 2
CAP 1
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
