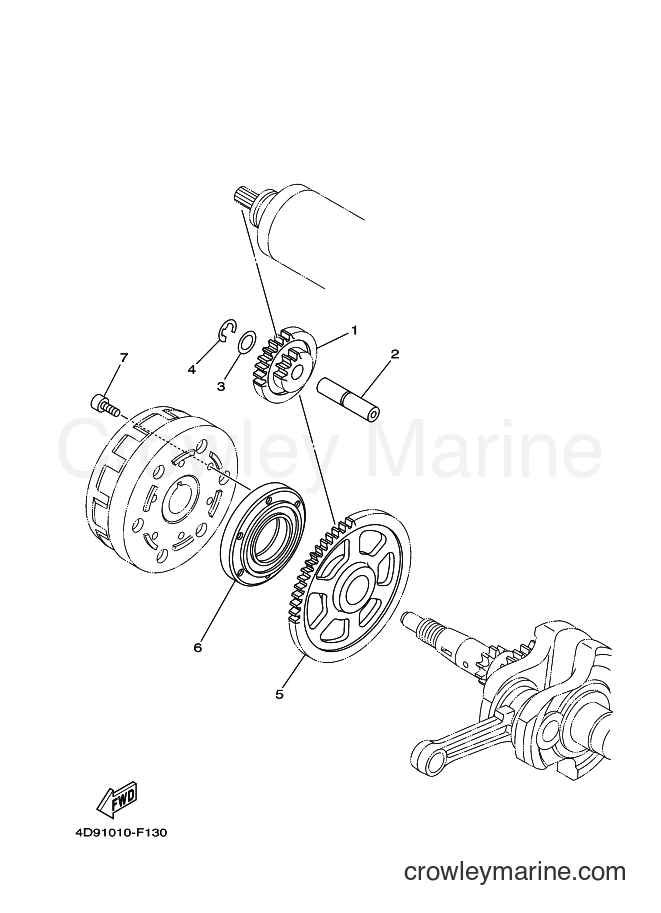

2014 Maxi-Scooter YP250 - YP250 (4D96) [010] STARTER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors YP250 (4D96) [010] - STARTER
Change View:
1
Required: 1
GEAR, IDLER 1
Price unavailable
2
Required: 1
SHAFT 1
Price unavailable
Plate Washer
3
Yamaha Motors
Plate Washer90201-12166-00
Required: 1
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$10.49
$8.92
You save $1.57
More details
Circlip
4
Yamaha Motors
Circlip99009-12400-00
Required: 1
CIRCLIP
Cross Ship
Leaves in 2-5 days
$3.59
$3.05
You save $0.54
More details
5
Required: 1
GEAR, IDLER 2
Price unavailable
6
Required: 1
STARTER ONE-WAY ASSY
Price unavailable
BOLT
7
Yamaha Motors
BOLT91312-06014-00
Required: 6
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06168-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
