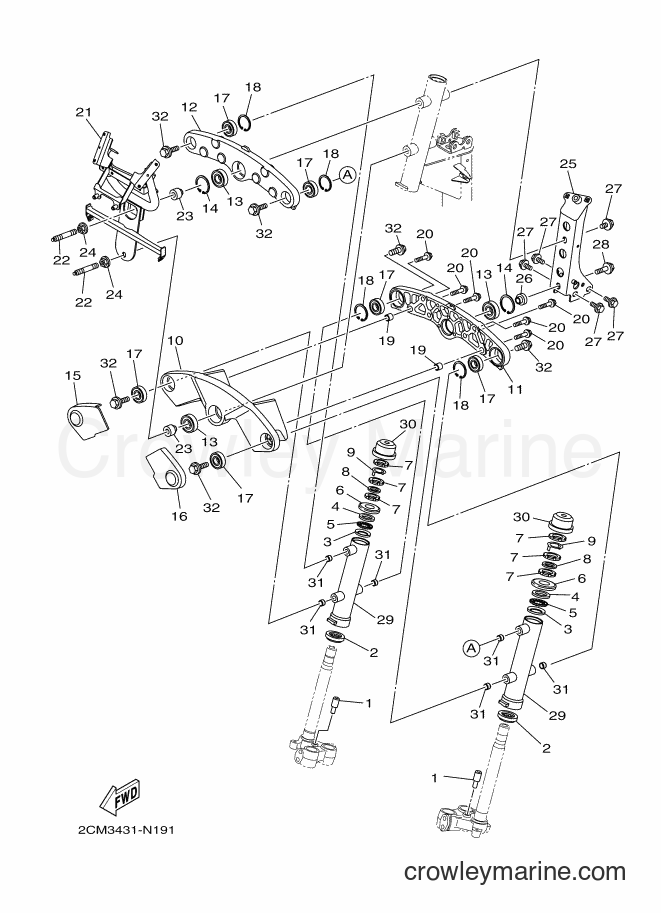

2014 Maxi-Scooter MW125 - MW125 (2CM3) [010] STEERING diagram
![Yamaha Motors MW125 (2CM3) [010] - STEERING](https://cdn.crowleymarine.com/yamaha/L7ieqF1U.png)
1
Required: 2
STOPPER, STEERING 1
Price unavailable
2
Required: 2
BEARING, STEERING UPPER
Price unavailable
3
Required: 2
RACE, BALL 2
Price unavailable
4
Required: 2
RACE, BALL 1
Price unavailable
5
Required: 2
RETAINER, BALL BEARING
Price unavailable
6
Required: 2
COVER, BALL RACE 2
Price unavailable
$8.92
You save $1.57
8
Yamaha Motors
Plate Washer90202-26142-00
Required: 2
WASHER, PLATE
$8.92
You save $1.57
9
Required: 2
WASHER, SPECIAL
Price unavailable
10
Required: 1
ARM 1
Price unavailable
11
Required: 1
ARM 2
Price unavailable
12
Required: 1
ARM 2
Price unavailable
13
Required: 3
BEARING
Price unavailable
$8.92
You save $1.57
15
Required: 1
CAP
Price unavailable
16
Required: 1
CAP
Price unavailable
$39.94
You save $7.05
$8.07
You save $1.42
$5.52
You save $0.97
$2.98
You save $0.52
21
Required: 1
PLATE, FRONT ARM
Price unavailable
22
Required: 2
BOLT, STUD
Price unavailable
23
Required: 2
COLLAR 2
Price unavailable
24
Yamaha Motors
SELF-LOCKING NUT95602-12200-00
Required: 2
NUT, SELF-LOCKING
$4.67
You save $0.82
25
Required: 1
PLATE, BACK UP
Price unavailable
26
Required: 1
COLLAR 1
Price unavailable
$8.07
You save $1.42
28
Yamaha Motors
Flange Bolt95817-12050-00
Required: 1
BOLT, FLANGE
Supersedes: 95812-12050-00
$4.67
You save $0.82
29
Required: 2
STEERING HEAD PIPE COMPLETE
Price unavailable
30
Required: 2
COVER, BALL RACE 1
Price unavailable
31
Required: 6
COLLAR
Price unavailable
$5.52
You save $0.97
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
