2014 Maxi-Scooter CP250 - CP250 (1B7E) [010] TAILLIGHT diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status

Click on

to see part

Ships Now

Ships Later

Out of Stock

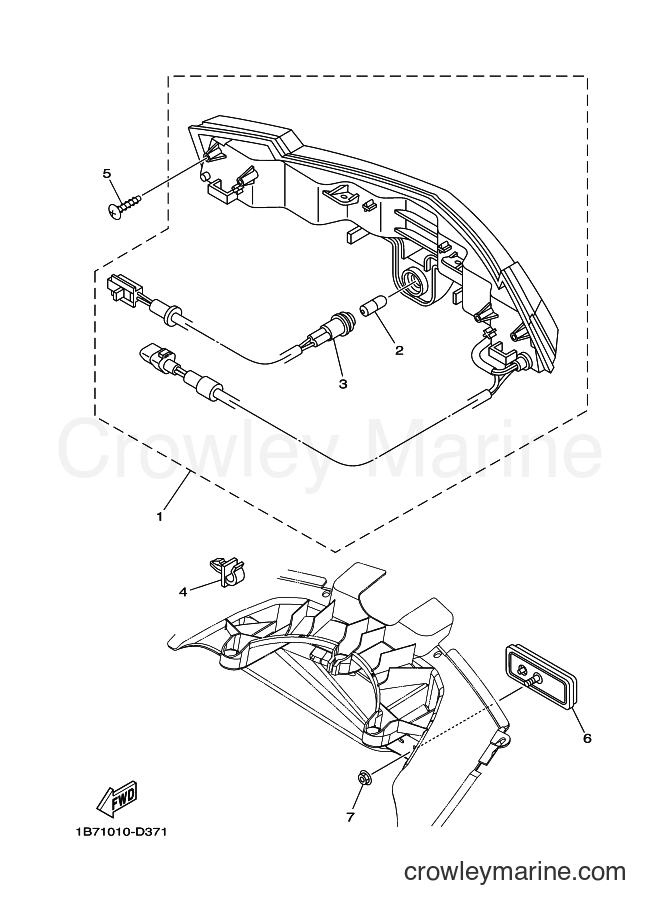

Yamaha Motors CP250 (1B7E) [010] - TAILLIGHT

Change View:

Yamaha Motors

TAIL LIGHT UNIT ASSEMBLY1B7-84710-00-00

Required: 1

TAILLIGHT UNIT ASSY

~~$386.99~~

$328.94

You save $58.05

More details

Yamaha Motors

BULB (12V-5W)4SV-84347-00-00

Required: 1

. BULB (12V-5W)

Supersedes: 5DM-84347-00-00

~~$9.49~~

$8.07

You save $1.42

More details

Yamaha Motors

CORD ASSEMBLY1B7-8473A-00-00

Required: 1

. CORD ASSY

~~$25.99~~

$22.09

You save $3.90

CLAMP

~~$8.49~~

$7.22

You save $1.27

More details

Yamaha Motors

Truss Head Tapping Screw97707-50016-00

Required: 4

SCREW, TRUSS HEAD TAPPING

In stock

Only 4 remaining

~~$1.85~~

$1.57

You save $0.28

More details

Yamaha Motors

3Y6-85130-01-003Y6-85130-00-00

Required: 1

REAR REFLECTOR ASSY

Supersedes: 3Y6-85130-02-00

~~$18.99~~

$16.14

You save $2.85

More details

Yamaha Motors

U Flange Nut95607-05200-00

Required: 1

NUT, S/L FLANGE

~~$10.49~~

$8.92

You save $1.57

More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.

Flat $9.95 Shipping on ALL parts orders
