All diagrams for this model

2014 Maxi-Scooter CP250 - CP250 (1B7E) [010] GENERATOR diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock

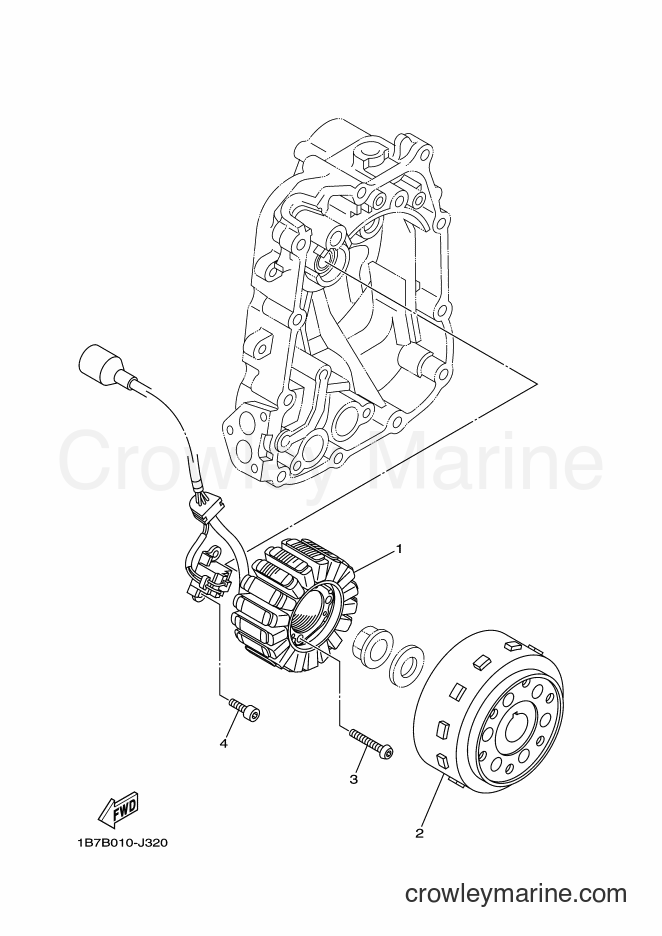

Yamaha Motors CP250 (1B7E) [010] - GENERATOR
Change View:
1
Required: 1
STATOR ASSY
Price unavailable
Rotor Assembly
2
Yamaha Motors
Rotor Assembly5RU-81450-01-00
Required: 1
ROTOR ASSY
Cross Ship
Leaves in 2-5 days
$274.99
$233.74
You save $41.25
More details
Screw (M8 X 40)
3
Yamaha Motors
Screw (M8 X 40)90149-06112-00
Required: 3
SCREW
Supersedes: 90149-06075-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
BOLT
4
Yamaha Motors
BOLT91312-06014-00
Required: 2
BOLT, HEXAGON SOCKET HEAD
Supersedes: 90110-06168-00
Cross Ship
Leaves in 2-5 days
$5.49
$4.67
You save $0.82
More details

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
