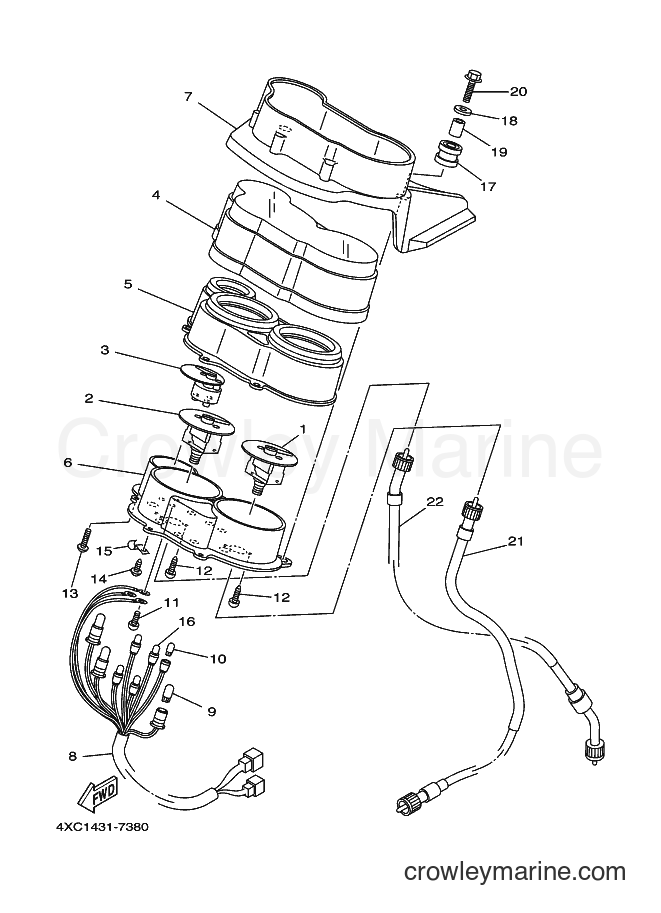

1997 Maxi-Scooter STR126 - STR126 (4XC1) [010] METER diagram

Reference numbers in this diagram are listed below — scroll down to order. ALL PARTS LISTED ARE GENUINE OEM.

Drag the image to move around or use the controls below. 🖨 Print this page

Product availability is updated on this page every 24 hours. Add an item to the shopping cart to view its current status
Click on
9
to see part
9
Ships Now
9
Ships Later
9
Out of Stock
Yamaha Motors STR126 (4XC1) [010] - METER
Change View:
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
1
Required: 1
SPEEDOMETER ASSY
Price unavailable
2
Required: 1
TACHOMETER ASSY
Price unavailable
2
Required: 1
TACHOMETER ASSY
Price unavailable
3
Required: 1
FUEL METER ASSY
Price unavailable
3
Required: 1
FUEL METER ASSY
Price unavailable
4
Required: 1
LENS, SPEEDOMETER
Price unavailable
5
Required: 1
REFLECTOR
Price unavailable
6
Required: 1
CASE, METER LOWER
Price unavailable
7
Required: 1
COVER, METER
Price unavailable
8
Required: 1
SOCKET CORD ASSY
Price unavailable
9
Required: 3
BULB
Price unavailable
10
Required: 4
BULB, METER
Price unavailable
Screw with Washer
11
Yamaha Motors
Screw with Washer90159-03102-00
Required: 3
SCREW, WITH WASHER
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Tapping Screw
12
Yamaha Motors
Tapping Screw90167-04021-00
Required: 4
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$2.30
$1.96
You save $0.35
More details
Tapping Screw
13
Yamaha Motors
Tapping Screw97702-40020-00
Required: 5
SCREW, TAPPING
Cross Ship
Leaves in 2-5 days
$0.70
$0.60
You save $0.10
More details
Tapping Screw
14
Yamaha Motors
Tapping Screw97707-40014-00
Required: 1
SCREW, TAPPING
Supersedes: 97702-40014-00
Cross Ship
Leaves in 2-5 days
$8.49
$7.22
You save $1.27
More details
Clamp
15
Yamaha Motors
Clamp4HC-83595-00-00
Required: 1
CLAMP
Cross Ship
Leaves in 2-5 days
$1.75
$1.49
You save $0.26
More details
Obsolete Yamaha Part
16
Yamaha Motors
Obsolete Yamaha Part42X-83517-00-00
Required: 1
BULB (12V-3W)
Cross Ship
Leaves in 2-5 days
$9.49
$8.07
You save $1.42
More details
17
Required: 2
DAMPER
Price unavailable
Plate Washer
18
Yamaha Motors
Plate Washer90201-06557-00
Required: 2
WASHER, PLATE
Cross Ship
Leaves in 2-5 days
$3.55
$3.02
You save $0.53
More details
COLLAR
19
Yamaha Motors
COLLAR90387-07598-00
Required: 2
COLLAR
Supersedes: 90387-06299-00
Cross Ship
Leaves in 2-5 days
$6.49
$5.52
You save $0.97
More details
21
Required: 1
SPEEDOMETER CABLE ASSY
Price unavailable
22
Required: 1
TACHOMETER CABLE ASSY
Price unavailable

Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
