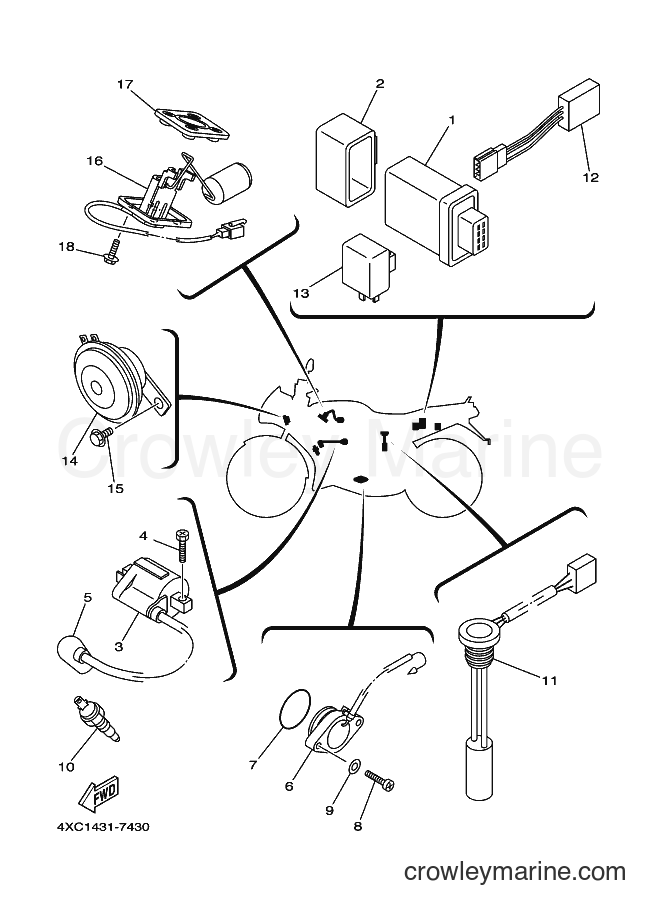

1997 Maxi-Scooter STR126 - STR126 (4XC1) [010] ELECTRICAL 2 diagram
![Yamaha Motors STR126 (4XC1) [010] - ELECTRICAL 2](https://cdn.crowleymarine.com/yamaha/hgK6opqM.png)
1
Required: 1
C.D.I. UNIT ASSY
Price unavailable
2
Required: 1
BAND
Price unavailable
3
Required: 1
IGNITION COIL ASSY
Price unavailable
4
Yamaha Motors
Hexagon Screw90153-06047-00
Required: 2
SCREW, HEXAGON
$0.42
You save $0.07
5
Yamaha Motors
Obsolete Yamaha Part8DG-82370-00-00
Required: 1
PLUG CAP ASSY
Supersedes: 81E-82370-30-00
$45.89
You save $8.10
6
Required: 1
NEUTRAL SWITCH ASSY
Price unavailable
7
Required: 1
O-RING
Price unavailable
8
Yamaha Motors
Pan Head Screw98507-05016-00
Required: 2
SCREW, PAN HEAD
In stock
Only 4 remaining
$1.53
You save $0.27
9
Yamaha Motors
Plate Washer92907-05600-00
Required: 2
WASHER, PLATE
$1.98
You save $-0.98
10
Yamaha Motors
Thermo Switch Assembly4BA-82560-00-00
Required: 1
THERMO SWITCH ASSY
$81.59
You save $14.40
11
Required: 1
OIL LEVEL GAUGE ASSY
Price unavailable
$39.94
You save $7.05
13
Required: 1
FLASHER RELAY ASSY
Price unavailable
14
Required: 1
HORN
Price unavailable
-50%
15
Yamaha Motors
Flange Bolt95817-06010-00
Required: 1
BOLT, FLANGE
Supersedes: 95807-06010-00
In stock
Only 4 remaining
$2.75
You save $2.75
16
Required: 1
SENDER UNIT ASSY, FUEL METER
Price unavailable
17
Required: 1
GASKET, SENDER UNIT
Price unavailable
18
Yamaha Motors
Bolt with Washer90119-05071-00
Required: 4
BOLT, WITH WASHER
$8.07
You save $1.42
Required quantity shown is the quantity used per assembly. Prices are based on a quantity of one and all items are sold individually.
